7 • Maintenance and servicing
44 / 70
80116-941_V24392
2023-03

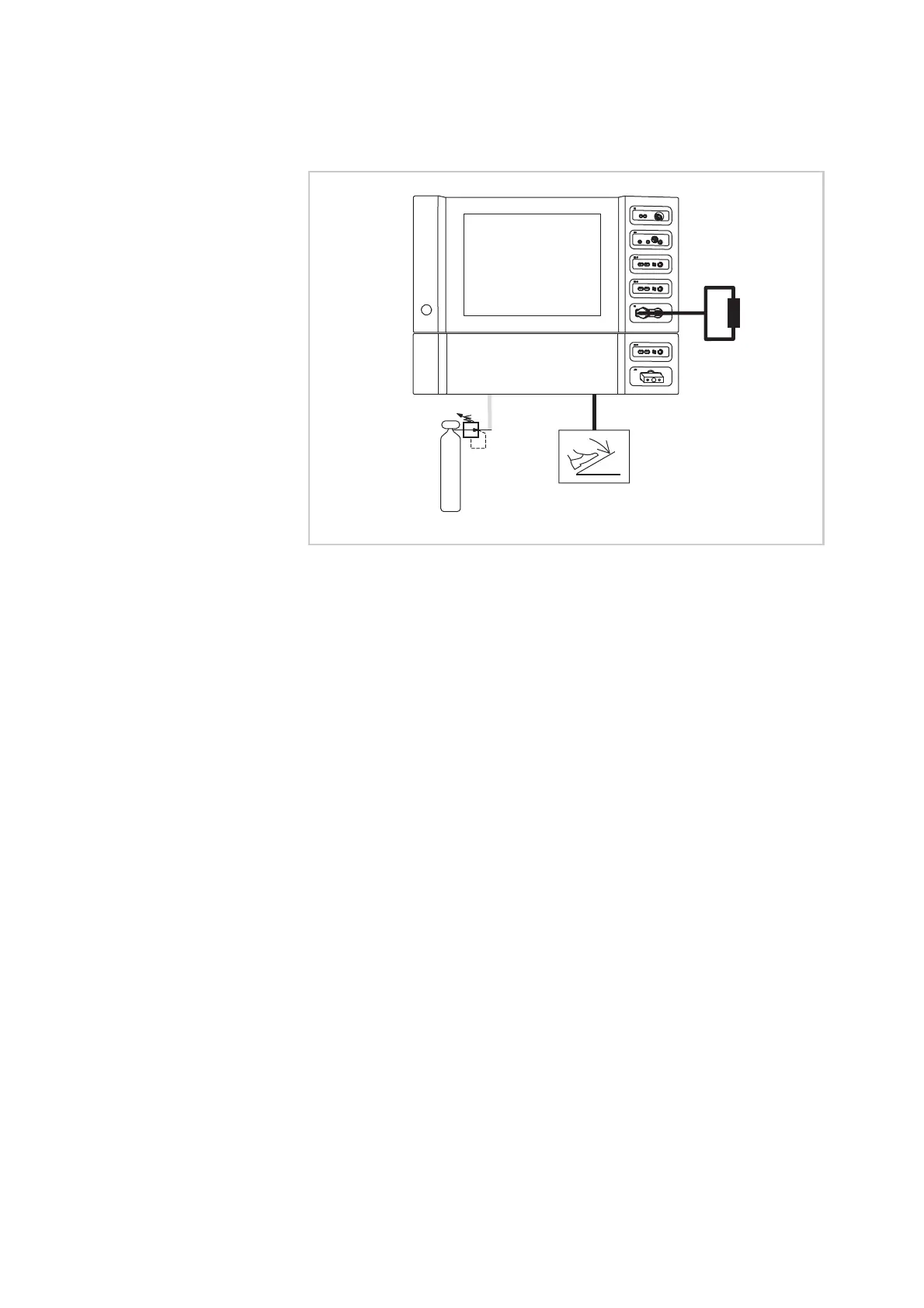

Bottle pressure detection Test setup
Fig. 7-3
• The test specimen is connected via the VIO 3 electrosurgical unit to the
power supply.
• The argon gas bottle is connected to the test specimen.
• The FiAPC test adapter is connected to the APC socket.
• The return electrode patient cable is connected to the return electrode
socket using the short-circuited return electrode adapter cable.
• The dual-pedal footswitch with ReMode is connected.
