7 • Maintenance and servicing
56 / 70
80116-941_V24392
2023-03

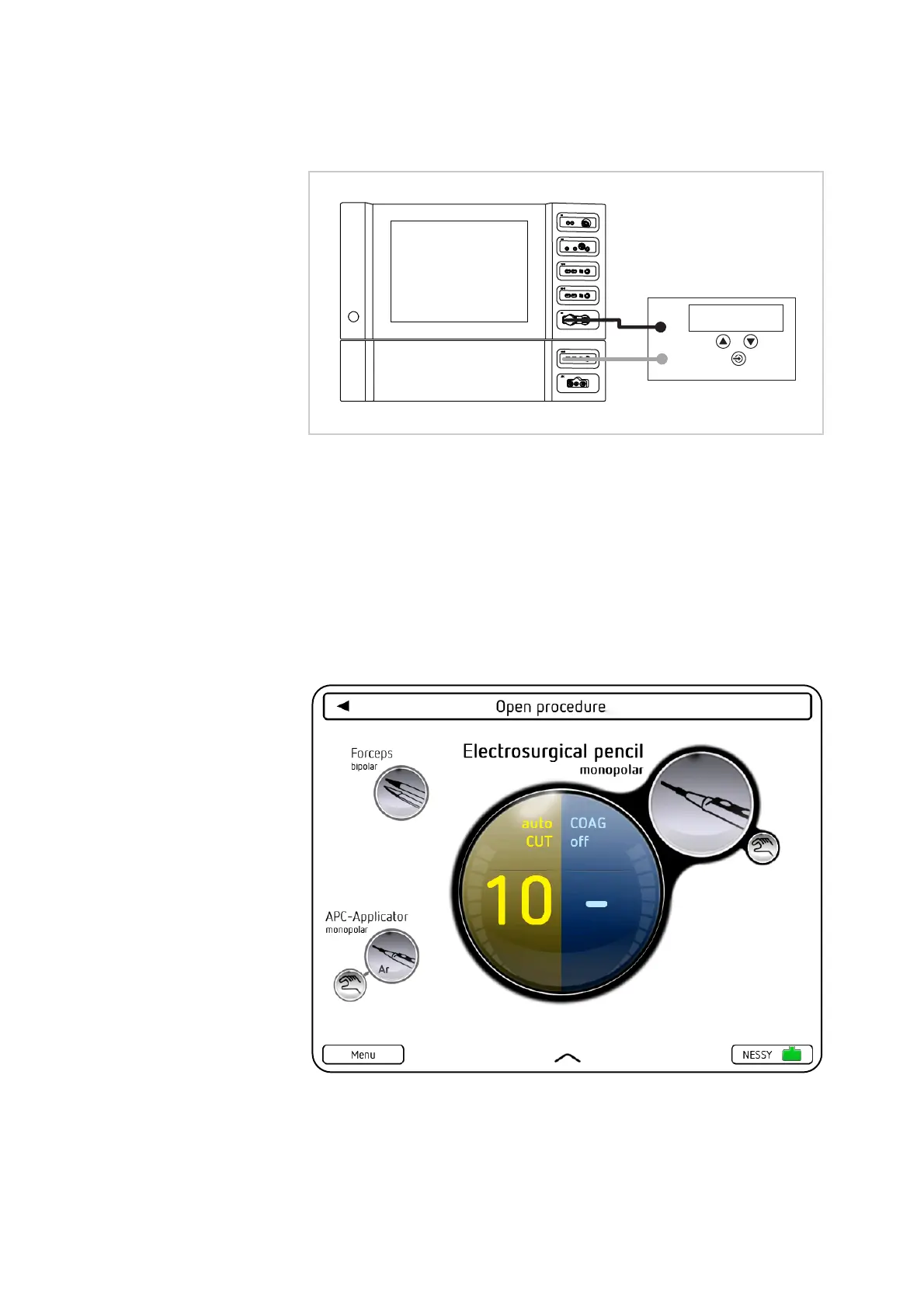

Test setup
Fig. 7-6
• The test specimen is connected via the VIO 3 electrosurgical unit to the
power supply.
• The levels of power are determined with the HF power meter. The
measuring cables are plugged into the HF power meter direct.
Test procedure
1. Set the test specimen to:
Electrode handle, monopolar – autoCUT – Effect 10
2. Set HF power meter to:
RL = 300 Ohm
3. Activate test specimen via CUT button on the electrode handle.
4. Determine and document the measured value. The tolerance range is
288 to 400 watts.
