7 • Maintenance and servicing
58 / 70
80116-941_V24392  2023-03

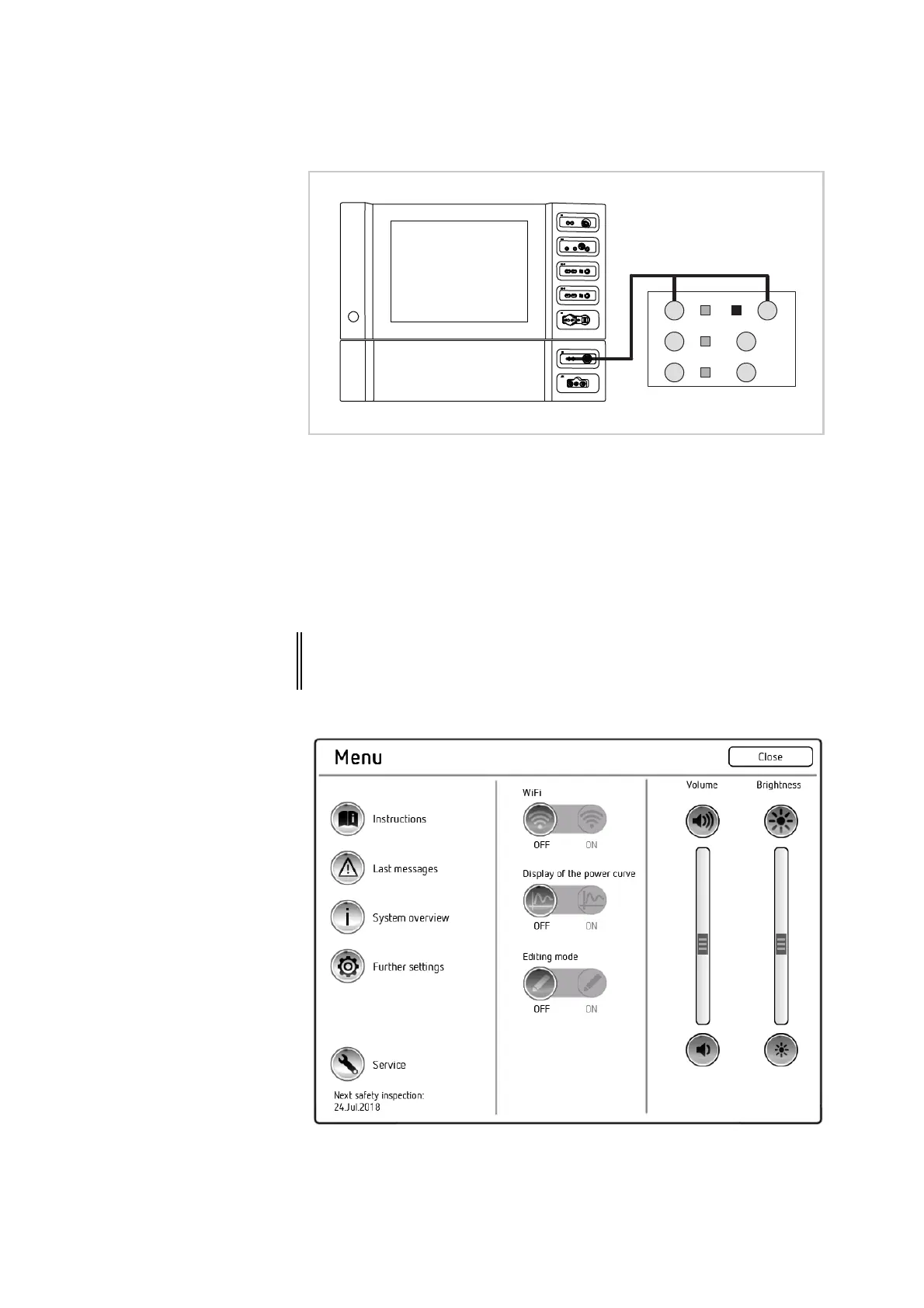

Test setup
Fig. 7-7
• The test specimen is connected via the VIO 3 electrosurgical unit to the
power supply.
• The bipolar socket is connected to the VIO test box using the bipolar
adapter cable via one of the bipolar cables mentioned above.
Test procedure
1. Call up the "Menu" screen.
2. Call up <Further settings>.
Testbox 20100-102
2
X X
X X
1
BP1 BP2
S1 S2
IMPORTANT! The test only works when AUTO START is permitted. In addition, the test
box response varies depending on the time period set for the start
delay.
