7 • Maintenance and servicing
66 / 70
80116-941_V24392
2023-03

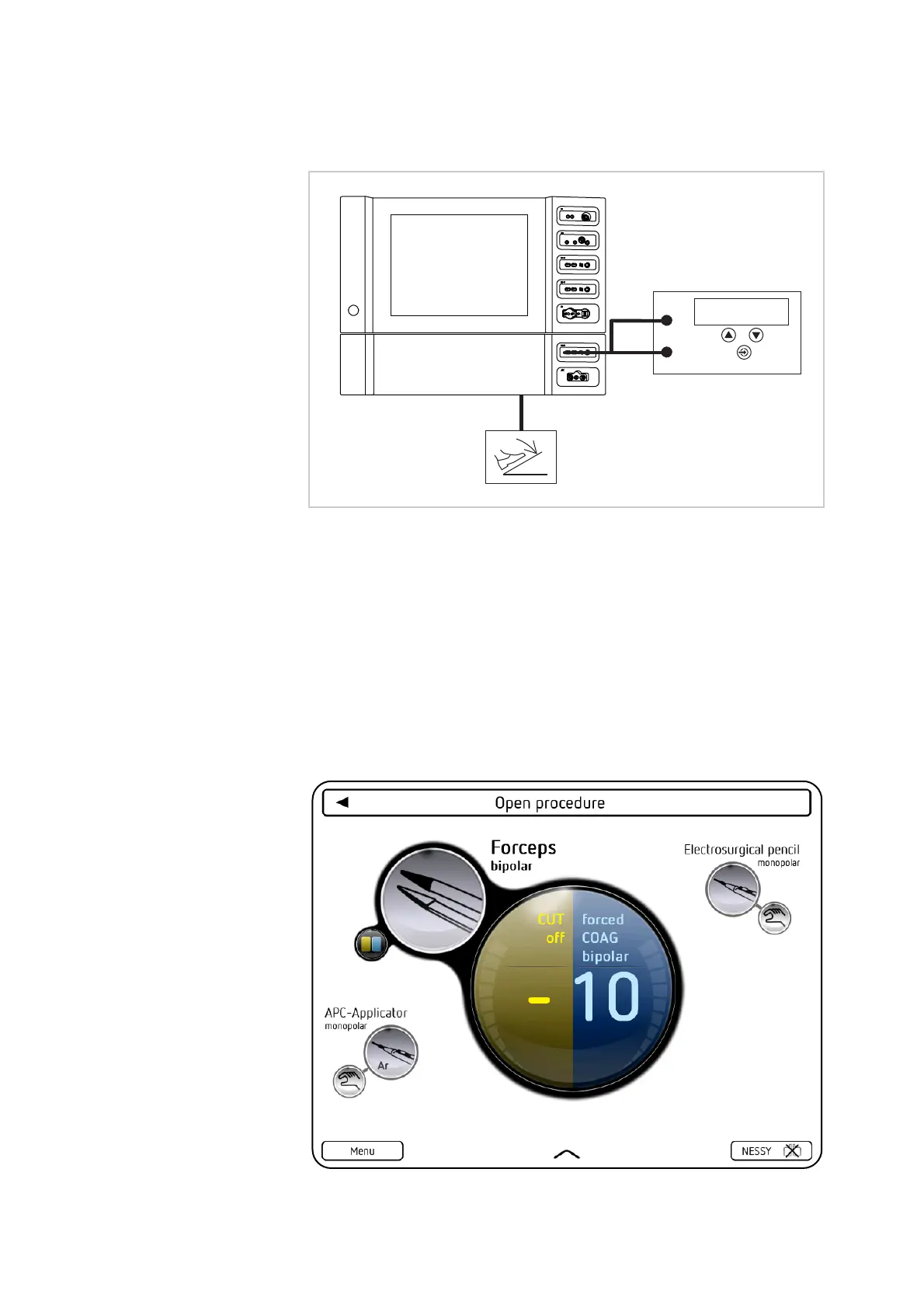

Test setup
Fig. 7-10
• The test specimen is connected via the VIO 3 electrosurgical unit to the
power supply.
• The levels of power are determined with the HF power meter. The
measuring cables are plugged into the HF power meter direct.
• The dual-pedal footswitch with ReMode is connected.
Test procedure
1. Set the test specimen to:
Forceps, bipolar – forcedCOAG, bipolar – Effect 10
