7 • Maintenance and servicing
68 / 70
80116-941_V24392  2023-03

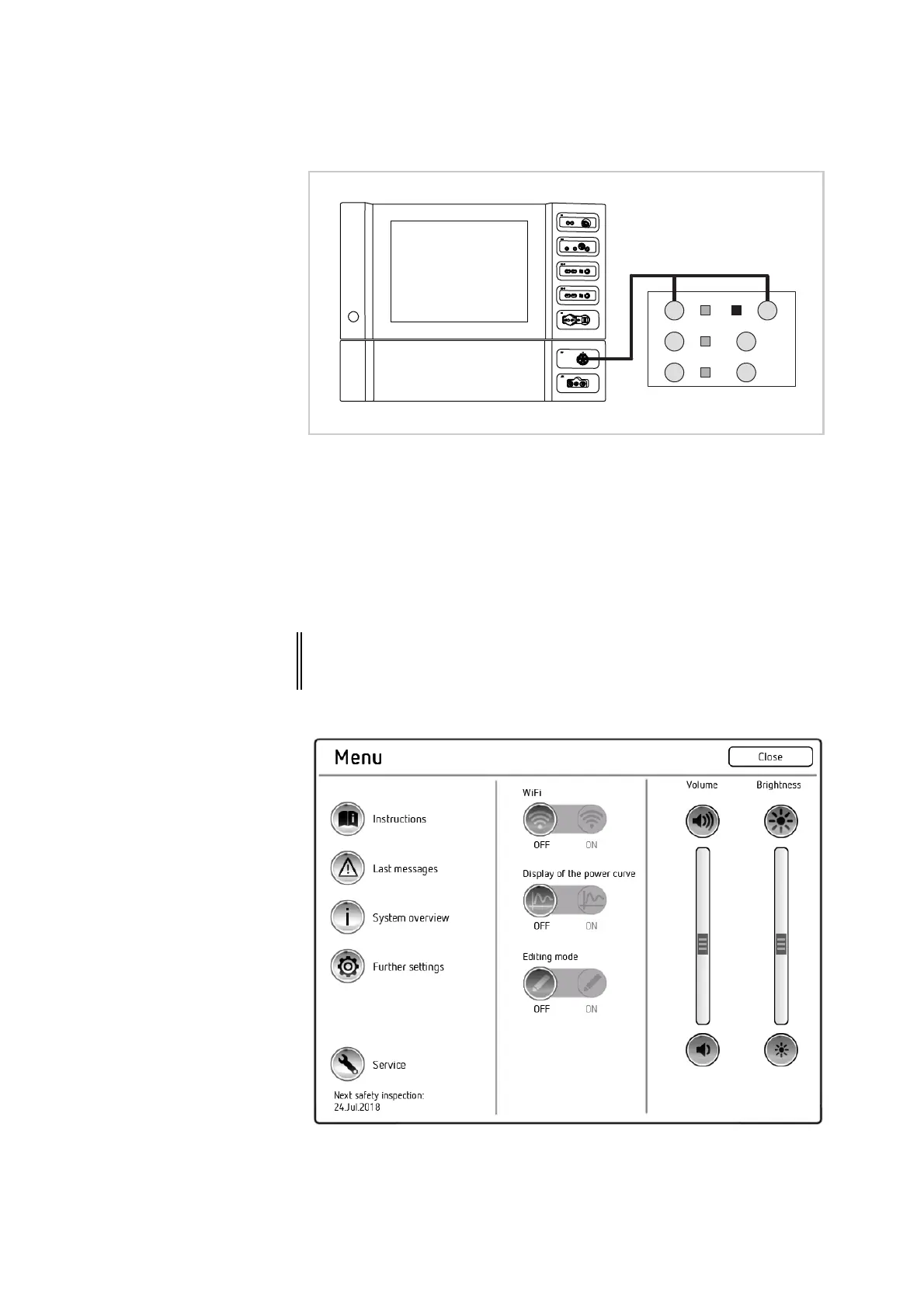

Test setup
Fig. 7-11
• The test specimen is connected via the VIO 3 electrosurgical unit to the
power supply.
• The MF socket is connected to the VIO test box using the BiClamp
measuring cable.
Test procedure
1. Call up the "Menu" screen.
2. Call up <Further settings>.
3. In the "Further settings" screen, scroll to the <Protected settings>
option.
Testbox 20100-102
2
X X
X X
1
BP1 BP2
S1 S2
IMPORTANT! The test only works when AUTO START is permitted. In addition, the test
box response varies depending on the time period set for the start
delay.
