Ercolina HB60 - Bending Die Installation

-21-
05/2021 HB60
Bending die assembly
Depending on tube to be bent, bending dies will be supplied with hex keys 40 or 50MM drive. Follow the
steps below for assembly:
● Make sure key of bending die shaft is compatible with bending die;
● Make sure bending die shaft screws are tightened
● Mount bending die in only possible position on bending die shaft.

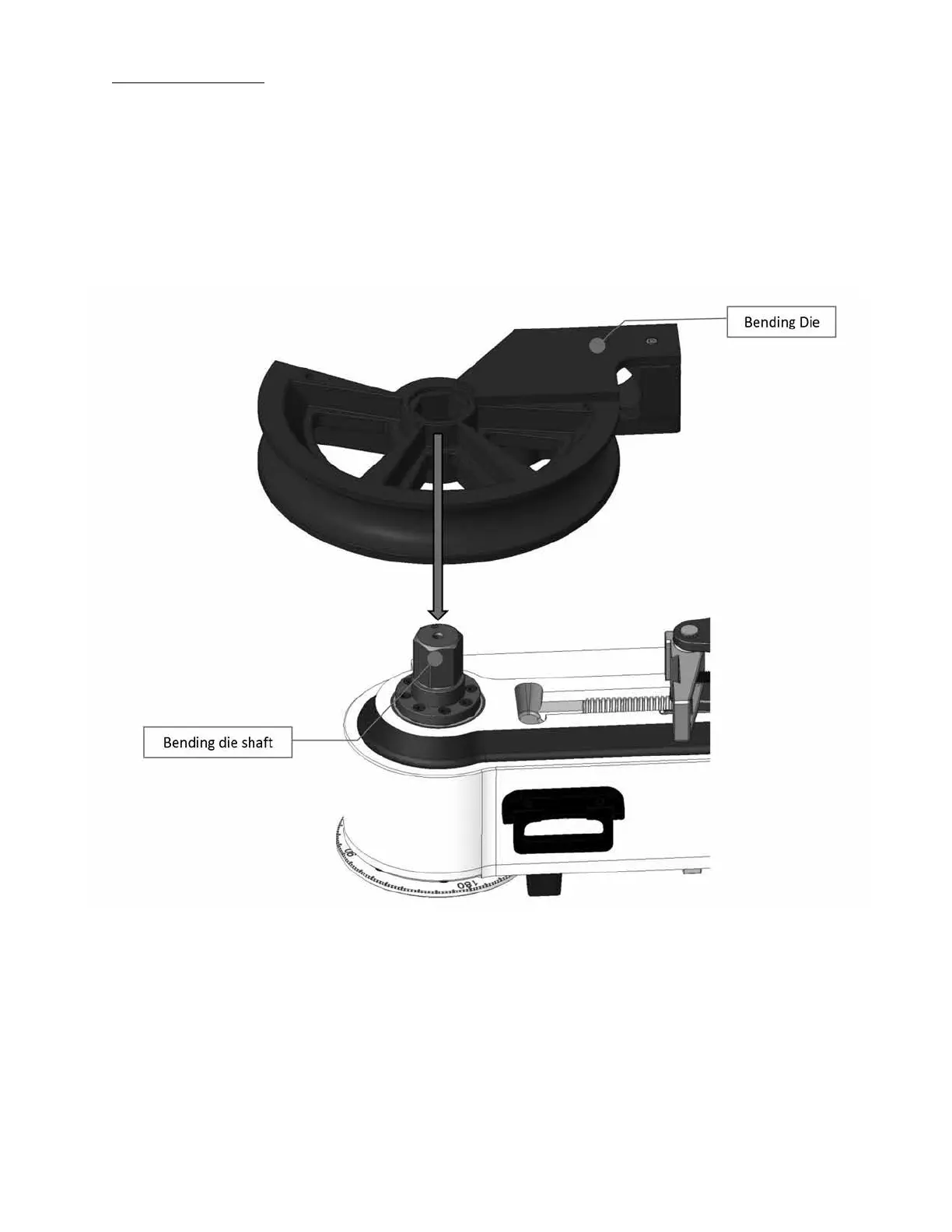

Figure 10 - Bending die assembly
