19
GB

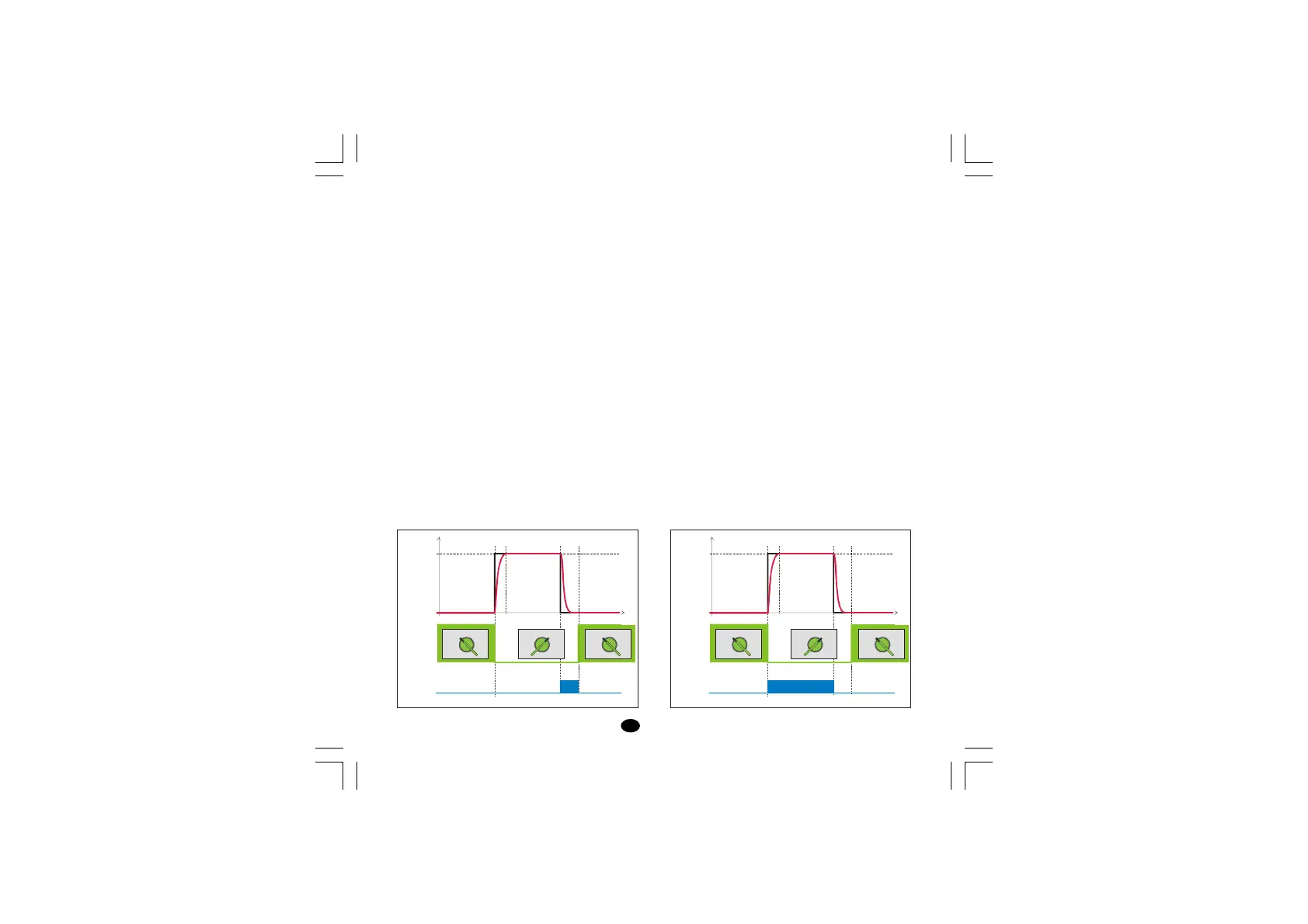

Timer mode 5 [P22=9]
The instrument start in "Power OFF" mode and it
remains in "Power OFF" mode until the contact is
closed.
When the contact has been opened the instrument
starts the control using SP set point and starts the
time count down.
When the time count is equal to 0 the instrument
comes back to the "Power OFF" mode and the
output 2 will be energized.
The Out 2 reset will be made when the logic input
will be closed.
LME display management: when the instrument
starts the time count down, the upper display
shows the measured value while the lower display
shows time count down.
LDE display management: when the instrument
starts the time count down, the display shows the
time count down.
Pushing ▲ pushbutton, it is possible to display the
measured value.
NOTE: for both instruments, when the time is
finished the instrument comes back to the usual
display of the Power OFF mode.
Timer mode 6 [P22=10]
The instrument starts in "Power OFF" mode and it
remains in "Power OFF" mode until the contact is
closed.
When the contact has been opened the instrument
operates as follows:
- it starts the control using SP set point.
- it starts the time count down
- it energizes the Output 2
When the time count is equal to 0 the instrument
comes back to the "Power OFF" mode and the
output 2 will be reset.
LME display management: when the instrument
starts the time count down, the upper display
shows the measured value while the lower display
shows time count down.
LDE display management: when the instrument
starts the time count down, the display shows the
time count down.
Pushing ▲ pushbutton, it is possible to display the
measured value.
NOTE: for both instruments, when the time is
finished the instrument comes back to the usual
display of the Power OFF mode.
SP
Time
Output 2
OFF
OFF ON OFF
Contact
Closed Open Open
Closed
Stop Run Stop Run Stop Run
Output
Power
OFF
Output
Power
OFF
SP
Time
Output 2
OFF
ON OFF
Contact
Closed Open Open
Closed
Stop Run Stop Run Stop Run
Output
Power
OFF
Output
Power
OFF
