ESAB A2TF J1 - Main components A2 TG J1; A2 TG J1 4 WD (MIG;MAG)

3 INSTALLATION
0449 165 160
- 11 -
© ESAB AB 2020

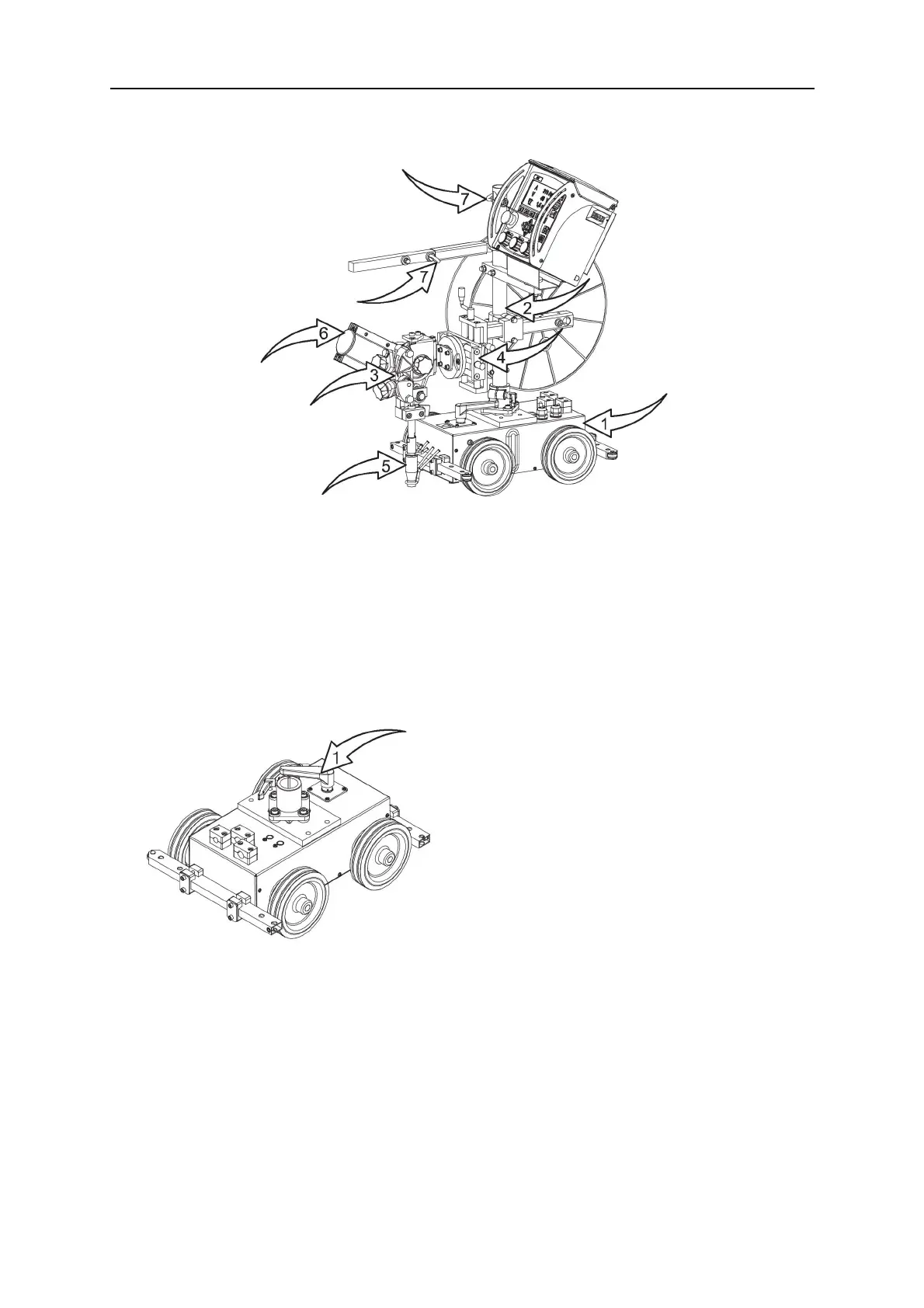

3.3 Main components A2TGJ1/A2TGJ14WD(MIG/MAG)
1. Carriage 5. Connector
2. Carrier 6. Wire feed motor
3. Wire feed unit 7. Wire guide
4. Slide kit, manual
3.4 Description of main components
3.4.1 Carriage
The carriage is provided with 4-wheel drive. Secured the carriage with the locking lever (1).
3.4.2 Carrier
Fit the control unit, wire feed unit and flux hopper, among other things, on the carrier.
3.4.3 Wire feed unit
The wire feed unit guides and feeds the welding wire into the connector / contact tube.
3.4.4 Manual slides
The horizontal and vertical position of the welding head is adjusted by way of linear slides.
The angular motion can be freely adjusted using the rotary slide.
3.4.5 Contact tube / Connector
Transfers welding current to the wire during welding.
