4.6.2.1 Accessories
• Fine-wire straightener (5) to be fitted on top of the clamp of the
wire feed unit (1).
NOTE!
When mounting the fine-wire straightener, remove the
plate (7) if it exists.
NOTE!
Do not remove the protection plate (8).
4.6.2.2 Adjustment of the wires for twin-arc welding
Position the wires in the joint so as to achieve optimal weld quality by rotating the connector.
The two wires can be rotated so that they are positioned one after the other along the line of
the joint, or in any position up to 90° across the joint, i.e. one wire on each side of the joint.
4.7 Contact equipment for MIG/MAG welding

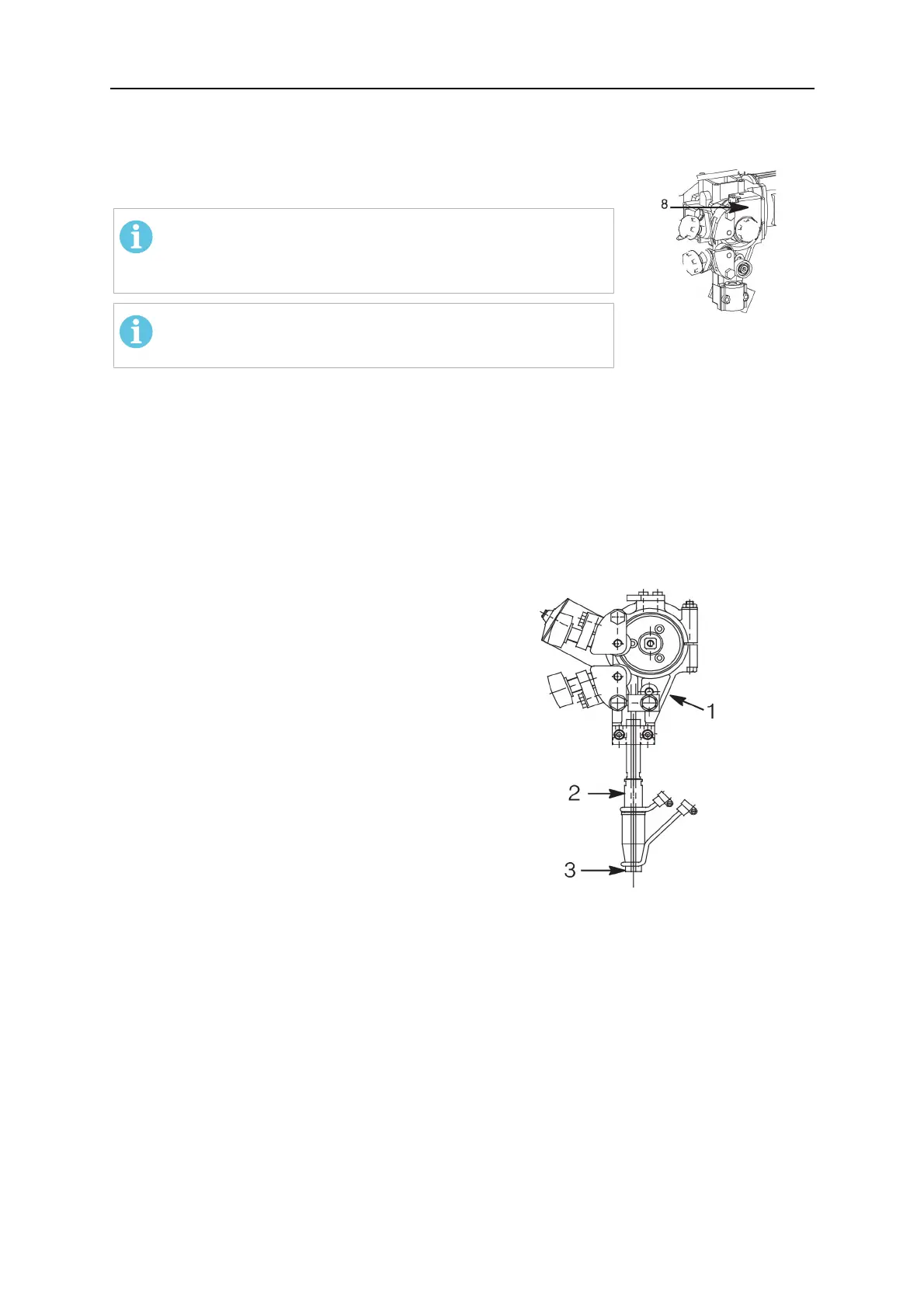

4.7.1 For single wire 1.6–2.5mm(D35)
Use automatic welding equipment A2TGJ1
(MIG/MAG) where the following are included:
• Wire feed unit (1)
• Connector D35 (2)
• Contact tip (3) (M10 thread)
Tighten the contact tip (3) with a key in order to ensure
that a good contact is achieved.
