ESAB A2TF J1 - For Single Wire < 1.6 MM (D35); Accessories; For Single Wire 1.0-2.4 MM (Wire Feed Unit with Four-Wheel Drive)

4 OPERATION
0449 165 160
- 22 -
© ESAB AB 2020

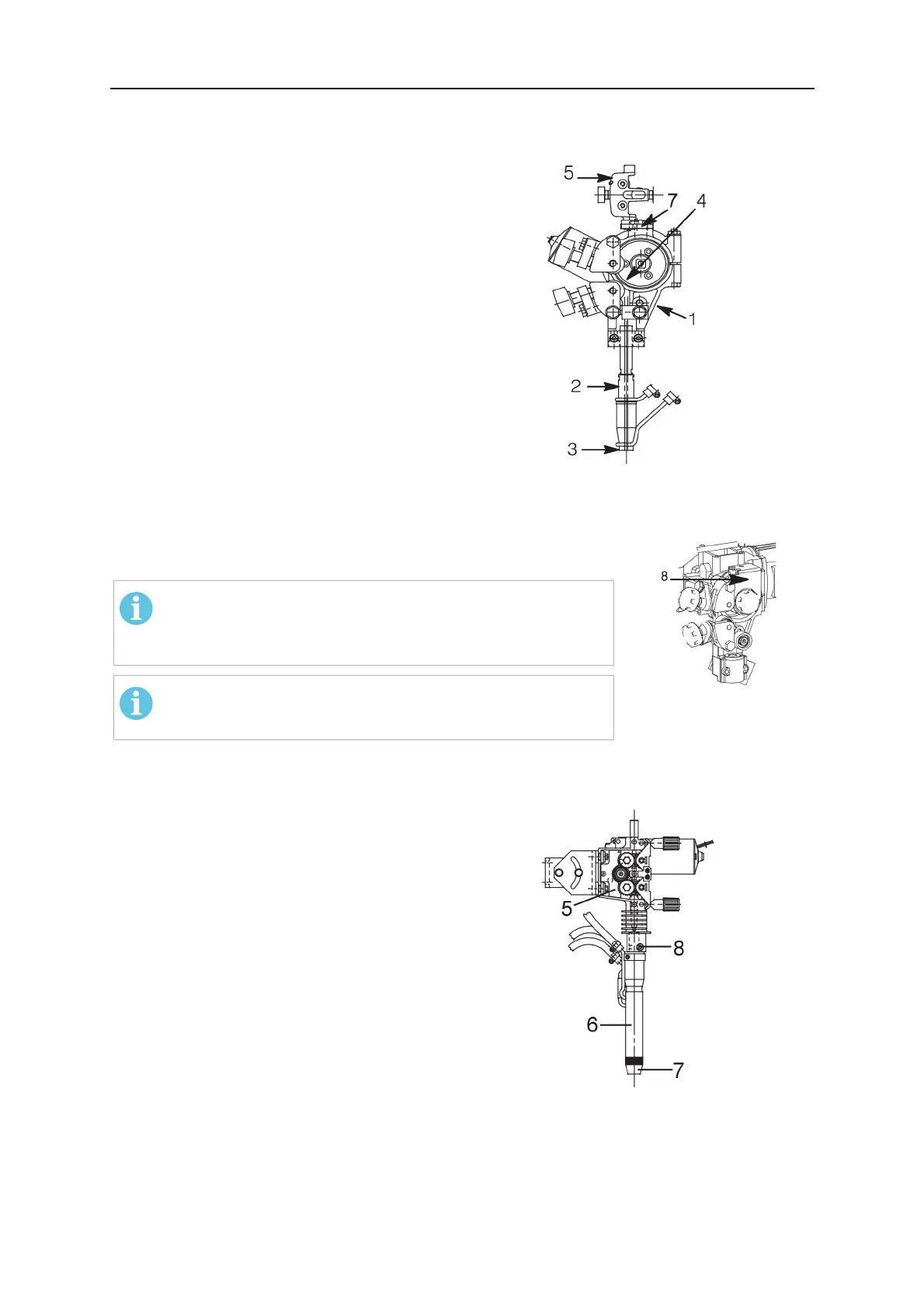

4.7.2 For single wire < 1.6mm (D35)
Use automatic welding equipment A2TG J1
(MIG/MAG) where the following are included:
• Wire feed unit (1)
• Connector D35 (2)
• Contact tip (3) (M12 thread)
• Guide tubes (4)
Tighten the contact tip (3) with a key in order to ensure
that a good contact is achieved.
4.7.2.1 Accessories
• Fine-wire straightener (5) to be fitted on top of the clamp of the
wire feed unit (1).
NOTE!
When mounting the fine-wire straightener, remove the
plate (7) if it exists.
NOTE!
Do not remove the protection plate (8).
4.7.3 For single wire 1.0–2.4mm (wire feed unit with four-wheel drive)
Use automatic welding equipment A2TGJ14WD
(MIG/MAG) where the following are included:
• Wire feed unit (5)
• Contact device D35 (6)
Tighten the contact device (6) using the Allen
screw (8).
• Contact nozzle (7)
Tighten the contact nozzle in order to ensure that
a good contact is achieved.
Select a wire guide insert of the correct dimension for
the type of wire to be used. See the instruction manual
for contact device MTW600 (0449006xxx).
