3 INSTALLATION
0449 165 160
- 12 -
© ESAB AB 2020
3.4.6 Wire feed motor
The motor feeds the welding wire.
3.4.7 Guide pin
The guide pin is used to help positioning the welding head in the joint.
3.4.8 Flux hopper / Flux tube
The flux is filled into the flux hopper. It is then transferred to the workpiece through the flux
tube.
The amount of flux to be dropped down is controlled by way of the flux valve fitted to the flux
hopper.
For more information, see section "Refilling with flux powder".
3.5 Mounting
3.5.1 Wire drum (Accessories)

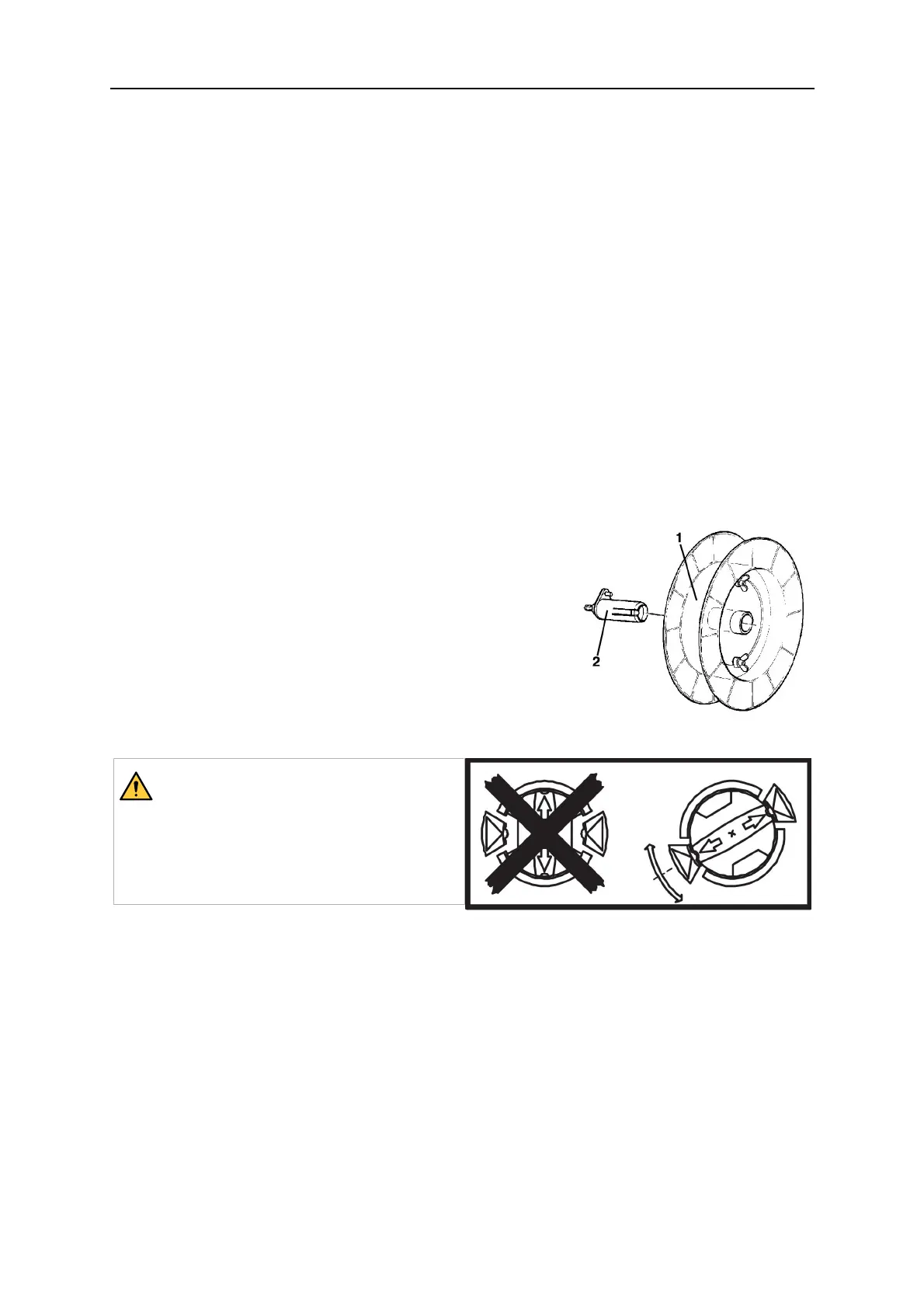

Mount the wire drum (1) on the brake hub (2).
WARNING!
To prevent the reel from sliding off
the hub: Lock the reel in place by
turning the red knob as shown on
the warning label attached next to
the hub.
3.6 Adjusting the brake hub
The brake hub is adjusted at delivery. If readjustment is required, follow the instructions
below. Adjust the brake hub so the wire is slightly slack when wire feed stops.
