ESAB A2TF J1 User Manual

3 INSTALLATION
0449 165 160
- 15 -
© ESAB AB 2020
3.7.3 Automatic welding equipment A2TGJ1 (Gas metal arc welding,
MIG/MAG)

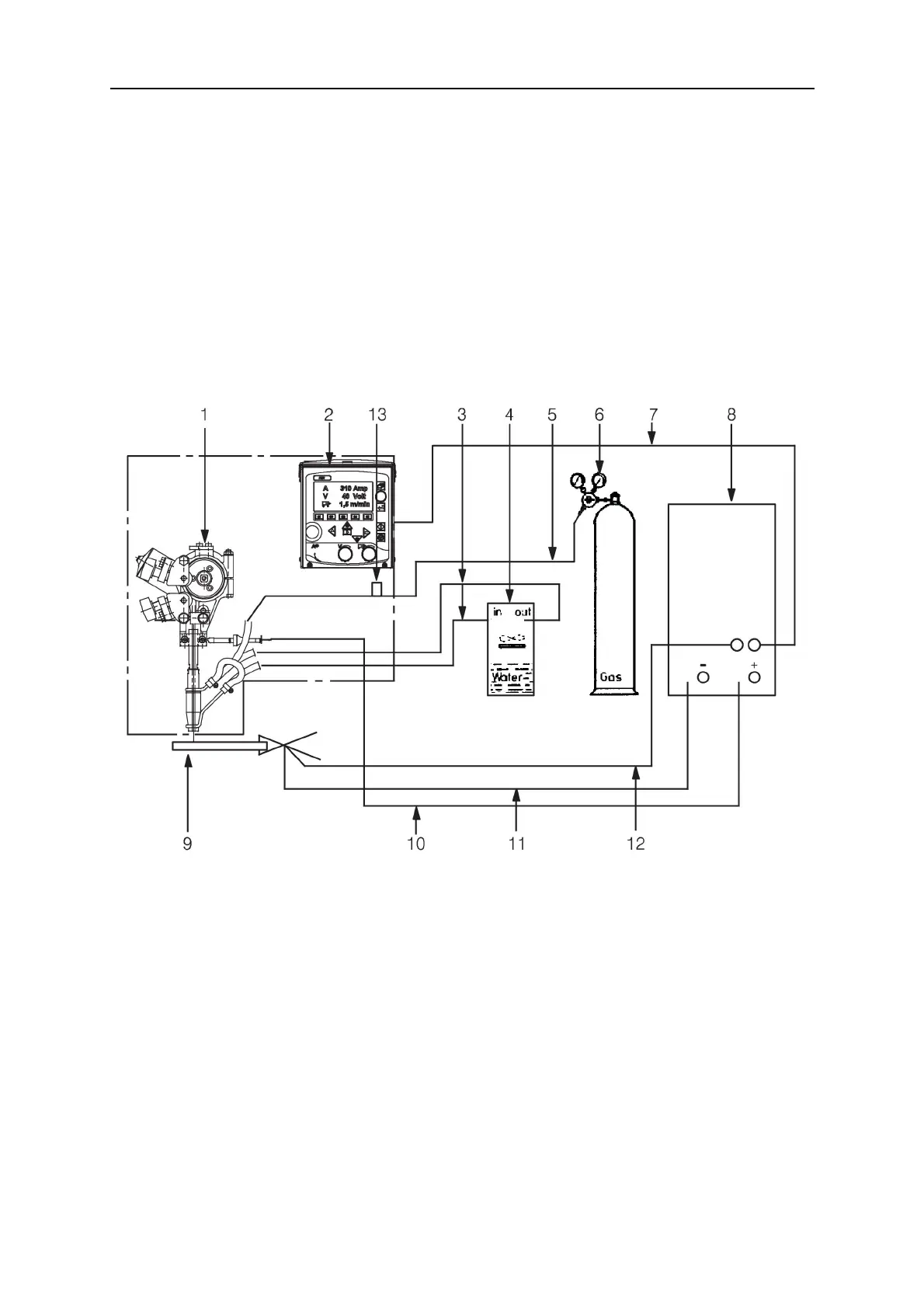

1. Connect the control cable (7) between the power source (8) and the PEK (2).
2. Connect the return cable (11) between the power source (8) and work piece (9).
3. Connect the welding cable (10) between the power source (8) and the automatic
welding equipment (1).
4. Connect the gas hose (5) between the reducer valve (6) and the gas connection (13)
on the welding equipment.
5. Connect the cooling water hoses (3) between the cooling unit (4) and the automatic
welding equipment (1).
6. Connect the measurement cable (12) between the power source (8) and workpiece
(9).
1. Automatic welding equipment 5. Control cable
2. PEK 6. Return cable
3. Power source 7. Welding cable
4. Work piece 8. Measurement cable
