5 OPERATION
0463 605 001
- 15 -
© ESAB AB 2018
5.1 User connections and controls

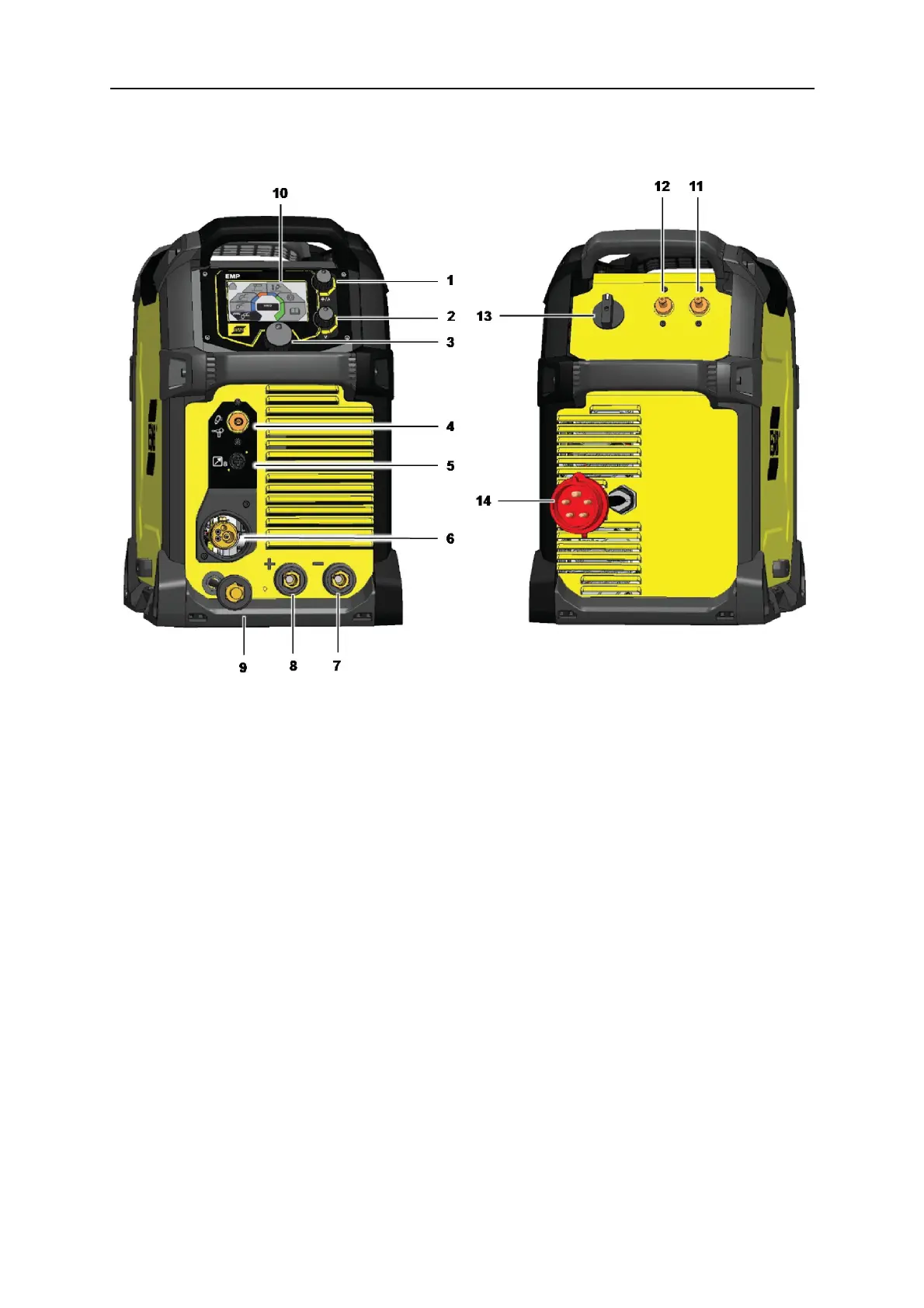

Figure 1. Front & rear views: Model EMP 255ic & EMP 320ic
1. Knob for current or wire feed speed
selection
8. Positive output [+]
2. Knob for voltage selection 9. Polarity changeover cable
3. Main knob for navigation and parameter
selection
10. Display
4. Gas outlet for TIG & spool torch 11. Gas inlet for MIG/MAG
5. Torch/remote control connection 12. Gas inlet for TIG
6. Torch connection and MIG/MAG gas
outlet
13. Main power switch ON/OFF
7. Negative output [-] 14. Main power cable
