ESAB EMP 320ic - MAINTENANCE; Wire-Feeder Assembly Maintenance Overview; Wire-Feeder Assembly Cleaning Procedure

7 MAINTENANCE
0463 605 001
- 44 -
© ESAB AB 2018
7.2.1 Wire-feeder assembly cleaning
WARNING!
Always use hand and eye protection when cleaning.
NOTE!

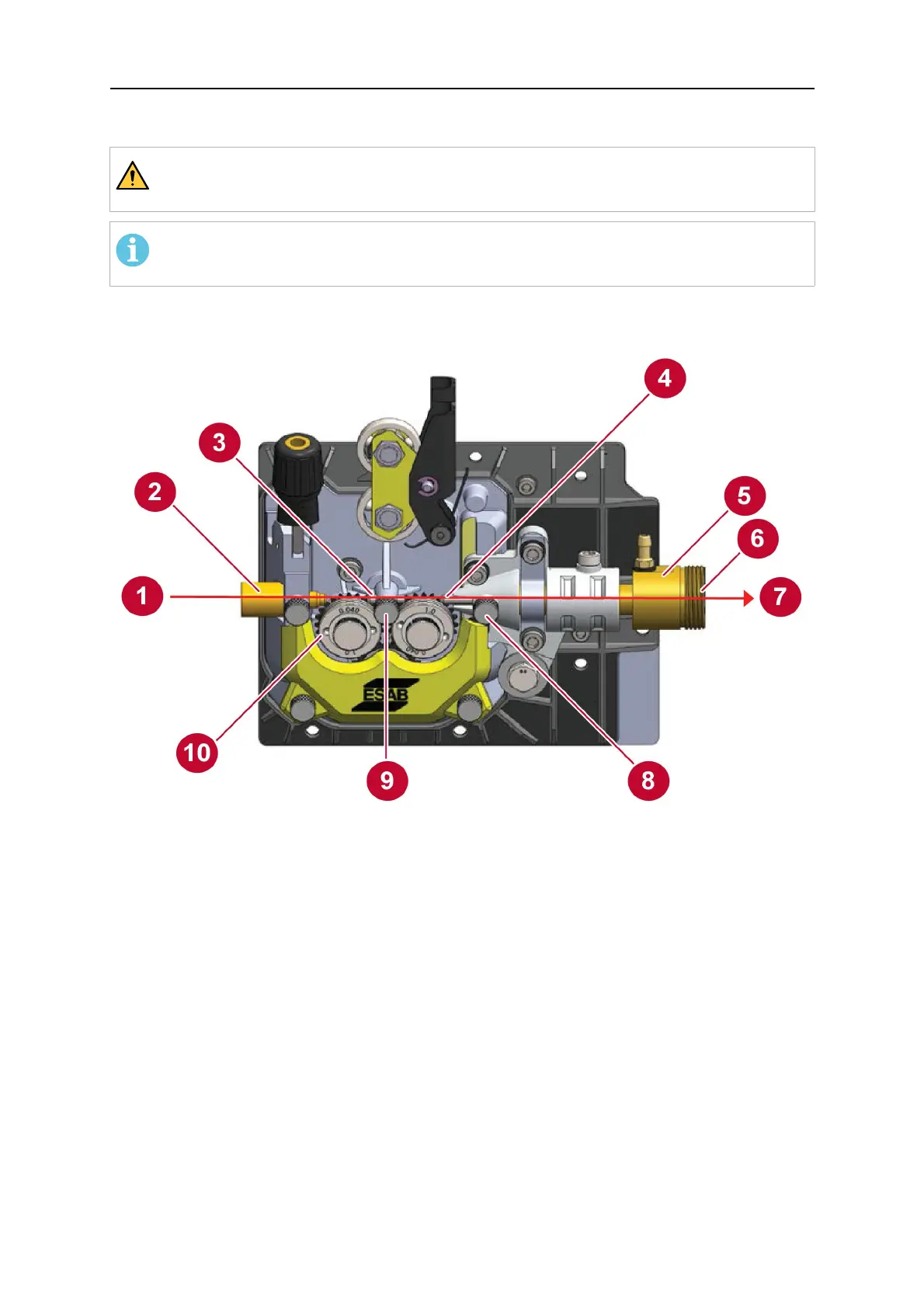

Use the following three illustrations for reference during this procedure.
1. Wire from bobbin 6. Output wire-guide
(insideofEuro-adapterassy.)
2. Input wire-guide 7. Wire-path through assembly
3. Center wire-guide 8. Output wire-guide thumb
4. Output wire-guide tube 9. Center wire-guide set screw
5. Eurro-adapter assembly 10. Wire-feed rollers
