6 CONTROL PANEL
0463 605 001
- 41 -
© ESAB AB 2018

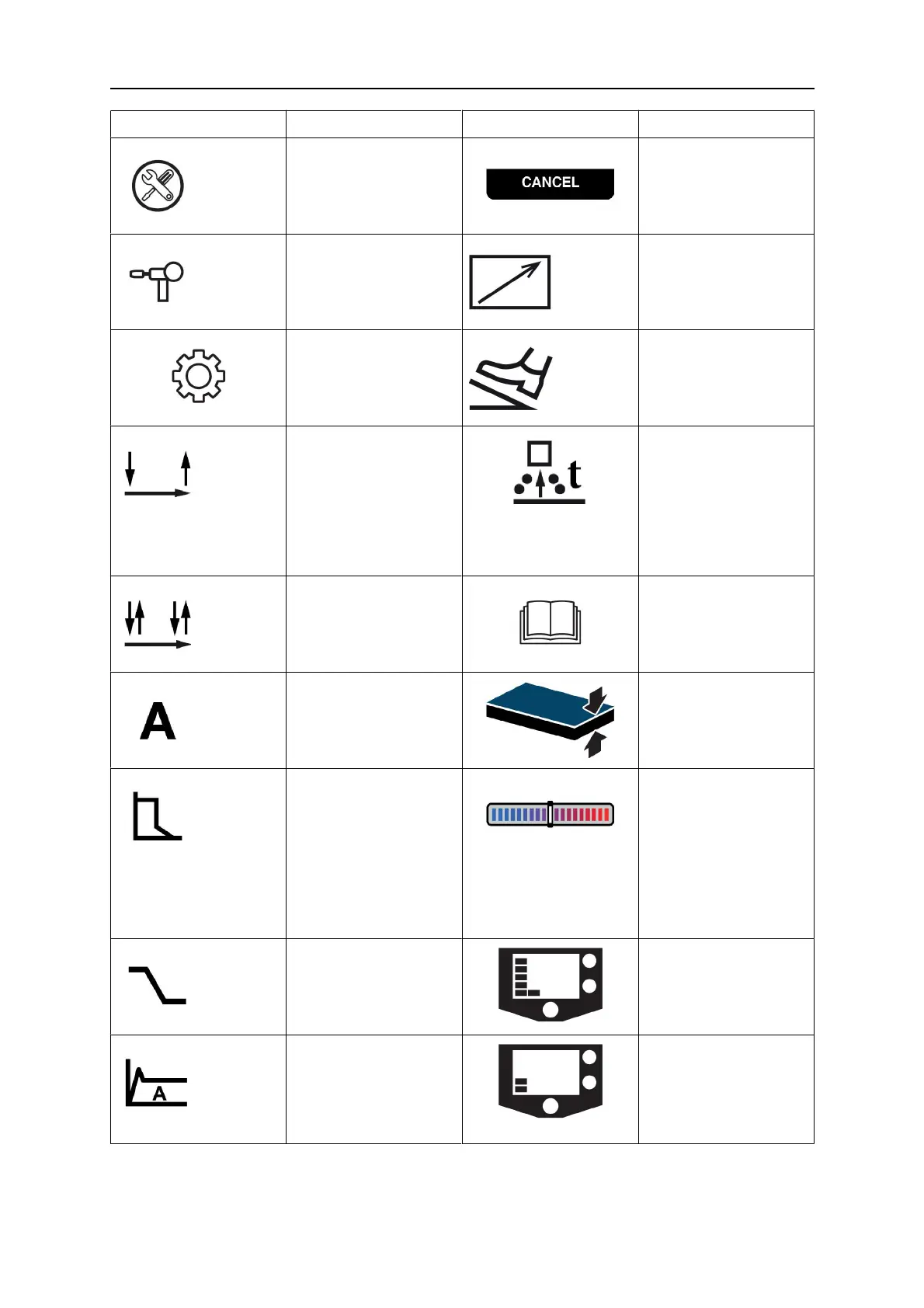

ICON MEANING ICON MEANING
Settings on user
manual menu
Cancel
Spool torch
(Not all markets)
Remote
Settings Foot control
2T, Trigger On/OFF Burn back Adjusting
the time when the
voltage stays on after
the wire feed is
stopped to keep the
wire from freezing in
the weld puddle
4T, Trigger
Hold/Lock
User manual on main
menu
Amps Plate thickness at
sMIG mode
Arc force On stick
welding-increasing
amps when the arc
length is shortened to
reduce or eliminate
the freezing of the
stick electrode in the
weld puddle
Trim bar Changing
the weld bead profile
from flat to convex or
flat to concave
Downslope Sloping
the current down over
a period of time at the
end of the weld cycle
Advanced Settings
Hot start The
increase of amps
when striking the
electrode to reduce
sticking
Basic Settings
