ESAB fabricator 211i User Manual

ESAB FABRICATOR 211i
Manual 0-5450 3-1 SAFETY/INSTALLATION
SECTION 3:
SAFETY AND INSTALLATION
3.01 Duty Cycle
The rated duty cycle of a Welding Power Source, is a statement of the time it may be operated at its rated welding current output
without exceeding the temperature limits of the insulation of the component parts. To explain the 10 minute duty cycle period the
following example is used. Suppose a Welding Power Source is designed to operate at a 20% duty cycle, 210 amperes at 24.5 volts.
This means that it has been designed and built to provide the rated amperage (210A) for 2 minutes, i.e. arc welding time, out of
every 10 minute period (20% of 10 minutes is 2 minutes). During the other 8 minutes of the 10 minute period the Welding Power
Source must idle and allowed to cool. The thermal cut out will operate if the duty cycle is exceeded.
10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220
FABRICATOR 211i
Welding Current (AMPS)
SAFE OPERATING REGION
(MIG, TIG & STICK)
0
0
10
20
30
40
60
70
50
80
100
90
Duty Cycle (PERCENTAGE)
MIG
STICK / TIG
Art # A-11265

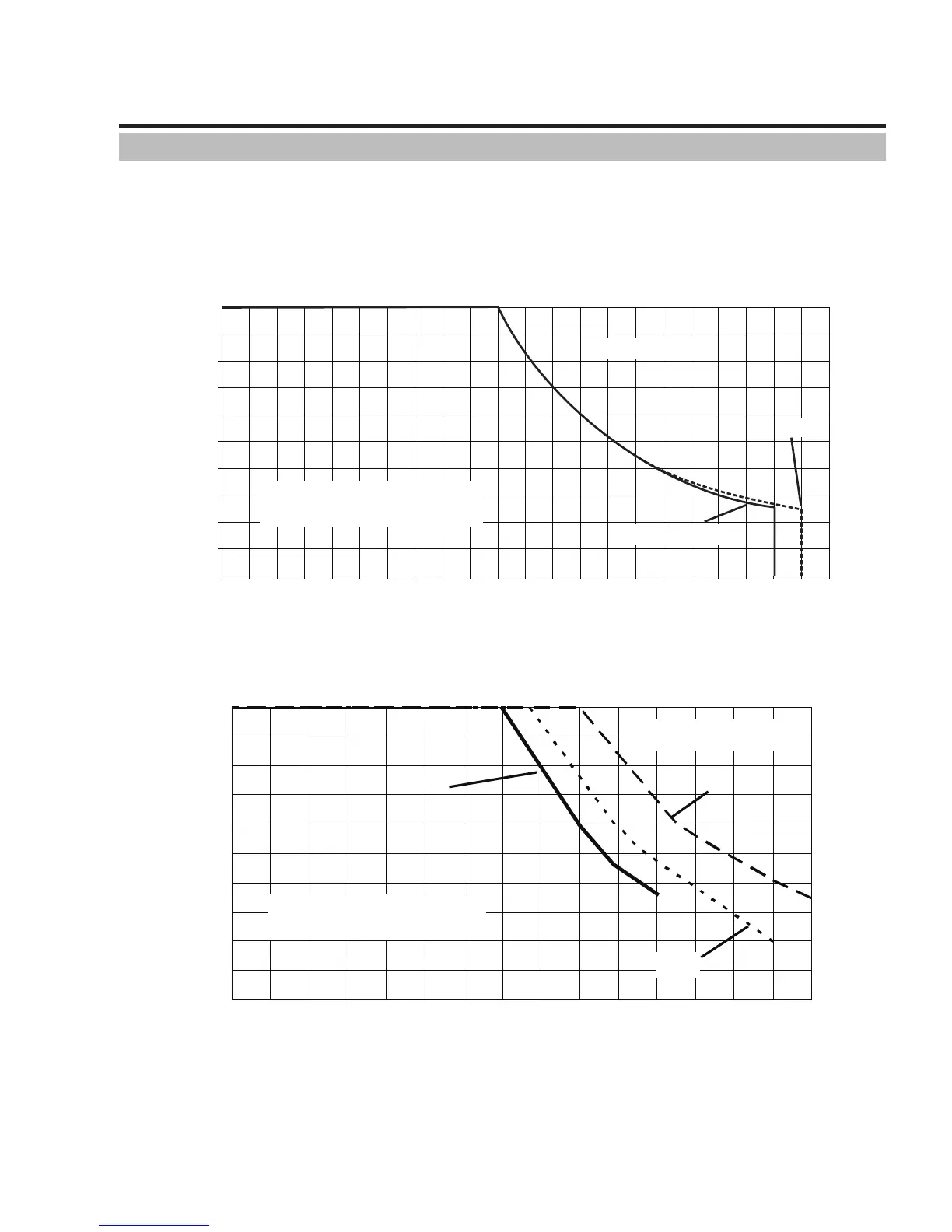

Figure 3-1: Fabricator 211i Duty Cycle on 208/230V AC
Welding Current (AMPS)
Duty Cycle (PERCENTAGE)
Art # A-11274
0
10
20
30
40
50
60
70
80
90
100
0102030405060708090100 110 120 130140 150
FABRICATOR 211i
SAFE OPERATING REGION
(MIG, TIG & STICK)
TIG
STICK
MIG
Figure 3-2: Fabricator 211i Duty Cycle on 115V AC
