ESAB FABRICATOR 211i
ASSEMBLY PROCEDURES 7-2 Manual 0-5450

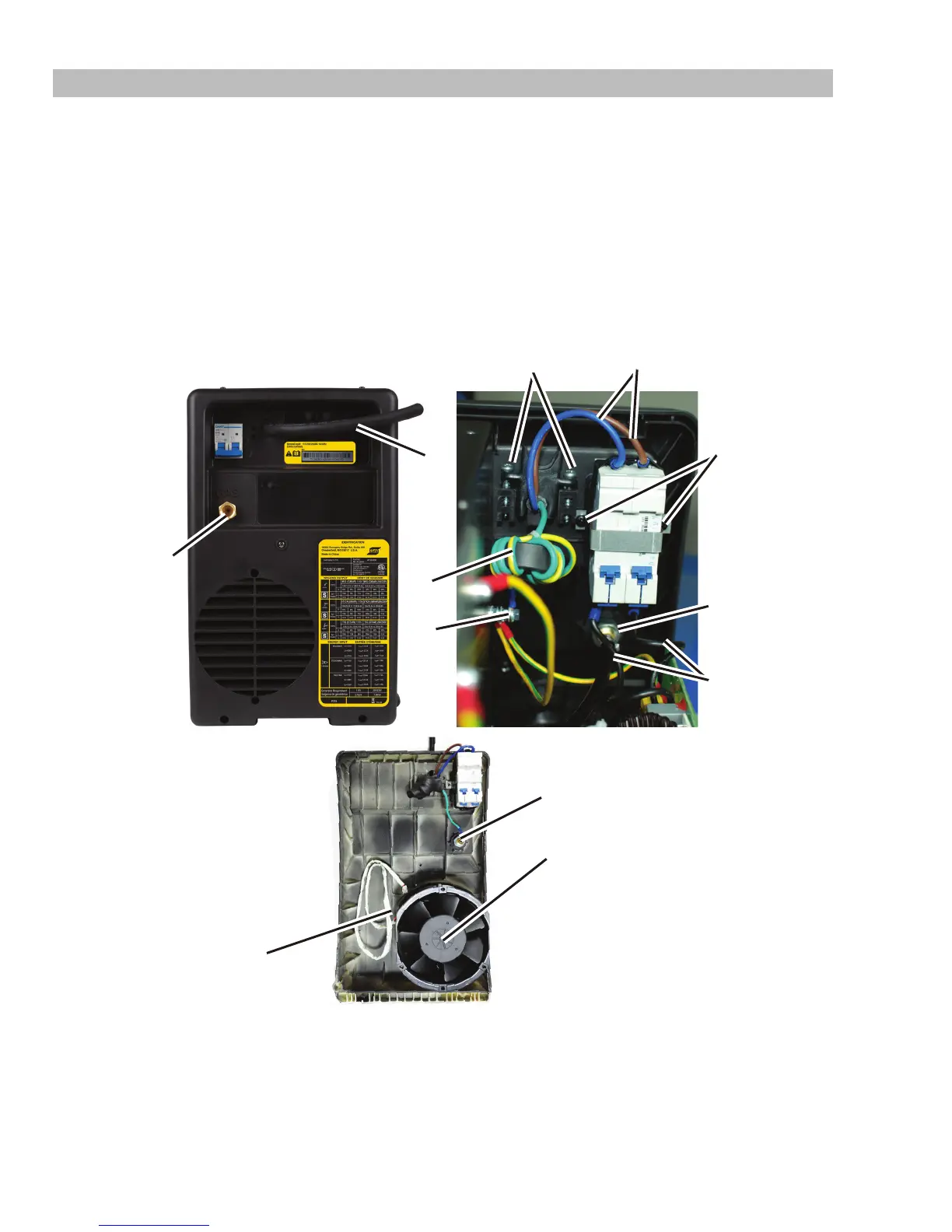

7.02 Installing Back Panel
1. Install gas inlet.
2. Install the power supply cord and the screws.
3. Install fan.
4. Reconnect the pipe to gas inlet and the screw.
5. Reconnect the supply wires.
6. Reconnect the supply wires which connect to power PCB.
7. Install the two screws
8. Reinstall magnetic core onto Ground Wire.
9. Reconnect Ground Wire to the terminal.
10. Reconnect Rear Panel screws.
11. Reconnect the harness to FAN connector.
1
2
7
1
3
11
9
7
4
6
A-12949
To Next Page
