ESAB FABRICATOR 211i
Manual 0-5450 6-1 DISASSEMBLY PROCEDURES
6.01 Safety Precautions for Disassembly
WARNING
Gives information regarding possible electrical shock injury. Warnings will be enclosed in a box such as this.
Unplug unit before beginning Disassembly procedure.

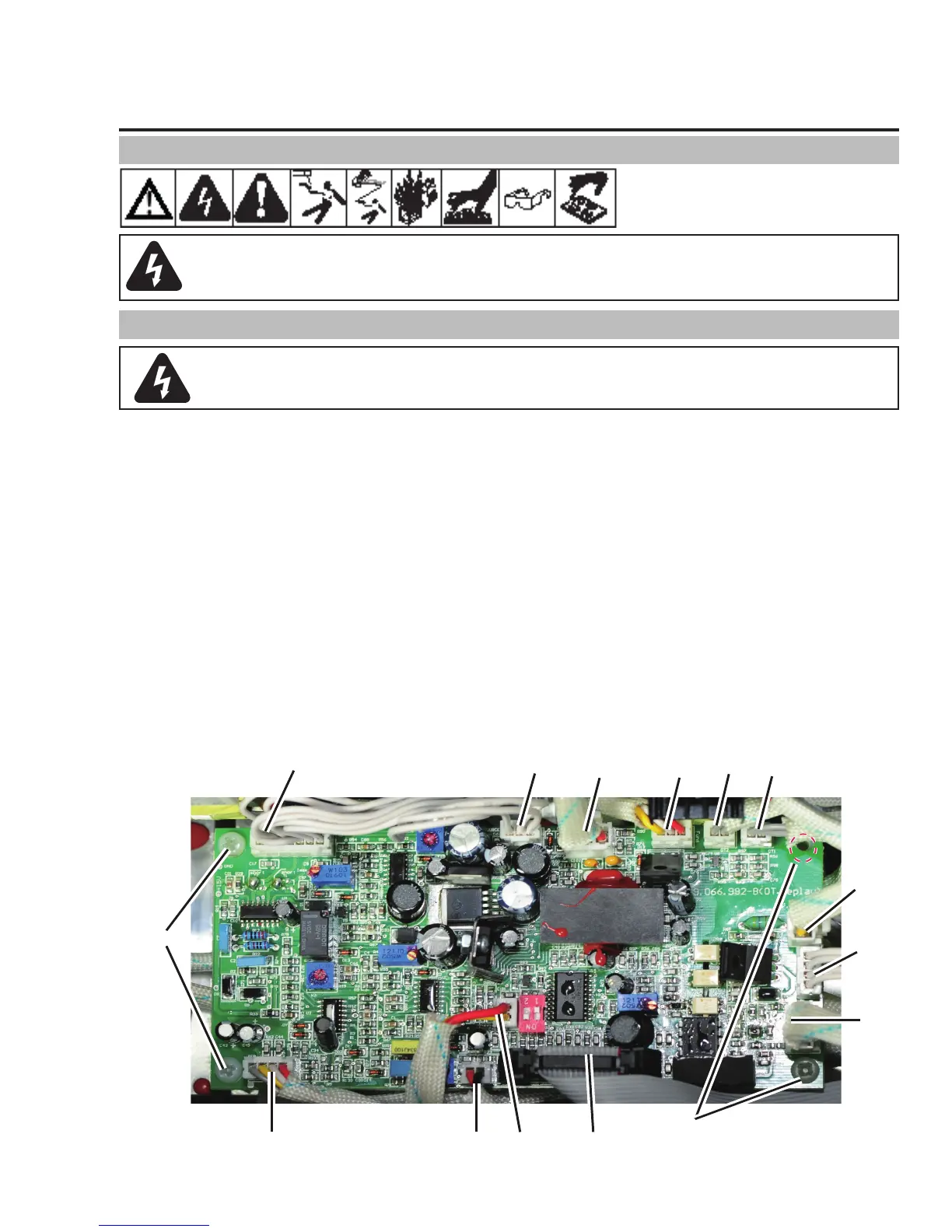

6.02 Control PCB Removal
WARNING
Read and follow safety information in Section 5.03 before proceeding with disassembly.
Remove cover panel before remove the control PCB.
1. M4 Screw. Remove 4 screws from Control PCB.
2. Disconnect DRIVE harness from DRIVE connector.
3. Disconnect SOURCE harness from SOURCE connector.
4. Disconnect CR harness from CR connector.
5. Disconnect FUNs harness from FUNs connector.
6. Disconnect IGBT OT2 harness from IGBT OT2 connector.
7. Disconnect IGBT OT1 harness from IGBT OT1 connector.
8. Disconnect GUN harness from GUN connector.
9. Disconnect QF/DY harness from QF/DY connector.
10. Disconnect WVIN harness from WVIN connector.
11. Disconnect MB harness from MB connector.
12. Disconnect JC harness from JC connector.
13. Disconnect PWM harness from PWM connector.
14. Disconnect IFB harness from IFB connector.
1
2
3
45
6
7
111213
14
8
9
10
Art # A-10760_AB
1
