ESAB FABRICATOR 211i
Manual 0-5450 3-5 SAFETY/INSTALLATION
Do not connect the ground (GREEN) conductor to an input line terminal.
• Correctly installed, if necessary, by a qualied electrician.
• Correctly earthed (electrically) in accordance with local regulations.
• Connected to the correct size power point, fuse and primary supply lead based on Table 3-2.
Refer to Figure 3-3 and Table 3-2.
WARNING
An electrical shock or fire hazard is probable if the following electrical service guide recommendations
are not followed. These recommendations are for a dedicated branch circuit sized for the rated output
and duty cycle of the welding Power Source.
50 / 60 Hz Single Phase Supply
Supply Voltage 208/230V AC 115V AC
Input Current at Maximum Output 32 Amps 30 Amps
Maximum Recommended Fuse* or Circuit Breaker Rating * Time
Delay Fuse, UL class RK5. Refer to UL248
50 Amps
50 Amps
30 Amps
30 Amps
Maximum Recommended Fuse^ or Circuit Breaker Rating ^Normal
Operating , UL class K5. Refer to UL248
Minimum Recommended Cord Size 12 AWG 12 AWG
Maximum Recommended Extension Cord Length 50 ft 25 ft
Minimum Recommended Grounding Conductor Size 12 AWG 12AWG
Table 3-2: Electrical Service Guide
!
CAUTION
The time-delay fuses or circuit breaker of an individual branch circuit may have nuisance tripping when
welding with this product due to the amperage rating of the time-delay fuses or circuit breaker.
Art# A-11240
Primary Power Cable
115
115
V,
V,
20A,1Ø
15A,1Ø
The Adapter enable
connection to all these
power outlets
115 VAC Adapter

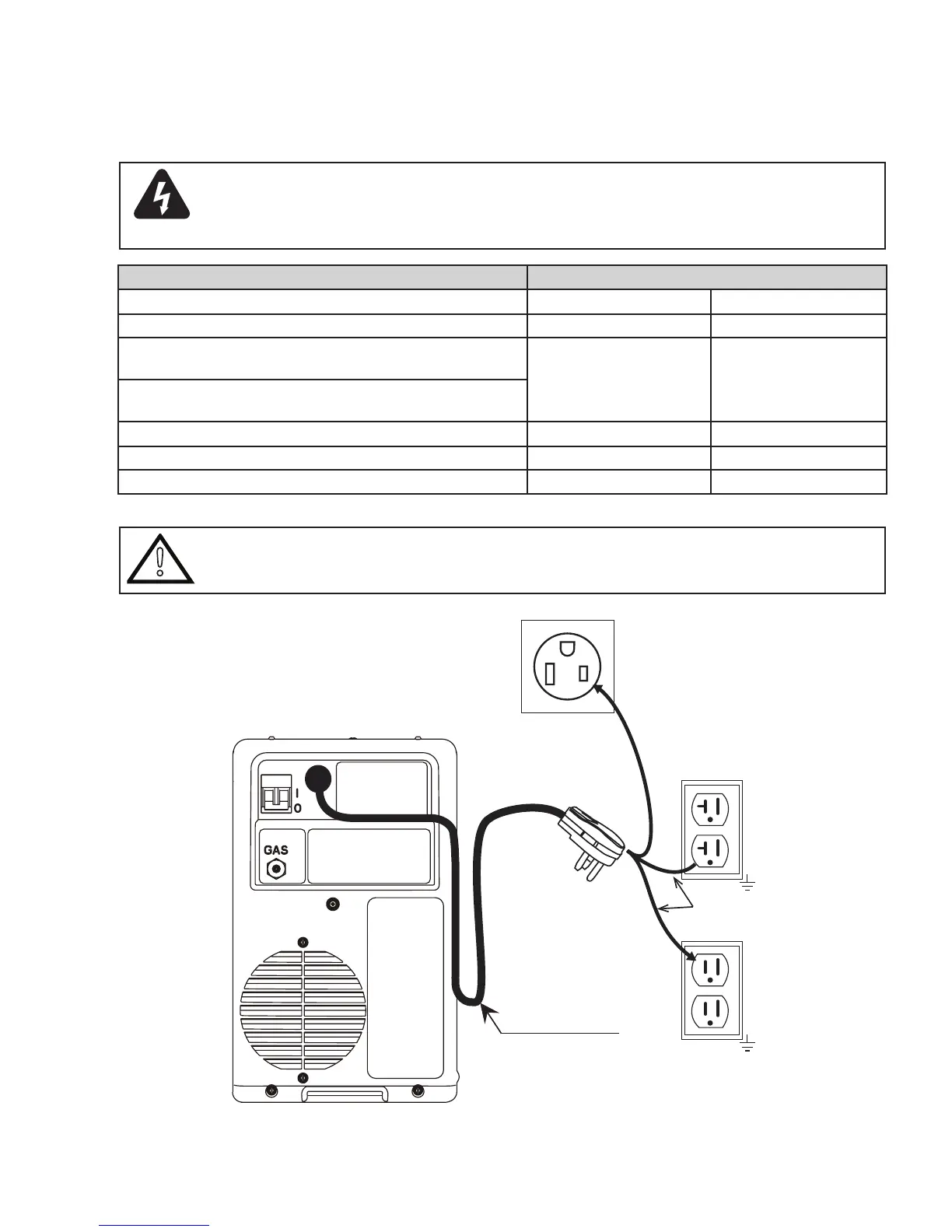

Figure 3-4: Electrical Input Connections
