ESAB fabricator 211i User Manual

ESAB FABRICATOR 211i
INSTALLATION/SETUP 4-14 Manual 0-5450
!
WARNING
Before connecting the work clamp to the work make sure the Electricity Supply is switched off.
Secure the welding grade shielding gas cylinder in an upright position by chaining it to a suit-
able stationary support to prevent falling or tipping.
!
CAUTION
Loose welding terminal connections can cause overheating and result in the male plug being fused in the
terminal.
Remove any packaging material prior to use. Do not block the air vents at the front or rear of the Welding
Power Source.
Shielding Gas Hose Fitted with Quick Connect
Positive Welding
Terminal (+)
MIG Polarity Lead
Work Lead
Negative Welding
Terminal (-)
Art # A-11244
MIG Gun
8 pin plug

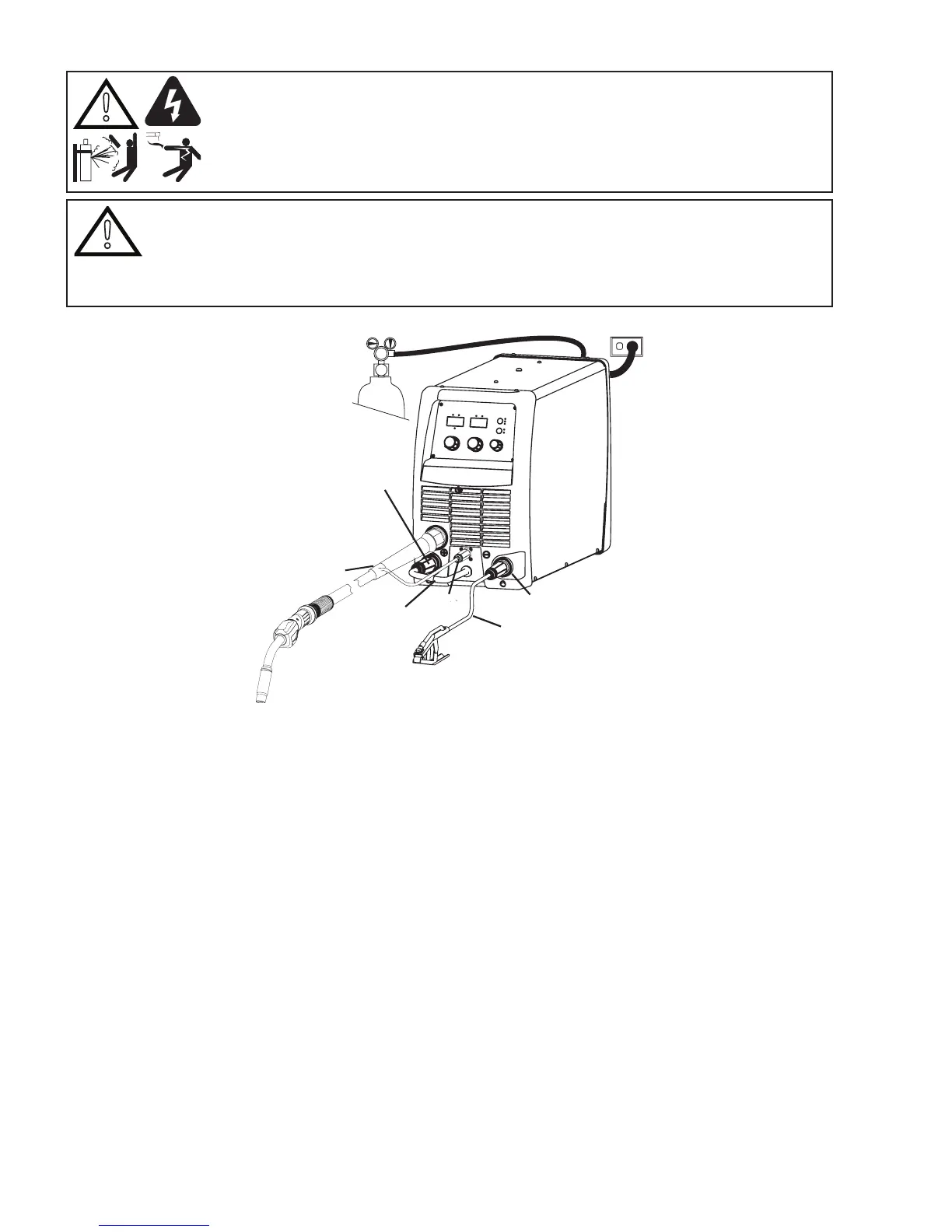

Figure 4-14: Setup for MIG Welding with Gas Shielded MIG Wire

ESAB fabricator 211i Specifications

General

Brand	ESAB
Model	fabricator 211i
Category	Welding System
Language	English
