ESAB FABRICATOR 211i
TROUBLESHOOTING 5-18 Manual 0-5450

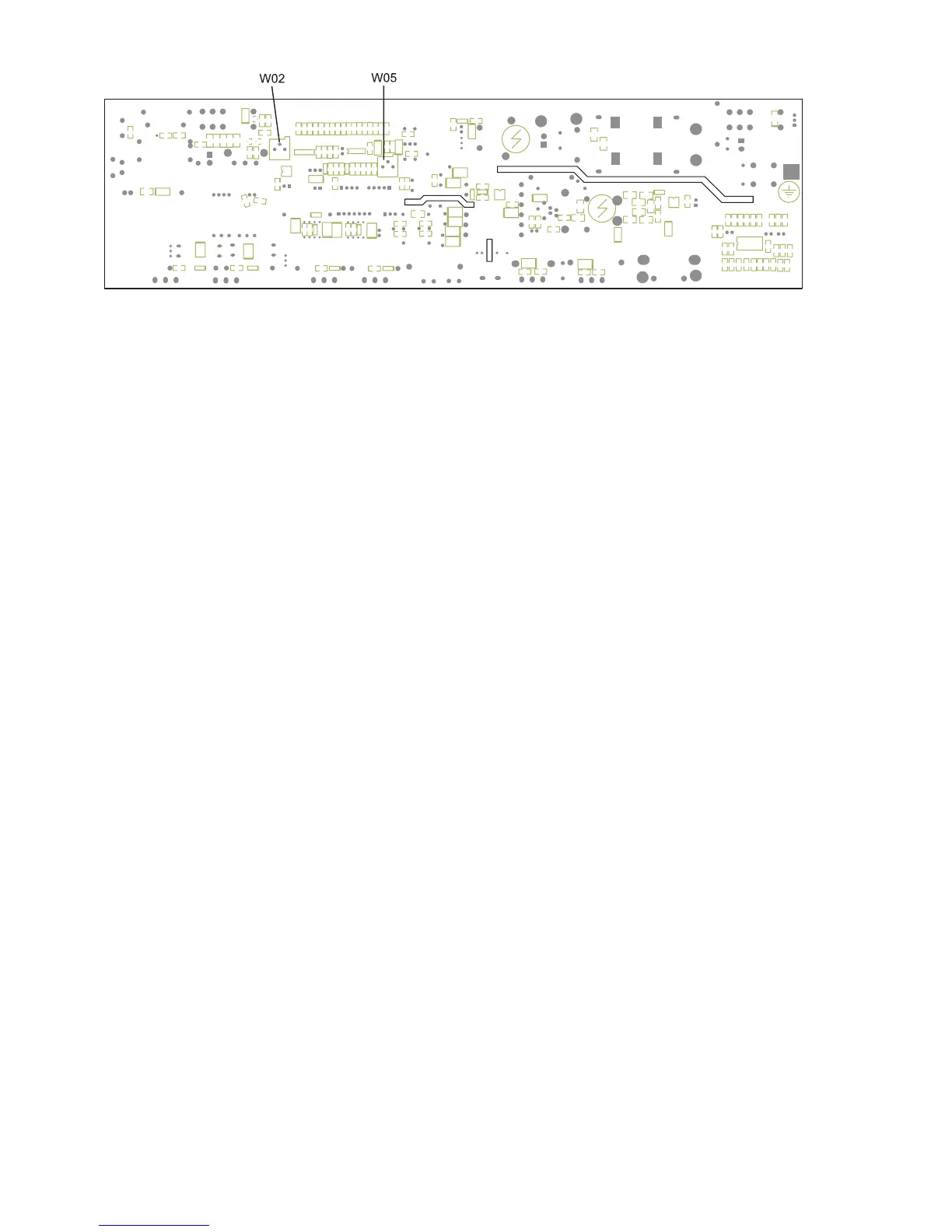

Art # A-10758
Select MIG mode on the front panel.
Remove the load from the output terminals.
Set MIG output voltage to maximum.
Set front panel WIRESPEED (AMPS) potentiometer to minimum. AMPS display should read “30”
Adjust W02 trimpot until motor volts are 4.2V +/- 0.2V or motor feedroll shaft speed is 27rpm
Set front panel WIRESPEED (AMPS) potentiometer to maximum. AMPS display should read “218”
Adjust W05 trimpot until motor volts are 24.7V +/- 0.2V or motor feedroll shaft speed is 191rpm
Recheck settings
Turn Mains power off & allow power supplies to discharge
Set SW0 position 1 to OFF while the power source is turned off, to resume normal power source operation.
