10 USING THE CONTROL PANEL

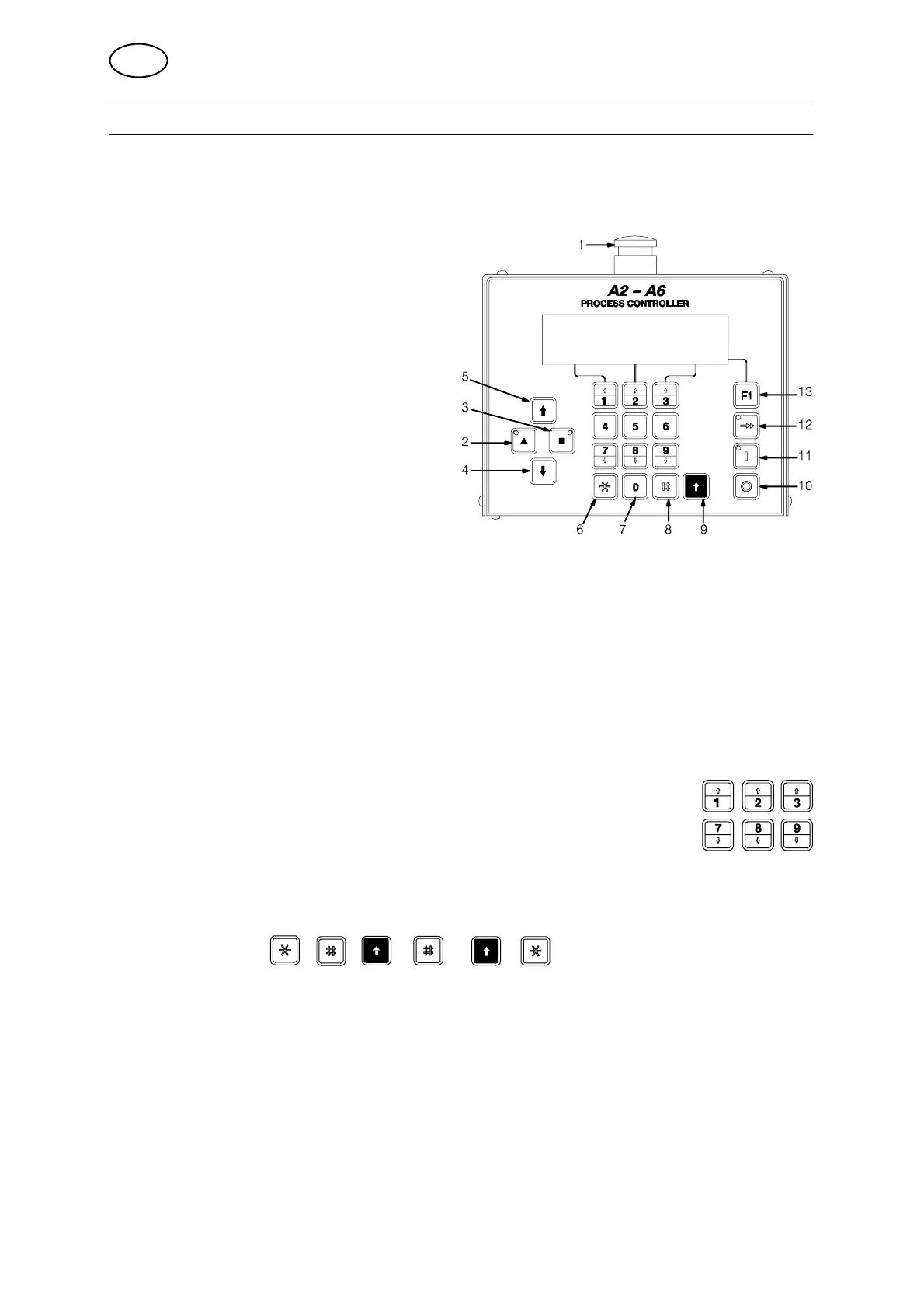

10.1 Control panel
1. Emergency stop
2. The direction of travel is as shown
by the triangular symbol on the
welding equipment.
3. The direction of travel is as shown
by the square symbol on the welding
equipment.
4. Advance wire
5. Retract wire
6. Change menu
7. Numerical key, number entry
8. ENT ER key, Change row
9. SHIFT key
10. Stop welding. Return to manual mode
11. Start welding. Switch to automatic mode
12. Fast, wire feed or travel
13. Scroll page (welding setup m enu) or close valve (main menu)
The arrowed keys are used during welding to increase or
decrease the current, voltage and speed.
By pressing either , ,
+
or
+
it is possible to browse.
N.B.
When an I/O board is connected the keys 2, 3, 4, 5, 10, 11 and 12 can no longer be
used.
GB
