12 DEFINITIONS (PRESET SYSTEM MENU)
12.1 Product code

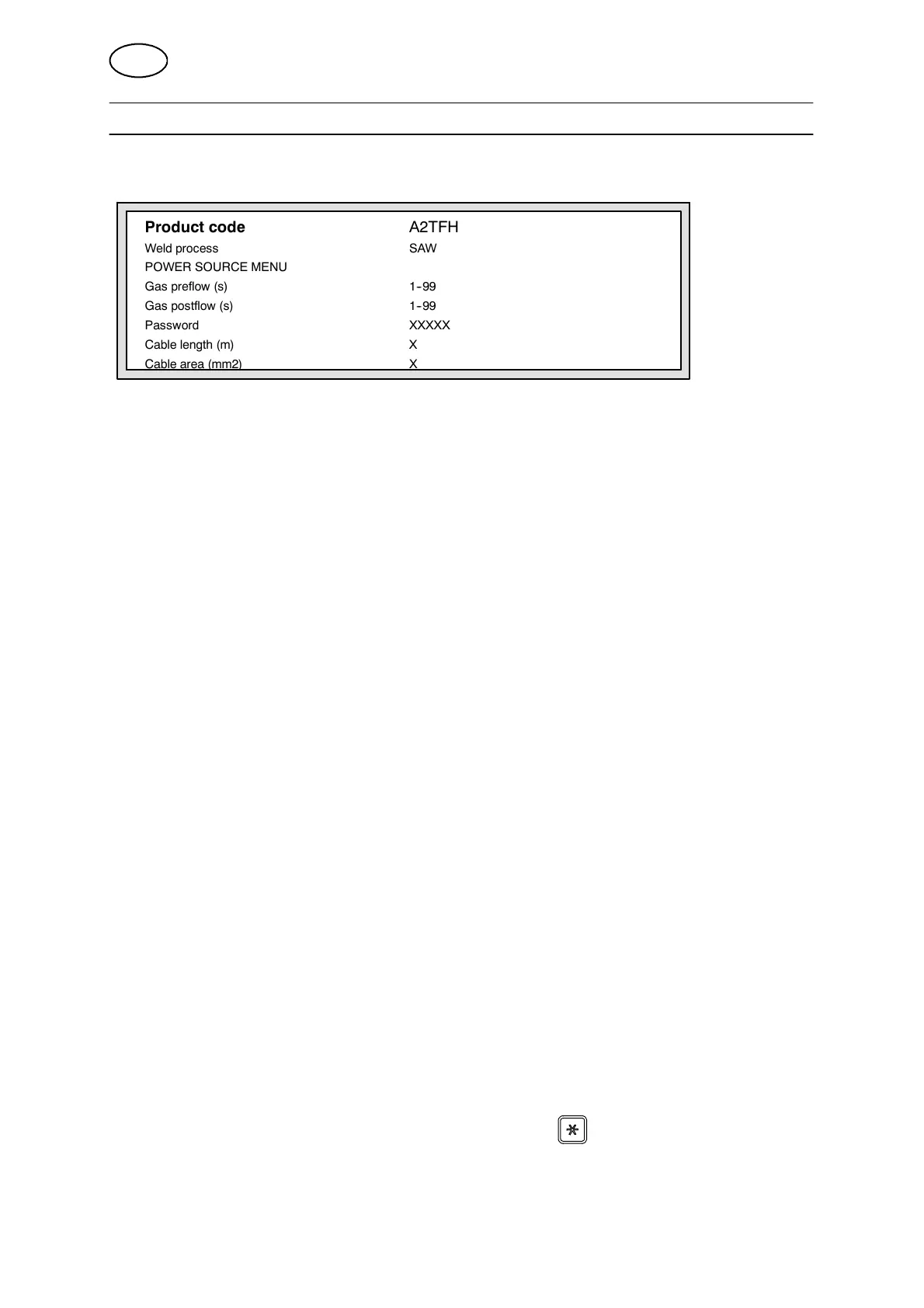

Product code A2TFH
Weld process SAW
POWER SOURCE MENU
Gas preflow (s) 1--99
Gas postflow (s) 1--99
Password XXXXX
Cable length (m) X
Cablearea(mm2)
X
System configuration uses product codes that are explained below.
Selection of the appropriate product codes automatically also selects the correct
details of the motor types and gear ratios used in the particular product.
N.B. This is not the case for “FREE2AX” and “FREE3AX”.
12.1.1 Alternatives:
For program version 4.0 and 4.01:
S A2TFE A2 SAW automatic welding m achine
S A2TGE A2 MIG/MAG automatic welding machine
S A2TFH A2 SAW automatic welding machine
S A2TGH A2 MIG/MAG automatic welding machine
S A6TFE A6 SAW automatic welding m achine
S A6TGE A6 MIG/MAG automatic welding machine
S FREE2AX Optional configuration for connection of two motors to the drive board.
S FREE3AX Optional configuration for connection of external Roller bed,
Positioner or Linear axis.
Also for connection of two motors to the drive board.
For program version 4.2, 4.3 and 5.0:
S A2TFH A2 SAW automatic welding machine
S A2TGH A2 MIG/MAG automatic welding machine
S A6TFH A6 SAW automatic welding machine
S A6TGH A6 MIG/MAG automatic welding machine
S FREE2AX Optional configuration for connection of two motors to the drive board.
S FREE3AX Optional configuration for connection of external Roller bed,
Positioner or Linear axis.
Also for connection of two motors to the drive board.
For A2TFE,A2TGE,A2TFH,A2TGH,A6TFE,A6TGE,A6TFHand A6TGH see on
page 31.
To select “FREE2AX / FREE3AX”, select it and press .
Available settings for “FREE2AX” see on page 32.
Available settings for “FREE3AX” see on page 37.
