12.14 ERROR LIST
Cablearea(mm2) X
Weldhead offset, mm
START SEQUENCE MENU
STOP SEQUENCE MENU
CALIBRATION MENU
DISPLAY MENU
ERROR LIST
Test 0/1/2

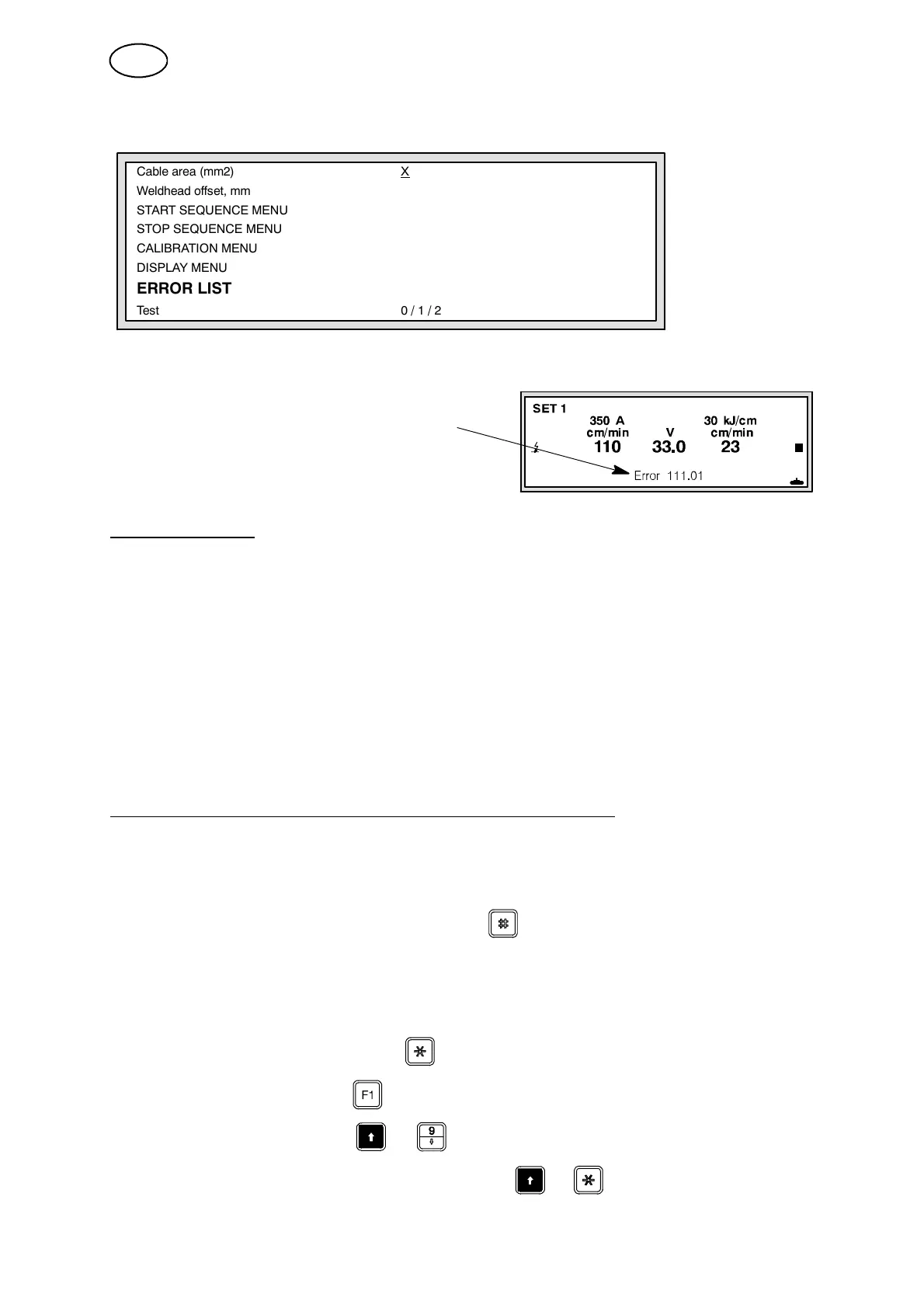

Error m essages are displayed on the bottom row of the MAIN MENU.
Error messages that may occur are shown here:
Error codes, see on page 60.
Error categories
Emergency stop (see page 27)
A special emergency stop function that is activated by pressing the emergency stop
pushbutton in dangerous situations (e.g. risk of injury etc.).
When the reason for the emergency stop has been corrected, the emergency stop
function can be reset by deactivating the emergency stop pushbutton.
Incorrect entry of numerical values
If incorrect numerical values are entered (e.g. for voltage, current or speed), a
message is generated indicating the values that are allowed.
Error messages shown on the bottom line of the display.
Alarm
Conditions that could result in unacceptable defects in the process and which
automatically generate an emergency stop. When such a fault occurs, the error
message must be acknowledged by pressing after the fault has been corrected.
Error messages are displayed in sequence by the system and can be inspected in
the ERROR LIST menu. The system can store up to 20 me ssages, after which the
oldest m essages are erased as new messages are added at the top of the list.
S Select ERROR LIST and press .
S Step through the list with .
To erase the errors press
+
.
S Return to the PRESET SYSTEM MENU with
+
.
