12.1.2 Function settings available for FREE2AX:

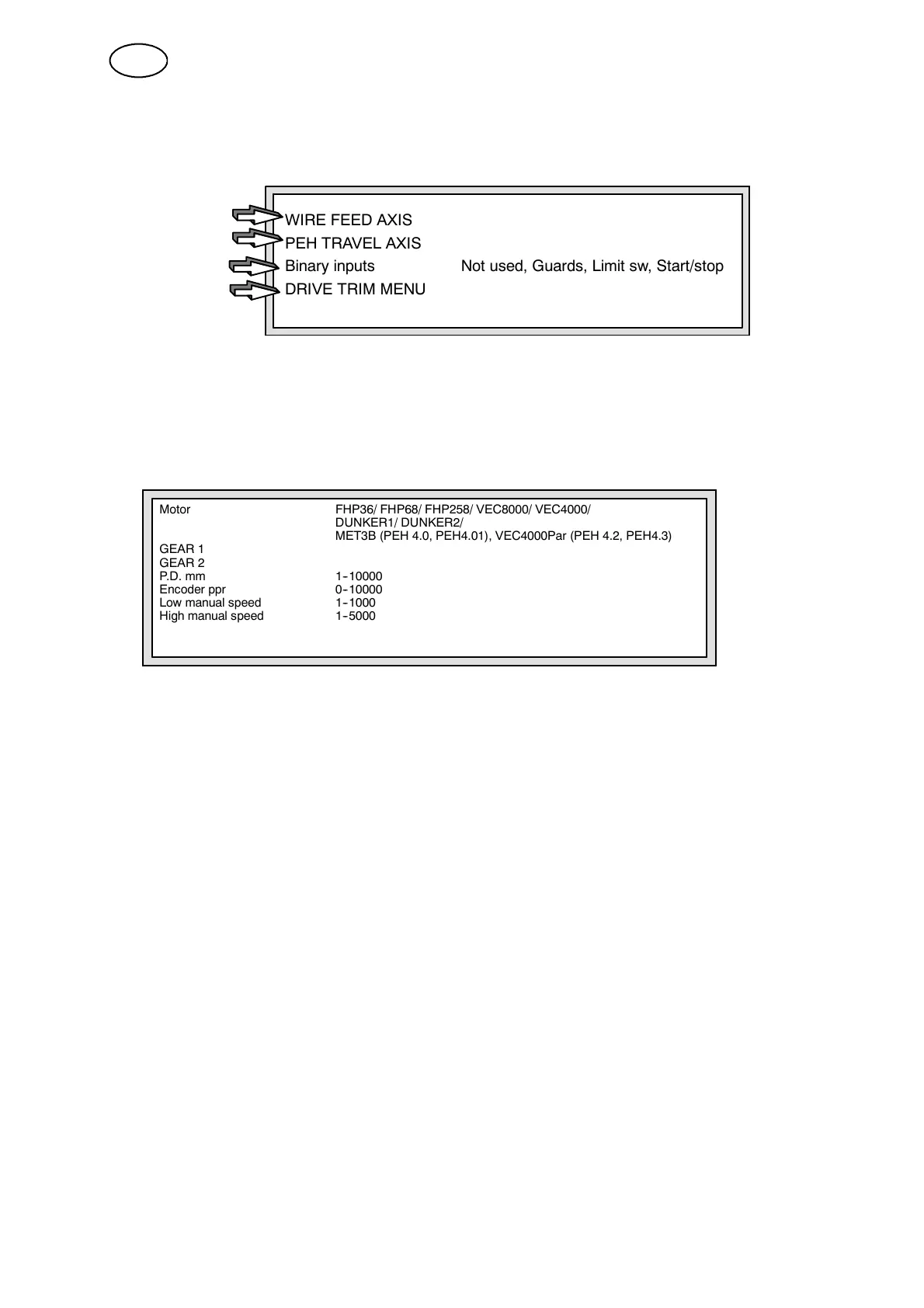

The following menu is shown when FREE2AX has been selected:
WIRE FEED AXIS
PEH TRAVEL AXIS
Binary inputs Not used, Guards, Limit sw, Start/stop
DRIVE TRIM MENU
See on page 32
See on page 32
See on page 34
See on page 35
1. WIRE FEED AXIS / PEH TRAVEL AXIS
WIRE FEED AXIS is used to adjust the wire feed motor.
PEH TRAVEL AXIS is used to adjust the travel motor.
The following menu is shown when either WIRE FEED AXIS or
PEH TRAVEL AXIS has been selected:
Motor FHP36/ FHP68/ FHP258/ VEC8000/ VEC4000/
DUNKER1/ DUNKER2/
MET3B (PEH 4.0, PEH4.01), VEC4000Par (PEH 4.2, PEH4.3)
GEAR 1
GEAR 2
P.D. mm 1--10000
Encoder ppr 0--10000
Low manual speed 1--1000
High manual speed 1--5000
GEAR1 and GEAR2 see on page 33.
P.D. mm is the feed roller diameter (effective diameter of the gearwheel).
Encoder ppr is the number of pulses per revolution or tacho pulses per
revolution. The default value is 6.
“Low manual speed”, the default value is 100
N.B Only for Wire feed motor.
The travel motor follows the value entered into the M AIN MENU.
“High manual speed”, the default value is 150.
Note that in the rows for P.D. mm, Encoder ppr, “Low manual speed” and
“High manual speed” you enter your own values if necessary.
