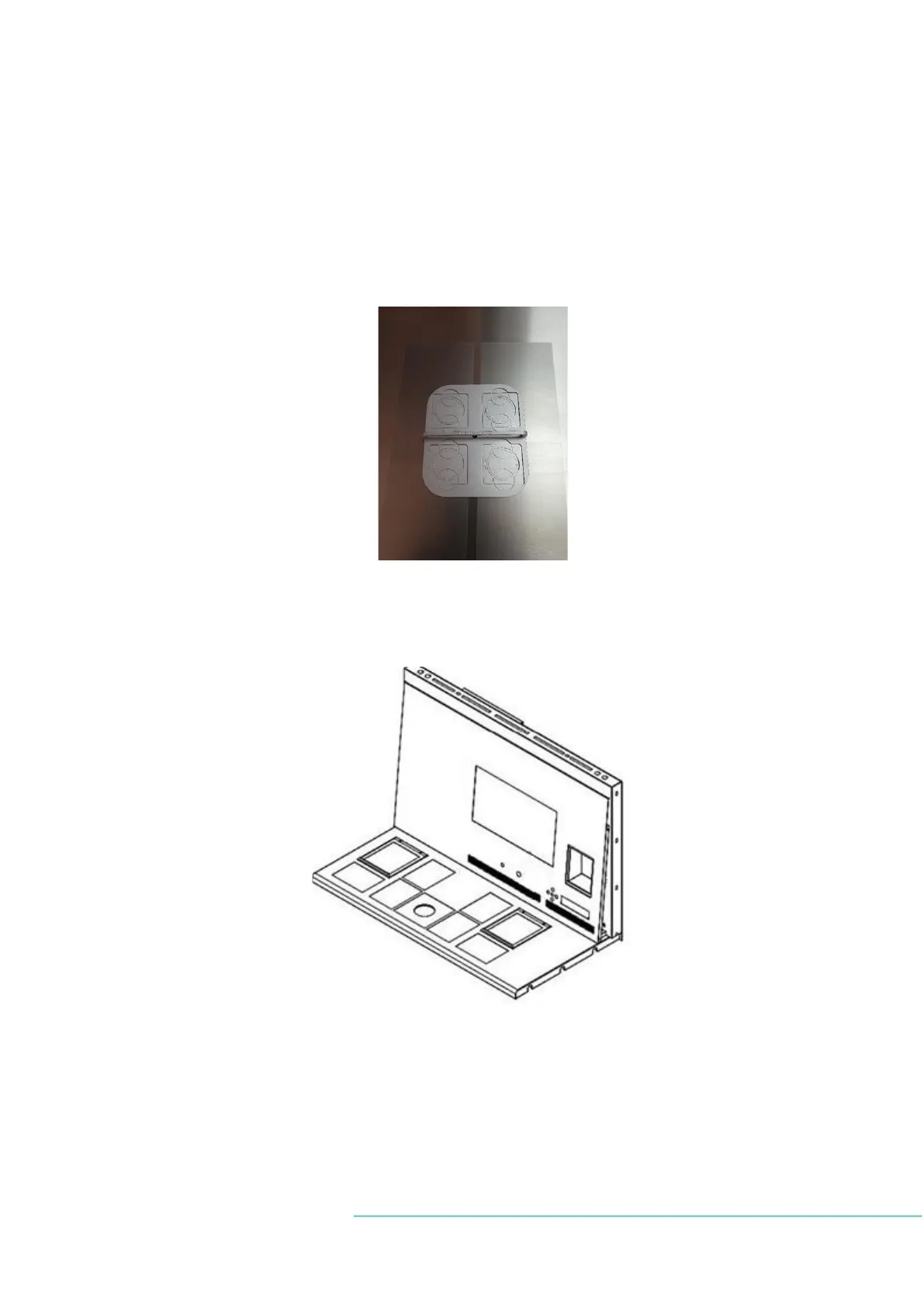

Figure 12.8 Gas hood placed over the gas nozzle
When the dishes are placed under the gas hood, keep them covered by lids. The dishes may
be placed directly on a warm surface, but they must be kept in a carry tray.
Figure 12.9 Carry tray
12.2 MAW
®
with compartments
Figure 12.10 MAW
®
with compartments
Gas flows and circuits in both compartments through the internal fan. The fan starts auto-
matically when the flow is set.
Using the carry tray, several dishes may be conveniently transported between the CO
2
incubator and the workstation.
