Names and Functions of Parts
28
Platinous User’s Manual

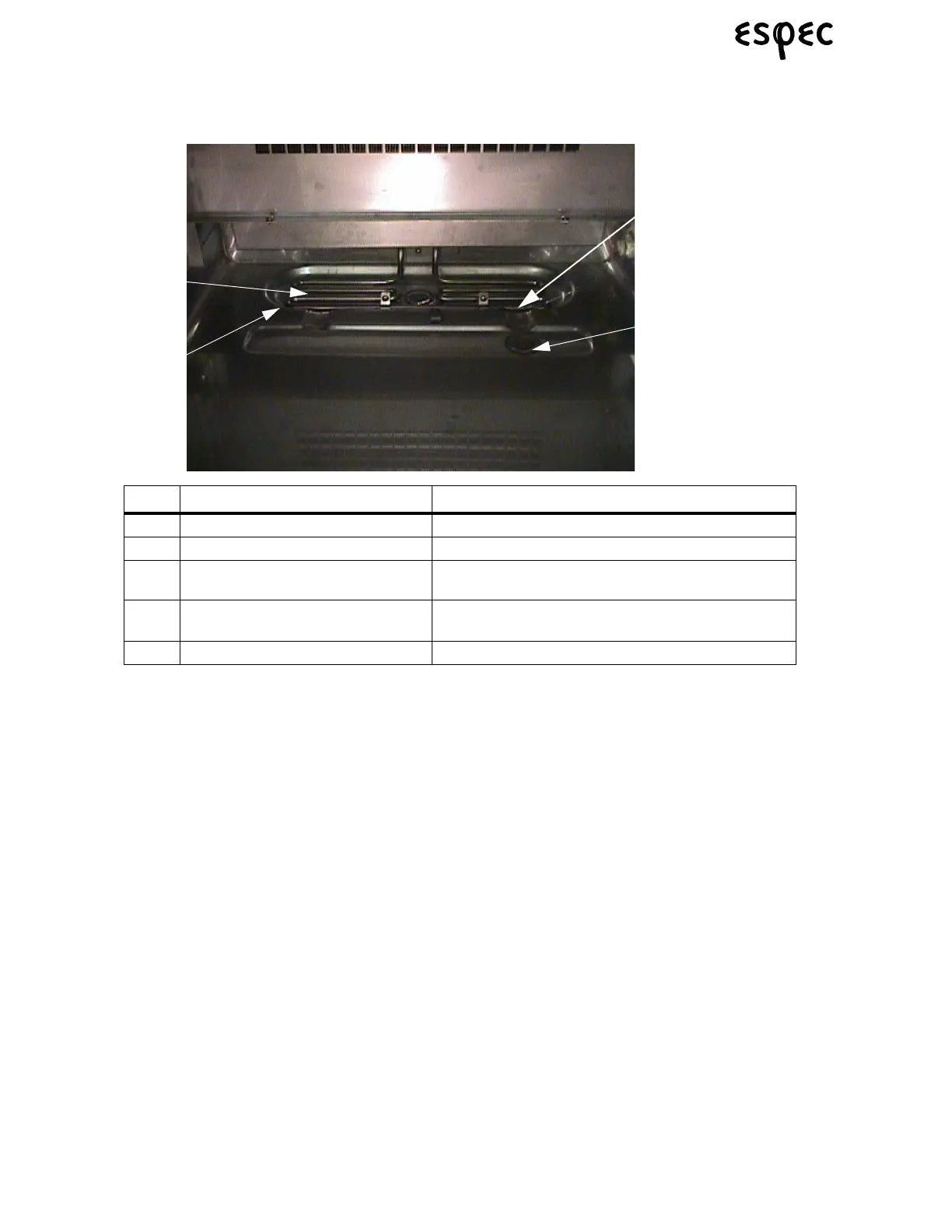

FIGURE 4.14. UNDER TEST AREA FLOOR
*Not provided on temperature only chambers
Name Function/Use
(1) Humidifying Heater* Evaporates water in the humidifying tray.
(2) Humidifying Tray Holds humidifying water.
(3) Humidifying Heater Temp. Safety* Prevents the heater from overheating when humidifying
water is low.
(4) Drain Outlet Releases internal pressure buildup and drains overflow
from the humidifying tray to the outside.
(5) Protective Grille (not shown) Prevents direct contact with the humidifying heater.
Drain Outlet (4)
Humidifying Heater
Temp. Safety (3)
Humidifying Heater
(1)
Humidifying Tray (2)
To Next Page
