Platinous User’s Manual 41
Installation
5.4 Compressor Shipping Bracket Removal
1. Loosen bolts (do not completely remove) holding compressor feet.
2. Remove all 3 brackets (red) per compressor.
3. Re-tighten bolts.

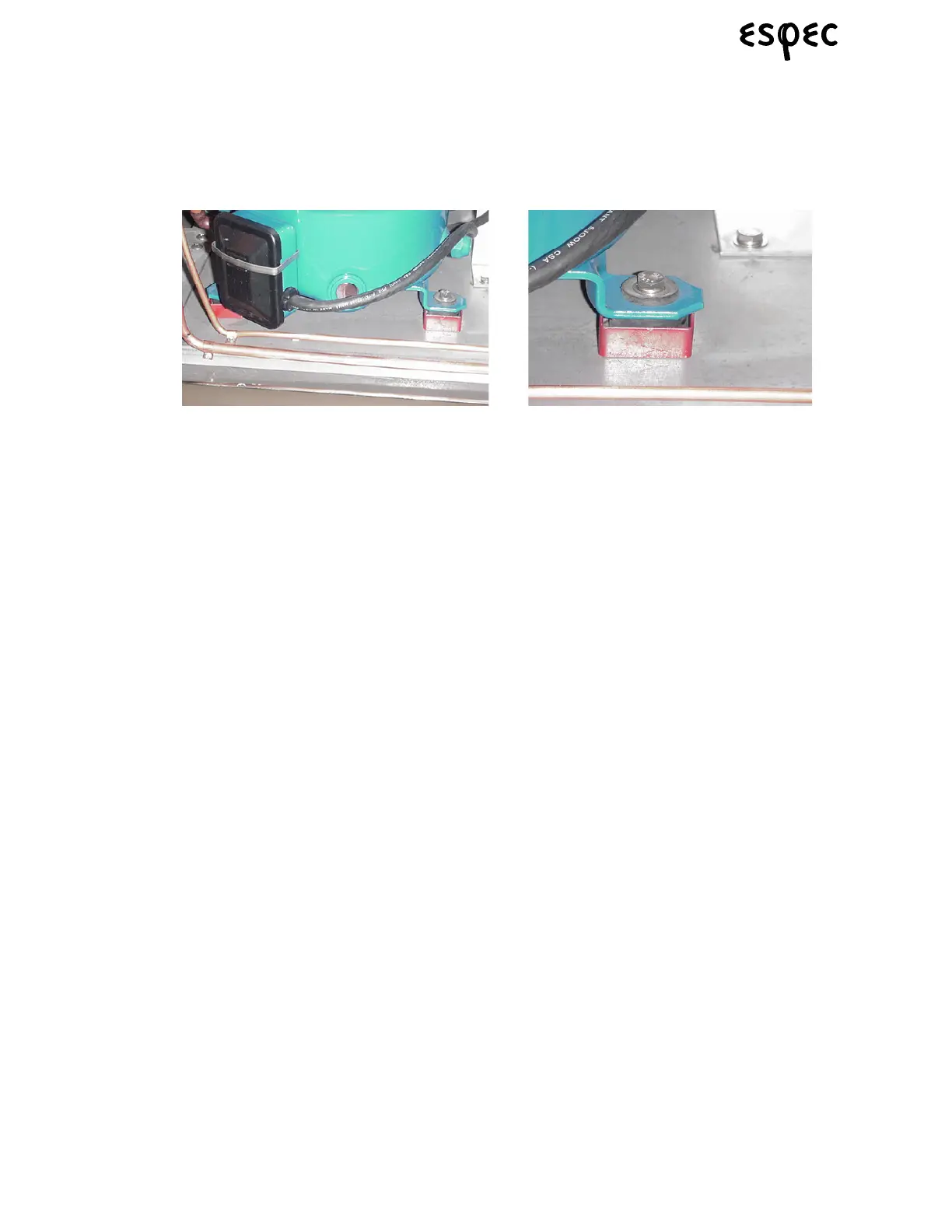

FIGURE 5.22. SHIPPING BRACKET
