Platinous User’s Manual 71
Operation
To power the lamp (equipment with 2A or more power)
Be sure to fit the line with a suitable capacity contactor and fuse.

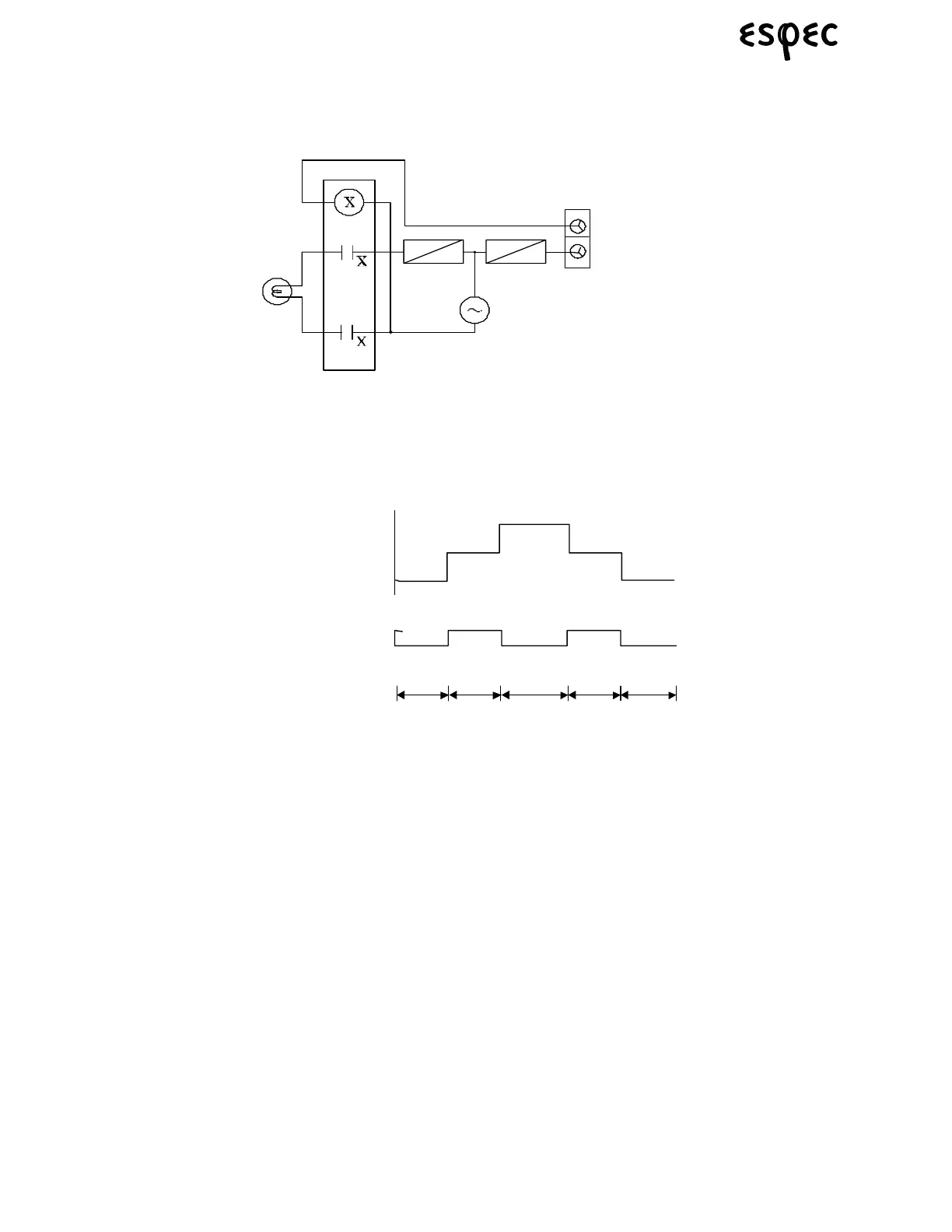

FIGURE 6.42. TIME SIGNAL TERMINAL (2A OR MORE)
2. Turn the time signal ON for Steps 2 and 4 of the program.
Example 2: Following is an example 5-step program that charges specimens in steps 2 and 4.
FIGURE 6.43. EXAMPLE PROGRAM
Procedure:
1. Connect the specimens to the time signal terminals and specimen power supply control terminals as
shown in the following diagrams.
Lam p
Fuse
Fuse
Power
supply
Time signal inlet
Target
temperature
(°C)
80
50
20
Time signal
ON
OFF
Step No.
1 2 3 4 5
