Use and maintenance manual 03.01 – 22/06/2016 49
SUBSTITUTING THE BULBS OF THE FRONT
DIRECTION INDICATORS
SUBSTITUTING THE BULBS OF THE REAR
LIGHTS
To substitute the bulb you must be
proceed as follows:

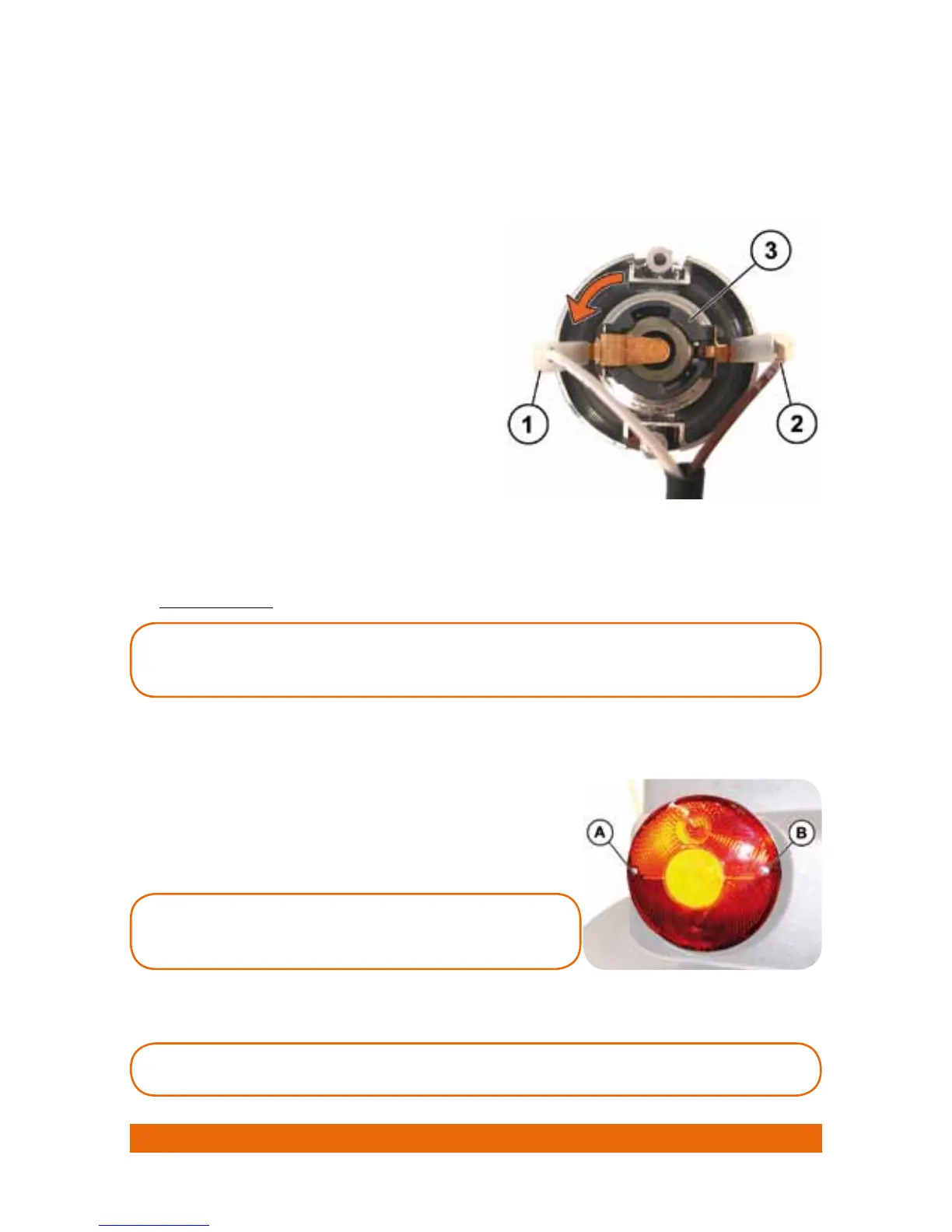

1. Disconnect connectors 1 and 2.
2. Rotate the lamp-carrier 3
anticlockwise until it unhooks.
3. Take out the bulb from the lamp
carrier with a slight pressure and
simultaneous anticlockwise
rotation.
4. Substitute the bulb and proceed
inversely to remount it, taking
care that the little teeth of
the lamp-carrier coincide with
the corresponding positions.
Type of bulb: 12VRY10W
In order to substitute the bulbs, rst
proceed by taking away the lid of the
light, by unfastening screws A and B.
! WARNING Bulb substitution must
take place with the vehicle turned off.
The instructions refer to the left lamp. For the right-hand side one, opera-
tions are identical.
! WARNING Do not remount the lid of the lamp inverted.
! WARNING Bulb substitution must take place with the vehicle turned
off.
