Estun E200P User Manual

E200P Operation Manual
4

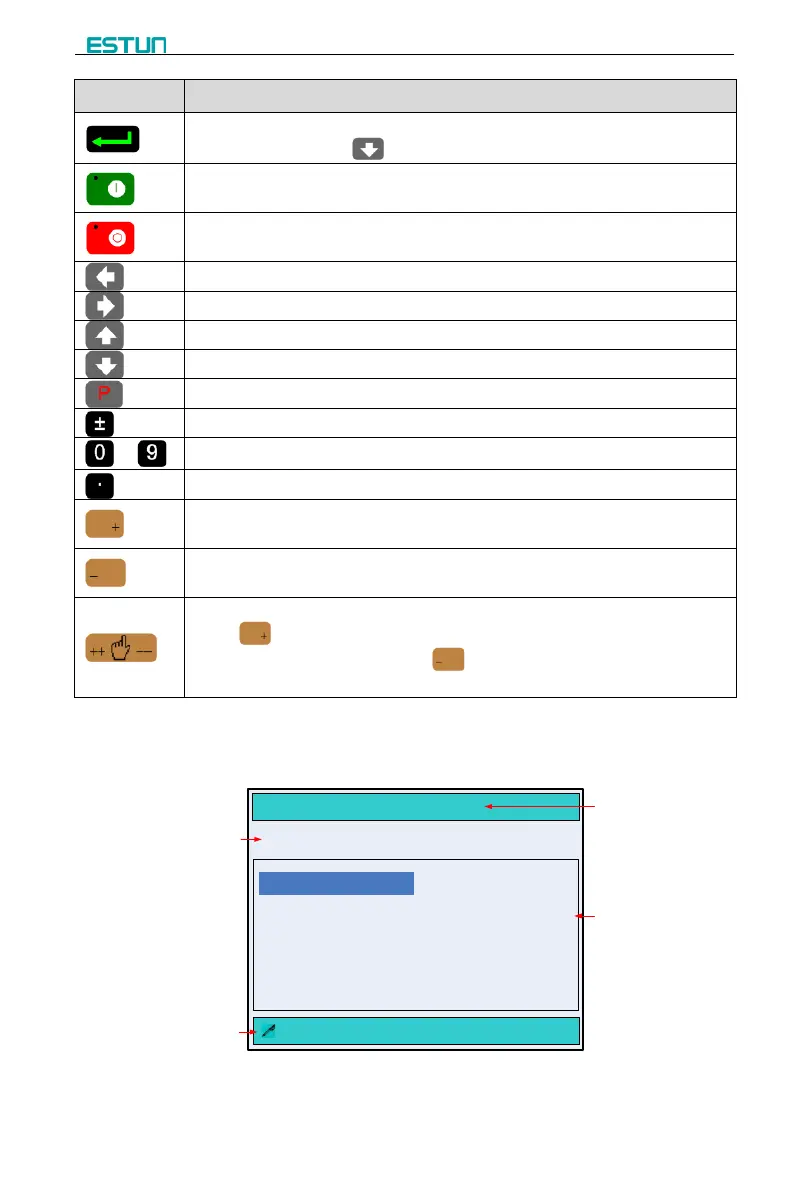

Key Function Description
Enter key: confirm the input content. If no content is input, the key has the similar
function to direction key .
Start key: automatic start-up, top left corner of the key is operation indicator
LED. When operation is started, this indicator LED is on.
Stop key: stop operation, top left corner of the key is Stop indicator LED. When
initialize normal start-up and no operation, this indicator LED is on.
Left direction key: page forward, cursor remove
Right direction key: page backward, cursor remove
Up direction key: select parameter upward
Down direction key: select parameter downward
Function switch: switch over different function pages
Symbolic key: user input symbol, or start diagnosis.
~
Numeric key: when setting parameter, input value.
Decimal point key: when set up parameter, input decimal point.
Manual movement key: in case of manual adjustment, make adjustment object
move in forward direction at low speed.
Manual movement key: in case of manual adjustment, make adjustment object
move in backward direction at low speed.
High speed selection key: in case of manual adjustment, press this key and
press simultaneously, make adjustment object move in increasing
direction at high speed, then press , make adjustment object move in
decreasing direction at high speed.
1.3 Display
SINGLE
: DestPosX Unit: mm
X
= 100.50 Y = 120.05
XP = 100.50 YP
= 300.00
DX
= 20.00 HT =
2.00
DLY= 2.00 PP = 150
CP = 100 OPN= 0.00
XP
= 120.00
Page name
Interpretation
and Unit
Parameter
editing area
Current Position
Figure 1-2 Display area
 Page name: here shows the name of the current page.
