Wiring the outputs
5.4. Wiring the outputs
5.4.1. Servo connection
All commercially available RC model building servos with a three-
pole connection and positive pulse can be used. The SwitchPilot
3 Servo supplies them with 5V. Figure 7 shows the general con-
nection.

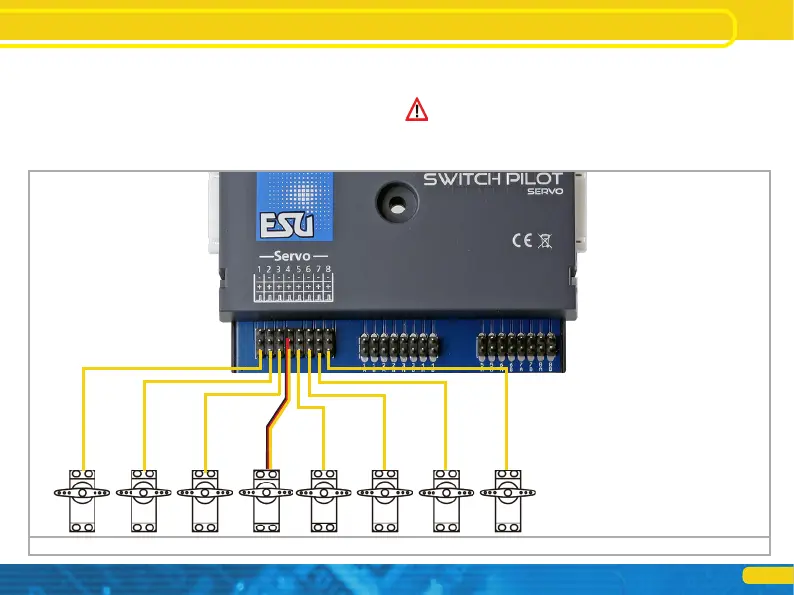

Figure 7: Servo connection
Simply plug the connection cable of the servo into the correspon-
ding socket on the SwitchPilot (servo). The pulse output is usually
the white or orange wire.
Note the connection drawing on the housing of the SwitchPilot
3 Servo. An incorrect connection can destroy the servo or the
SwitchPilot!
