5.5.2. Turnout frog polarization
With the SwitchPilot Exension module, turnout frogs can be po-
larized very easily.
Wiring the outputs

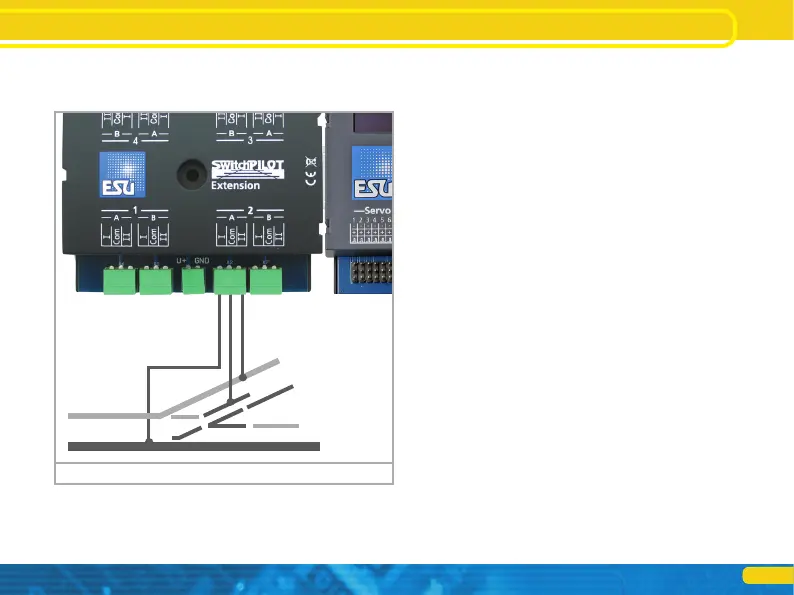

Figure 9: Polarization with SwitchPilot Extension
