15-20 mm
5 mm
12 Nm
1
1 2 3
2 3
4
5
5 mm

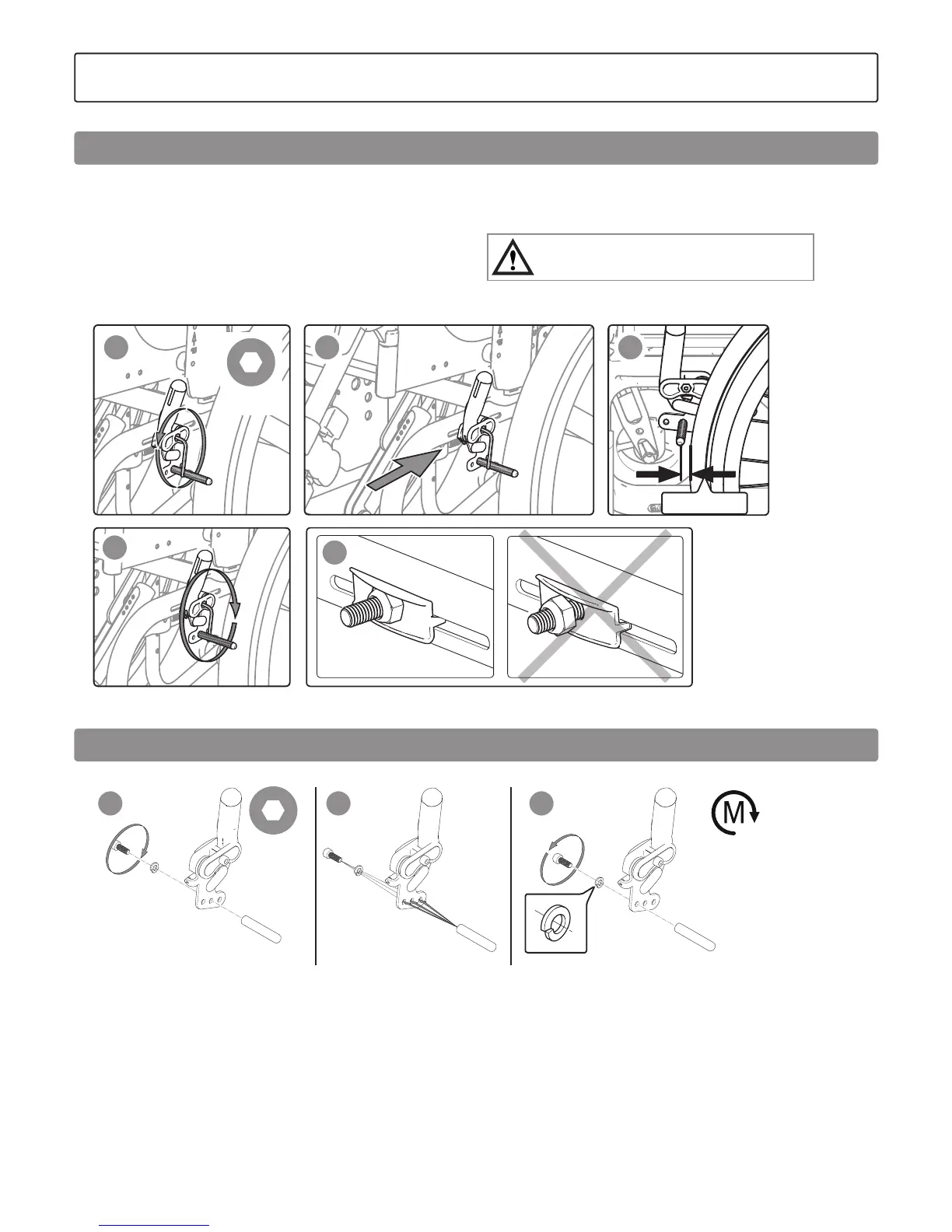

The brakes are variably settable
1. Loosen the screw a few turns.
2. Adjust the brake position
3. The brake block must be approximately 15-20 mm from the tyre
when the brake is not being applied.
4. Ensure that the brake is positioned straight in the track. Tighten
the nut with approximately 5 Nm.
Test the brakes!
5. Make sure that the nut is positioned correctly and locks into the
nut pocket on the inside.
The brakes are parking brakes and must not be used
as motion brakes.
8. Readjustments
Brake, adjustment
Brake lever adjustment
