28

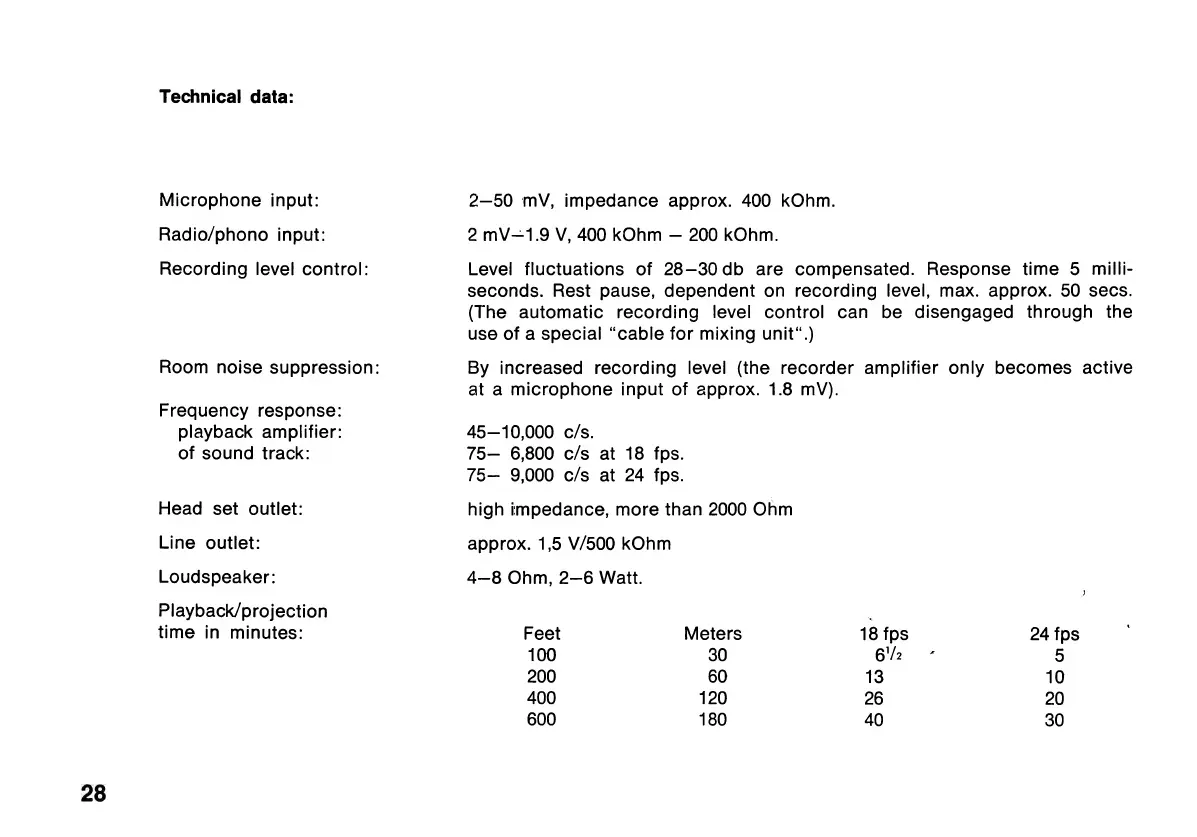

Technical data:
Microphone input:
Radio/phono input:
Recording level control:
Room noise suppression:
Frequency response:
playback amplifier:
of sound track:
Head set outlet:
Line outlet:
Loudspeaker:
Playback/projection
time in minutes:
2—50 mV, impedance approx. 400 kOhm.
2 mV—1.9 V, 400 kOhm — 200 kOhm.
Level fluctuations of 28-—30db are compensated. Response time 5 milli-
seconds. Rest pause, dependent on recording level, max. approx. 50 secs.
(The automatic recording level control can be disengaged through the
use of a special “cable for mixing unit“.)
By increased recording level (the recorder amplifier only becomes active
at a microphone input of approx. 1.8 mV).
45—10,000 c/s.
75— 6,800 c/s at 18 fps.
75— 9,000 c/s at 24 fps.
high impedance, more than 2000 Ohm
approx. 1,5 V/500 kOhm
4—8 Ohm, 2—6 Watt.
