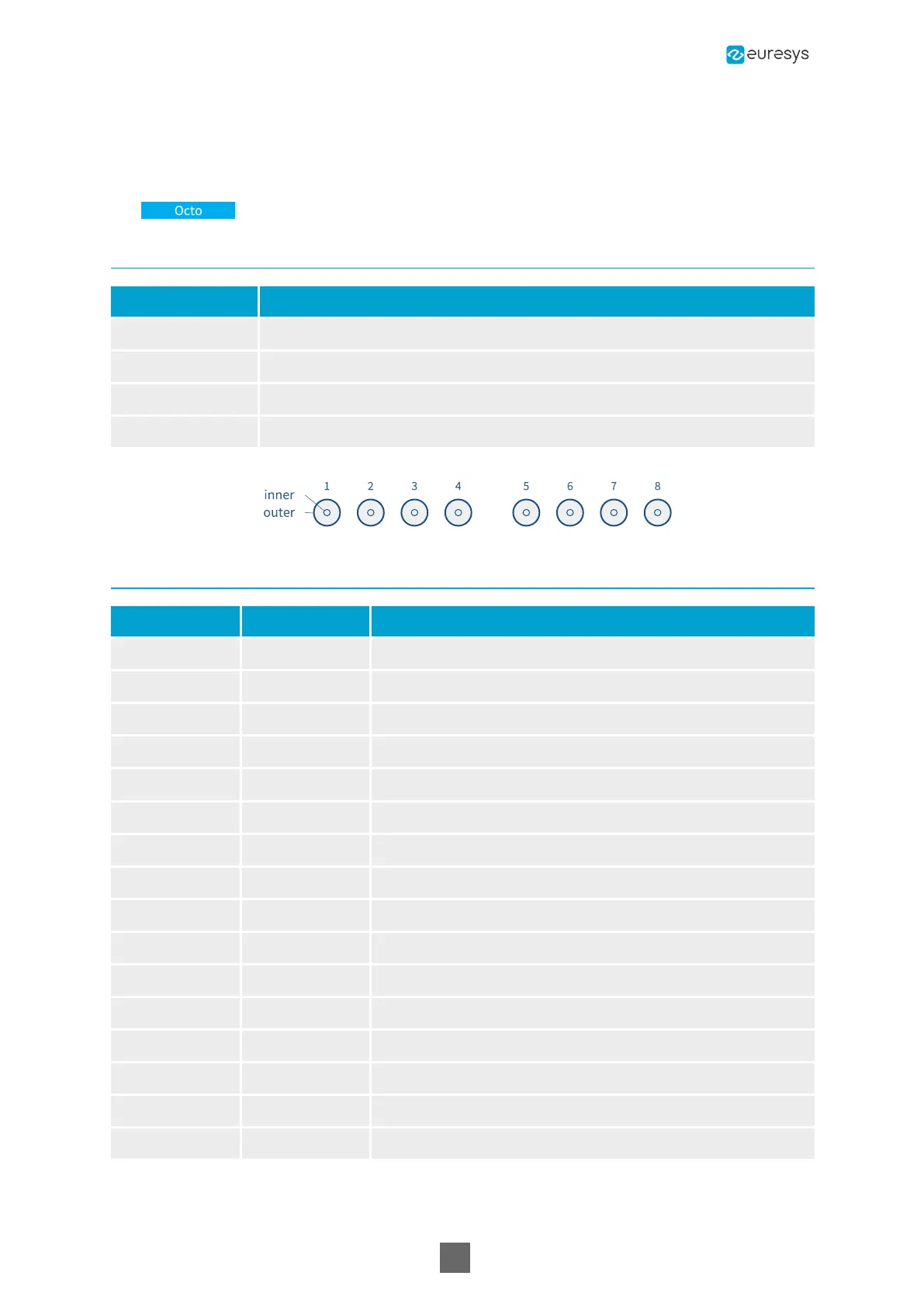

DIN 8 CoaXPress Host Connector
Applies to:
Connector description
Property Value
Name CoaXPress Host
Type 8 x DIN 1.0/2.3 75 Ohms coaxial receptacles
Location Card bracket
Usage CoaXPress Host Interface
Pin assignments
Pin Signal Usage
Inner1 CXP_A CoaXPress Host Connection A
Outer1 GND Ground
Inner2 CXP_B CoaXPress Host Connection B
Outer2 GND Ground
Inner3 CXP_C CoaXPress Host Connection C
Outer3 GND Ground
Inner4 CXP_D CoaXPress Host Connection D
Outer4 GND Ground
Inner5 CXP_E CoaXPress Host Connection E
Outer5 GND Ground
Inner6 CXP_F CoaXPress Host Connection F
Outer6 GND Ground
Inner7 CXP_G CoaXPress Host Connection G
Outer7 GND Ground
Inner8 CXP_H CoaXPress Host Connection H
Outer8 GND Ground
