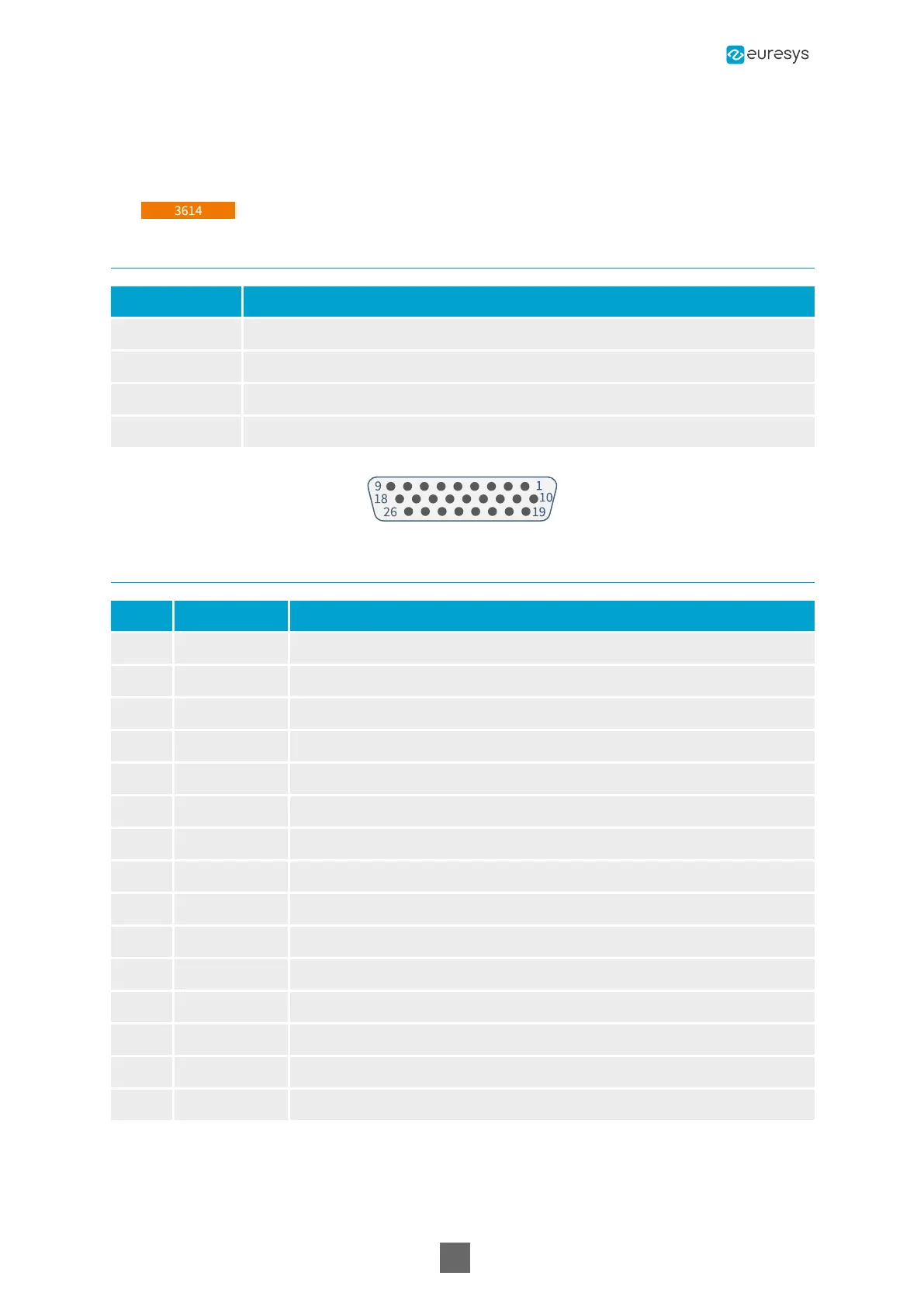

3614 External I/O 1 Connector
Applies to:
Connector description
Property Value
Name External I/O 1
Type 26-pin 3-row high-density female sub-D connector
Location Card bracket
Usage General purpose I/O and power output
Pin assignments
Pin Signal Usage
1 GND Ground
2 DIN12+ High-speed differential input #12 – Positive pole
3 IIN11+ Isolated input #11 – Positive pole
4 IIN13- Isolated input #13 – Negative pole
5 IIN14- Isolated input #14 – Negative pole
6 IOUT12- Isolated contact output #12 – Negative pole
7 GND Ground
8 Not connected
9 GND Ground
10 GND Ground
11 DIN12- High-speed differential input #12 – Negative pole
12 IIN11- Isolated input #11 – Negative pole
13 IIN12+ Isolated input #12 – Positive pole
14 IIN13+ Isolated input #13 – Positive pole
15 IIN14+ Isolated input #14 – Positive pole
Coaxlink Hardware Manual
