Board Status LED

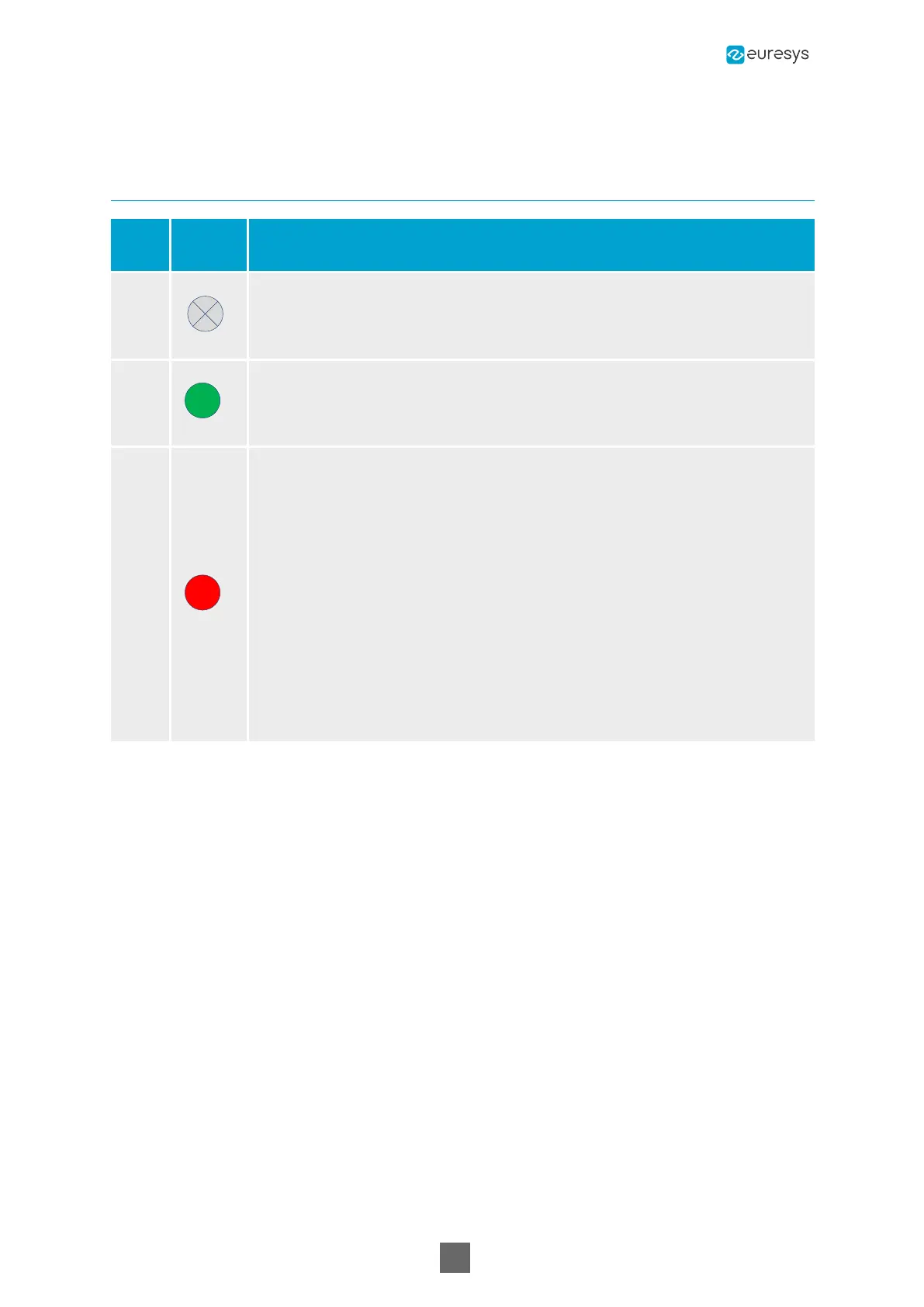

Board status LED indicator states
LED
state
Symbol Meaning
Off
No power.
The board is not powered or the power distribution network is not
functional.
Solid
green
Board status OK.
The main power distribution network is operational and the FPGA start-up
procedure has successfully completed.
Solid
red
Board status NOK.
Possible causes are:
● There is no power delivered on the +12 V rail of the PCI Express
connector slot
● The FPGA start-up procedure is not completed. The normal completion
time is around 100 milliseconds.
● At least one power converter of the main power distribution network is
unable to operate properly. This might be caused by excessive
temperature due to inadequate board cooling, accidental short-circuits
having blown one (or more) protection fuses, inappropriate supply
voltages, etc.
