3.11. TTL Input/5 V CMOS Output
Applies to:

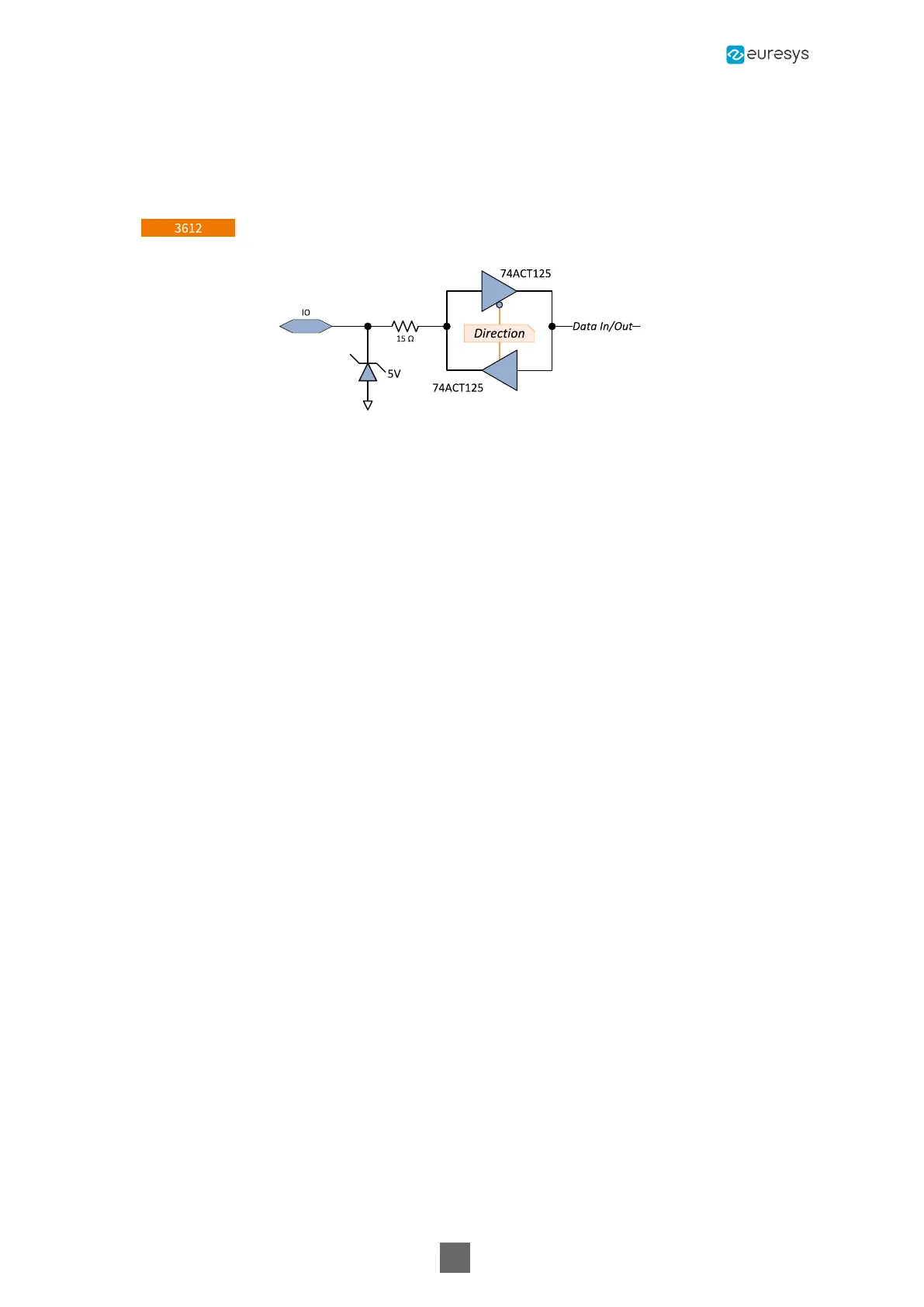

TTL Input/5 V CMOS Output Simplified schematic
The port implements a 5 V CMOS driver and a TTL-compliant receiver.
