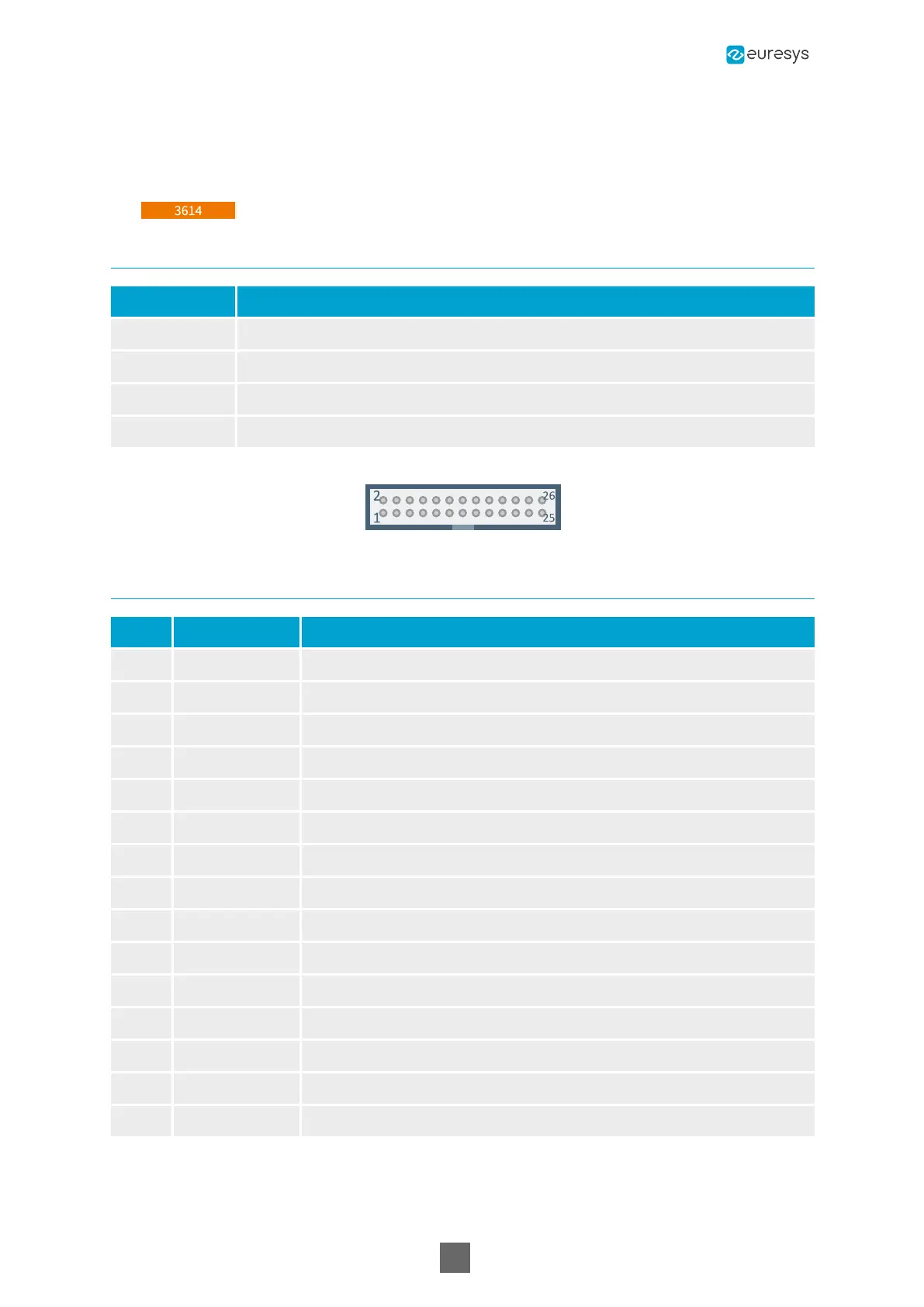

3614 Internal I/O 2 Connector
Applies to:
Connector description
Property Value
Name Internal I/O 2
Type 26-pin dual-row 0.1" pitch pin header with shrouding
Location Printed circuit board
Usage General purpose I/O and power output
Pin assignments
Pin Signal Usage
1 GND Ground
2 GND Ground
3 DIN21+ High-speed differential input #21 – Positive pole
4 DIN21- High-speed differential input #21 – Negative pole
5 DIN22+ High-speed differential input #22 – Positive pole
6 DIN22- High-speed differential input #22 – Negative pole
7 IIN21+ Isolated input #21 – Positive pole
8 IIN21- Isolated input #21 – Negative pole
9 IIN22+ Isolated input #22 – Positive pole
10 IIN22- Isolated input #22 – Negative pole
11 IIN23+ Isolated input #23 – Positive pole
12 IIN23- Isolated input #23 – Negative pole
13 IIN24+ Isolated input #24 – Positive pole
14 IIN24- Isolated input #24 – Negative pole
15 IOUT21+ Isolated contact output #21 – Positive pole
