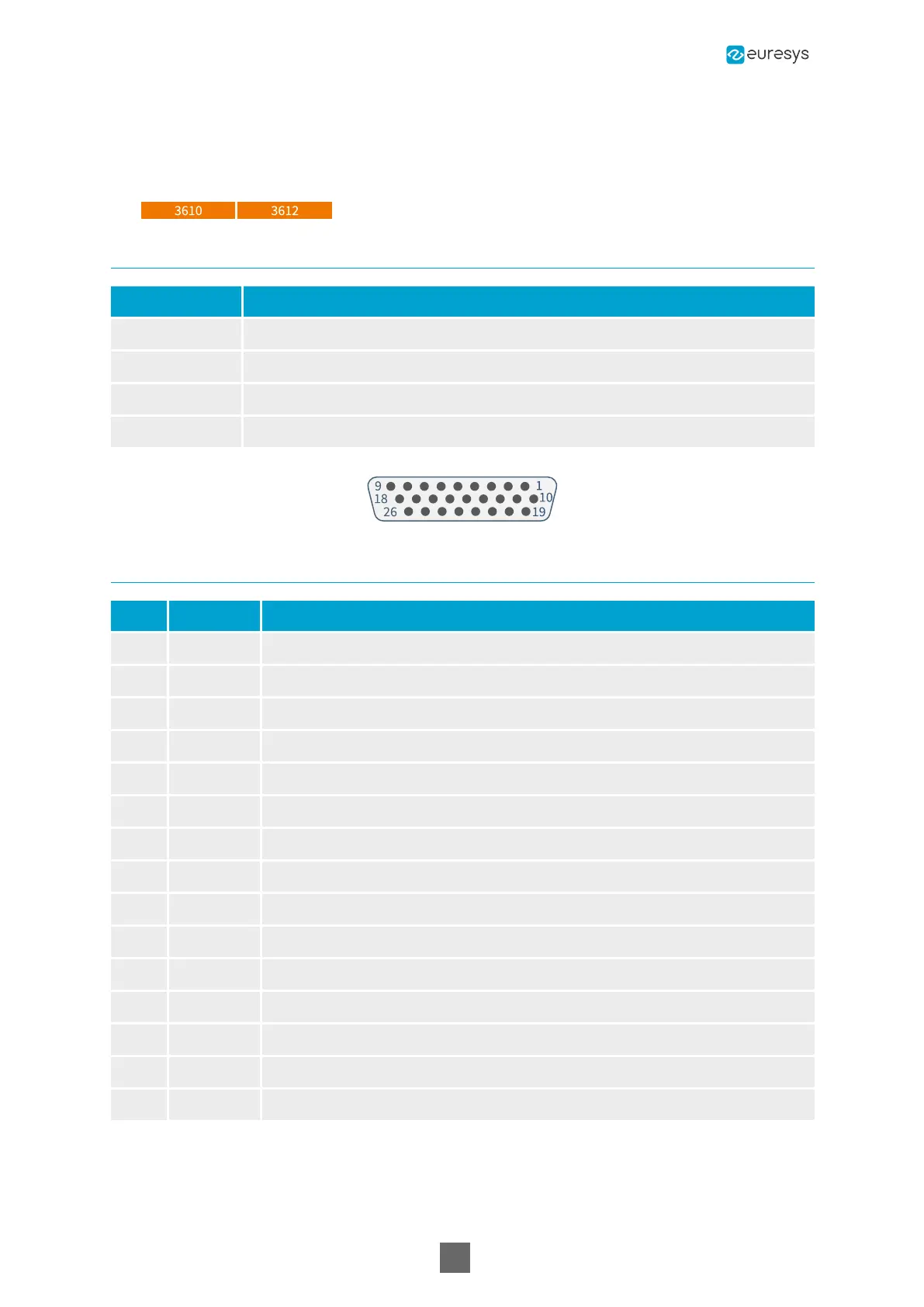

3610/3612 External I/O Connector
Applies to:
Connector description
Property Value
Name External I/O
Type 26-pin 3-row high-density female sub-D connector
Location Card bracket
Usage General purpose I/O and power output
Pin assignments
Pin Signal Usage
1 GND Ground
2 MIO03 Single-ended I/O #3 or differential I/O #3 positive pole
3 MIO05 Single-ended I/O #5 or differential I/O #5 positive pole
4 GND Ground
5 MIO10- Single-ended I/O #10 or differential I/O #9 negative pole
6 MIO14 Single-ended I/O #14 or differential I/O #13 negative pole
7 MIO18 Single-ended I/O #18 or differential I/O #17 negative pole
8 GND Ground
9 MIO19 Single-ended I/O #19 or differential I/O #19 positive pole
10 GND Ground
11 MIO04 Single-ended I/O #4 or differential I/O #3 negative pole
12 MIO06- Single-ended I/O #6 or differential I/O #5 negative pole
13 MIO07 Single-ended I/O #7 or differential I/O #7 positive pole
14 GND Ground
15 MIO09 Single-ended I/O #9 or differential I/O #9 positive pole
Coaxlink Hardware Manual
