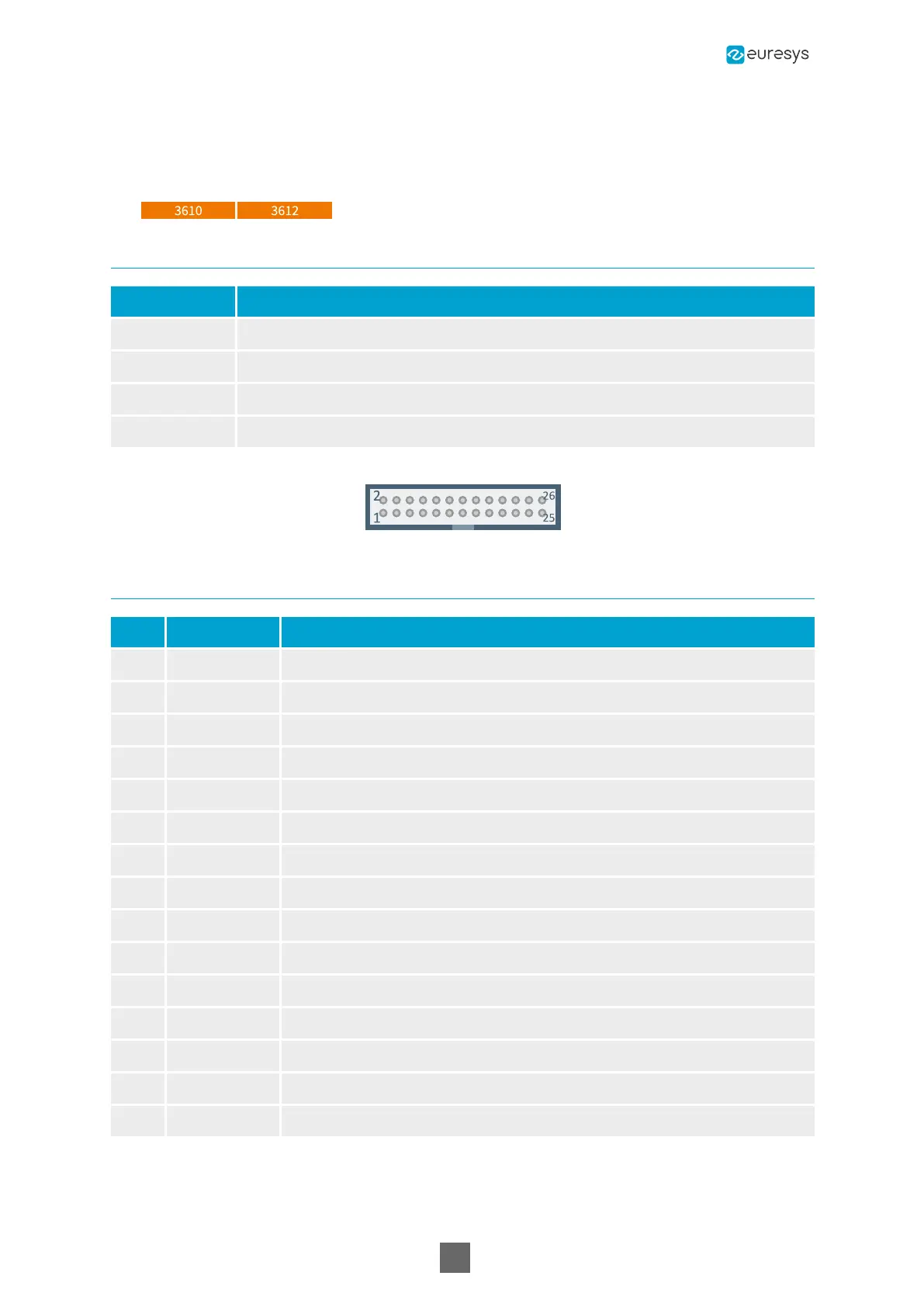

3610/3612 Internal I/O Connector
Applies to:
Connector description
Property Value
Name Internal I/O
Type 26-pin dual-row 0.1" pitch pin header with shrouding
Location Printed circuit board
Usage General purpose I/O and power output
Pin assignments
Pin Signal Usage
1 GND Ground
2 GND Ground
3 MIO01 Single-ended I/O #1 or differential I/O #1 positive pole
4 MIO02 Single-ended I/O #2 or differential I/O #1 negative pole
5 MIO03 Single-ended I/O #3 or differential I/O #3 positive pole
6 MIO04 Single-ended I/O #4 or differential I/O #3 negative pole
7 MIO05 Single-ended I/O #5 or differential I/O #5 positive pole
8 MIO06 Single-ended I/O #6 or differential I/O #5 negative pole
9 MIO07 Single-ended I/O #7 or differential I/O #7 positive pole
10 MIO08 Single-ended I/O #8 or differential I/O #7 negative pole
11 GND Ground
12 GND Ground
13 MIO09 Single-ended I/O #9 or differential I/O #9 positive pole
14 MIO10 Single-ended I/O #10 or differential I/O #9 negative pole
15 MIO11 Single-ended I/O #11 or differential I/O #11 positive pole
