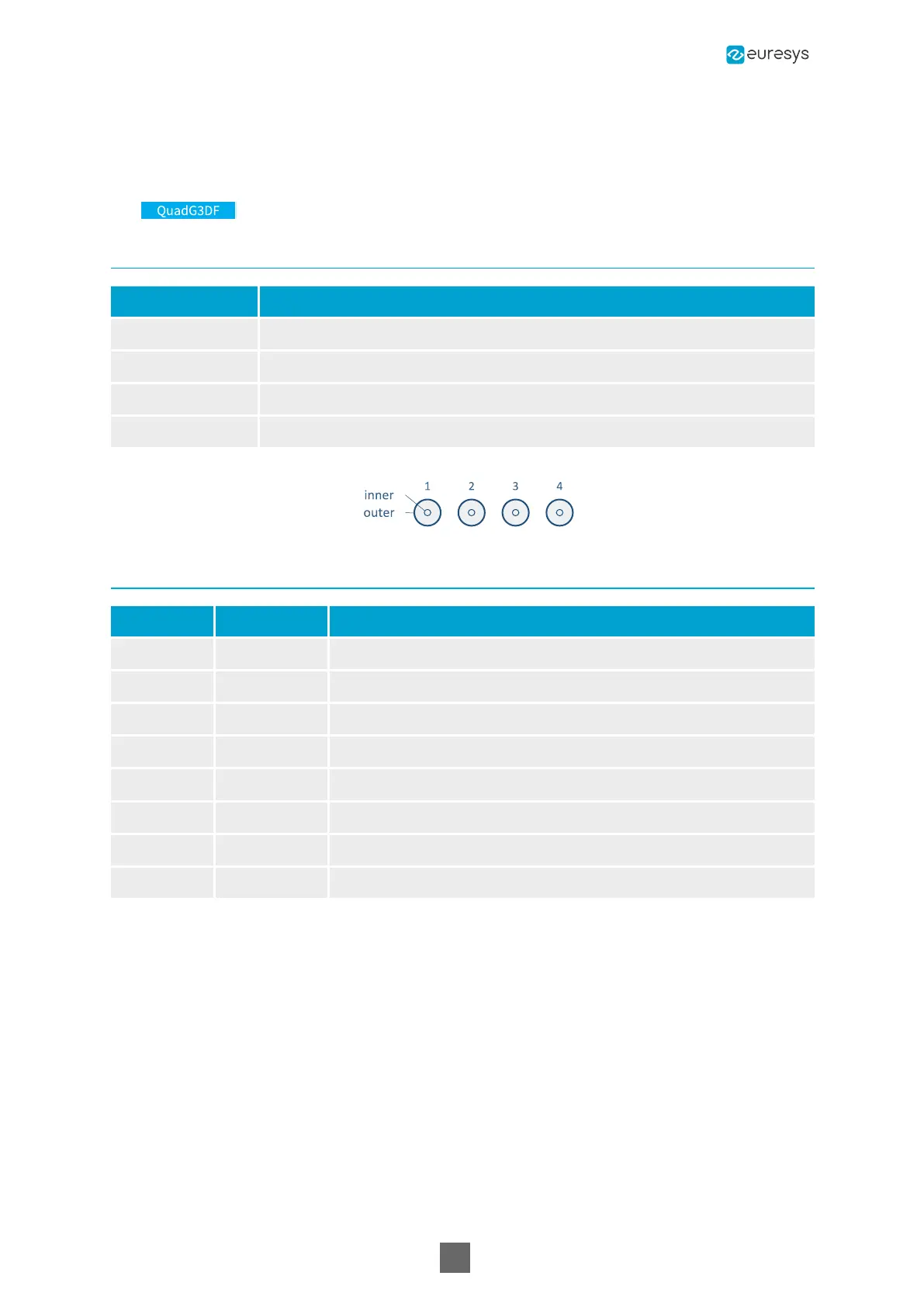

CoaXPress Data Forwarding Connector
Applies to:
Connector description
Property Value
Name CoaXPress Data Forwarding
Type 4 x DIN 1.0/2.3 75 Ohms coaxial receptacles
Location Card bracket
Usage CoaXPress Data Forwarding Interface
Pin assignments
Pin Signal Usage
Inner1 CXP_FA CoaXPress Data Forwarding Connection A
Outer1 GND Ground
Inner2 CXP_FB CoaXPress Data Forwarding Connection B
Outer2 GND Ground
Inner3 CXP_FC CoaXPress Data Forwarding Connection C
Outer3 GND Ground
Inner4 CXP_FD CoaXPress Data Forwarding Connection D
Outer4 GND Ground
