76

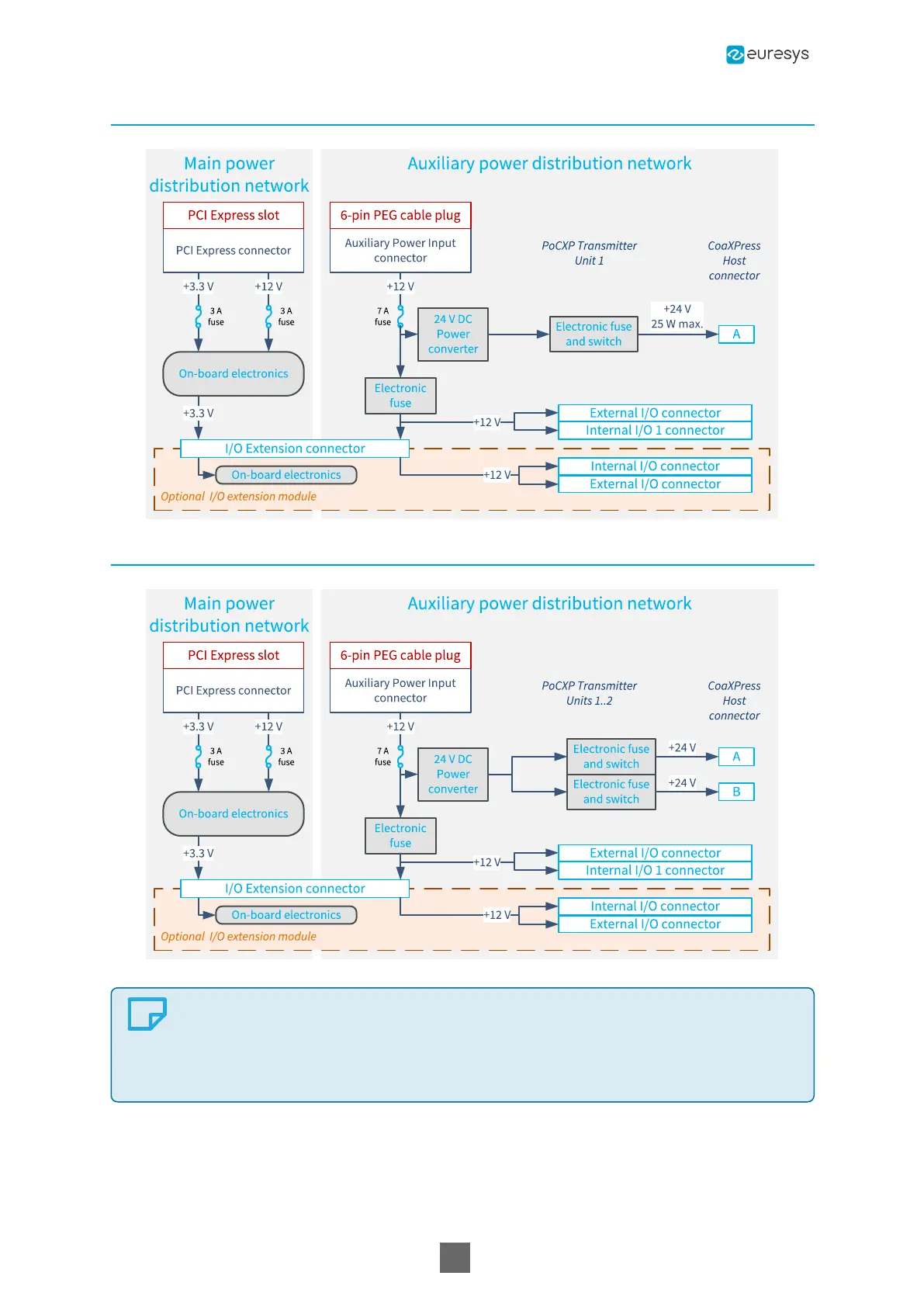

3621-LH Coaxlink Mono CXP-12 LH power distribution scheme
3622 Coaxlink Duo CXP-12 power distribution scheme
NOTE
□ The fuses are not serviceable! When blown, the card must be returned
to the factory.
□ Electronic fuses are self-resettable fuses.
Coaxlink Hardware Manual
