Introduction
1 - 2 System Specifications
1.Introduction

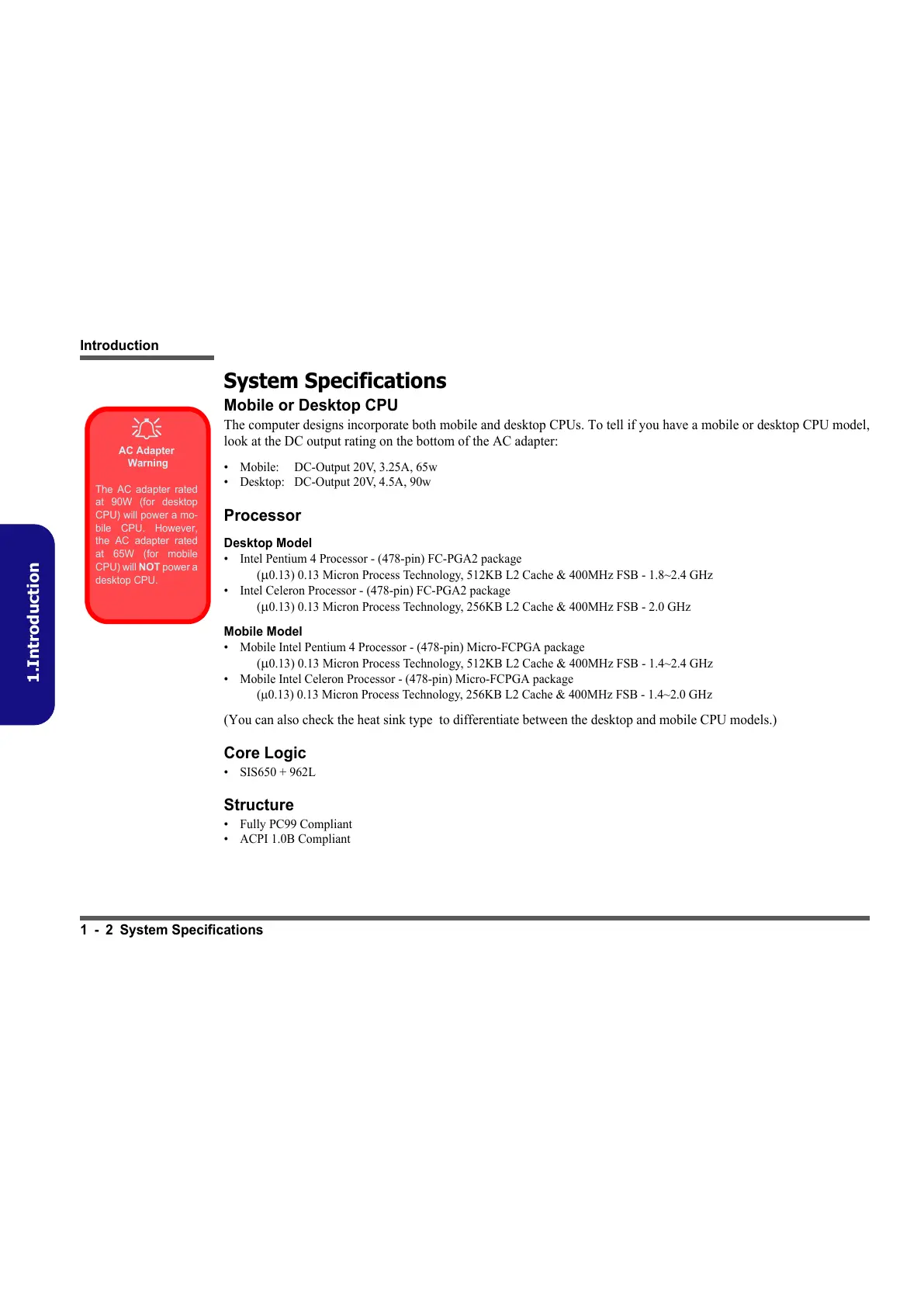

System Specifications
Mobile or Desktop CPU
The computer designs incorporate both mobile and desktop CPUs. To tell if you have a mobile or desktop CPU model,
look at the DC output rating on the bottom of the AC adapter:
• Mobile: DC-Output 20V, 3.25A, 65w
• Desktop: DC-Output 20V, 4.5A, 90w
Processor
Desktop Model
• Intel Pentium 4 Processor - (478-pin) FC-PGA2 package
(
µ0.13) 0.13 Micron Process Technology, 512KB L2 Cache & 400MHz FSB - 1.8~2.4 GHz
• Intel Celeron Processor - (478-pin) FC-PGA2 package
(
µ0.13) 0.13 Micron Process Technology, 256KB L2 Cache & 400MHz FSB - 2.0 GHz
Mobile Model
• Mobile Intel Pentium 4 Processor - (478-pin) Micro-FCPGA package
(
µ0.13) 0.13 Micron Process Technology, 512KB L2 Cache & 400MHz FSB - 1.4~2.4 GHz
• Mobile Intel Celeron Processor - (478-pin) Micro-FCPGA package
(µ0.13) 0.13 Micron Process Technology, 256KB L2 Cache & 400MHz FSB - 1.4~2.0 GHz
(You can also check the heat sink type to differentiate between the desktop and mobile CPU models.)
Core Logic
• SIS650 + 962L
Structure
• Fully PC99 Compliant
• ACPI 1.0B Compliant

AC Adapter
Warning
The AC adapter rated
at 90W (for desktop
CPU) will power a mo-
bile CPU. However,
the AC adapter rated
at 65W (for mobile
CPU) will NOT power a
desktop CPU.
