EUROCOM M22ES - Removing the Floppy Disk Drive Assembly

Disassembly
Removing the Floppy Disk Drive Assembly 2 - 15
2.Disassembly
Removing the Floppy Disk Drive Assembly
1. Remove the battery (page 2 - 6), keyboard (page 2 - 8), hard disk assembly (page 2 - 9), CPU (page 2 - 10), modem
(page 2 - 12), CD device (page 2 - 12) and bottom case (page 2 - 13).
2. Remove screw and hex nut from the FDD assembly.
3. Carefully disconnect the FDD cable and lift the FDD assembly off the mainboard (Figure 2 - 12).

4. FDD Assembly
•1 Screw
•1 Hex nut

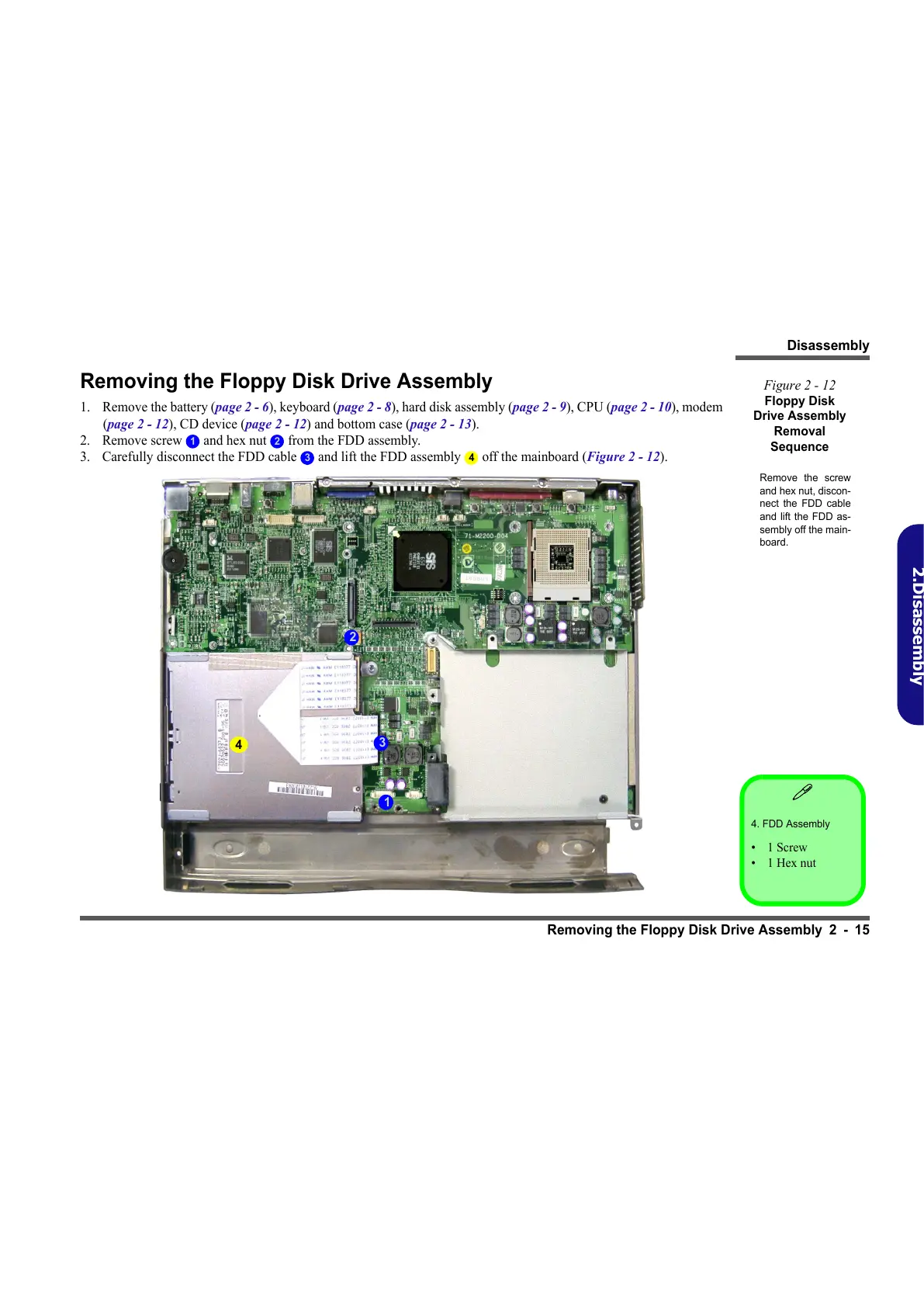

Figure 2 - 12
Floppy Disk
Drive Assembly
Removal
Sequence
Remove the screw
and hex nut, discon-
nect the FDD cable
and lift the FDD as-
sembly off the main-
board.
1 2
3 4
4
1
3
2
