EUROCOM M22ES - Removing the Bottom Case

Disassembly
Removing the Bottom Case 2 - 13
2.Disassembly
Removing the Bottom Case
1. Remove the battery (page 2 - 6), keyboard (page 2 - 8), hard disk assembly (page 2 - 9), CPU (page 2 - 10) and CD
device (page 2 - 12).
2. Turn the computer over and remove screws - (Figure 2 - 9).

5.Heat Sink
•4 Screws

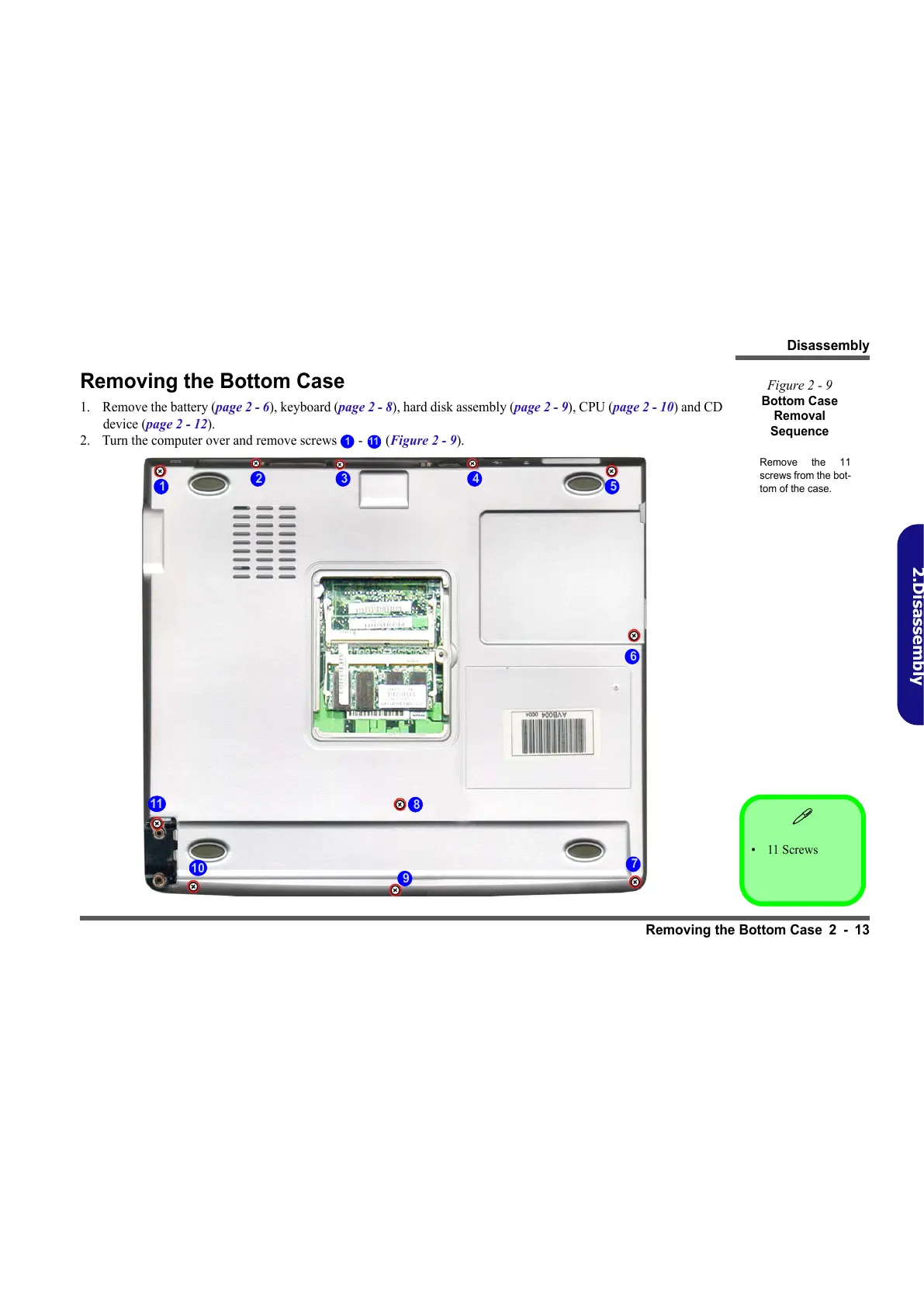

Figure 2 - 9
Bottom Case
Removal
Sequence
Remove the 11
screws from the bot-
tom of the case.
1
11
1
32 4
5
6
7
8
9
10
11

•11 Screws
