EUROCOM M22ES - External Locator - Rear & Bottom Views

Introduction
External Locator - Rear & Bottom Views 1 - 9
1.Introduction
External Locator - Rear & Bottom Views

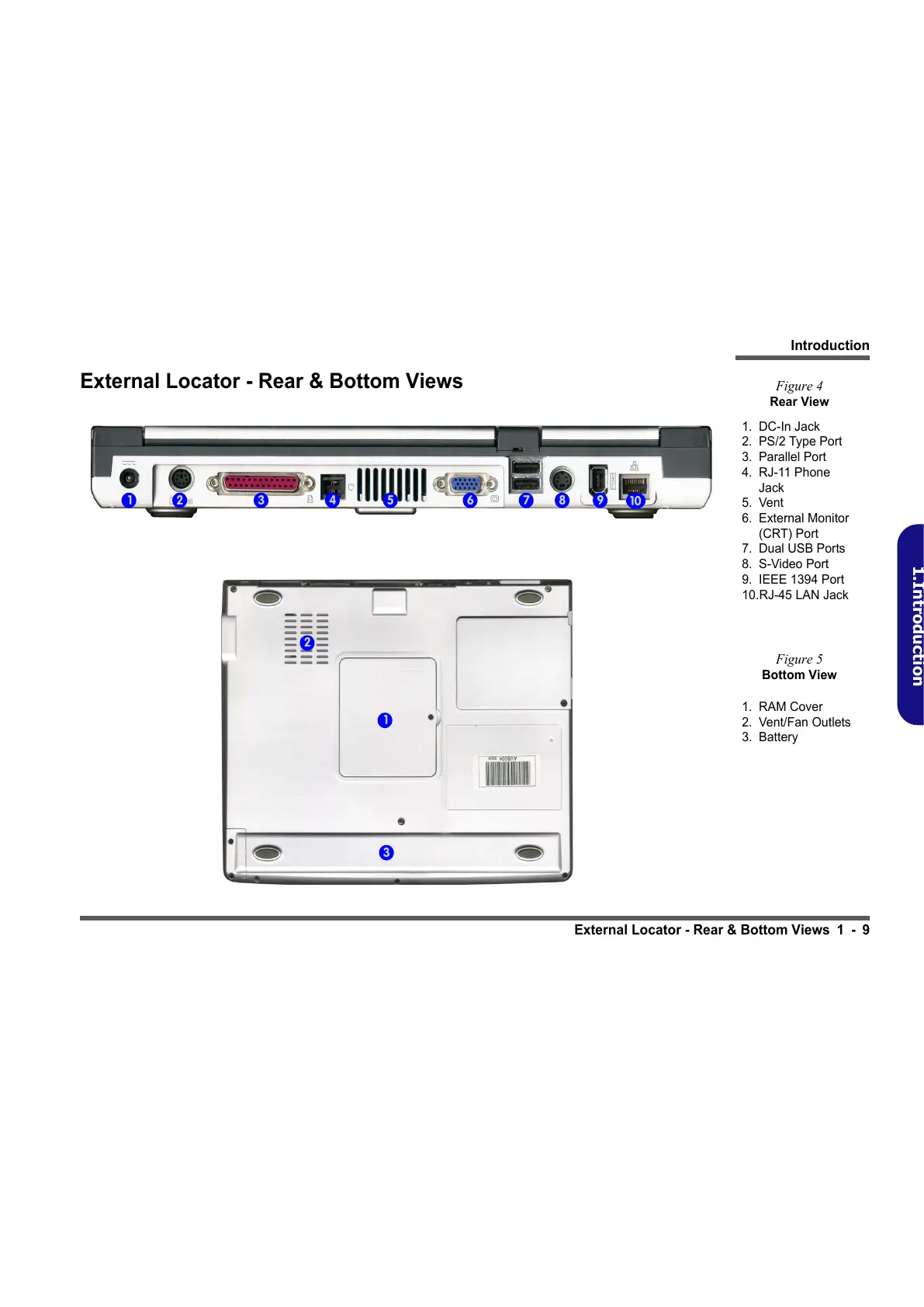

Figure 4
Rear View
1. DC-In Jack
2. PS/2 Type Port
3. Parallel Port
4. RJ-11 Phone
Jack
5. Vent
6. External Monitor
(CRT) Port
7. Dual USB Ports
8. S-Video Port
9. IEEE 1394 Port
10.RJ-45 LAN Jack
Figure 5
Bottom View
1. RAM Cover
2. Vent/Fan Outlets
3. Battery
1
2 3 4 5 6 7 8 9
10
2
3
1
