EUROCOM M22ES - Removing the Battery

Disassembly
2 - 6 Removing the Battery
2.Disassembly
Removing the Battery
1. Turn the computer OFF and turn it over.
2. Remove screws - in Figure 2 - 1a and release the battery cover .
3. Separate the battery connector from the computer and pull the battery out.

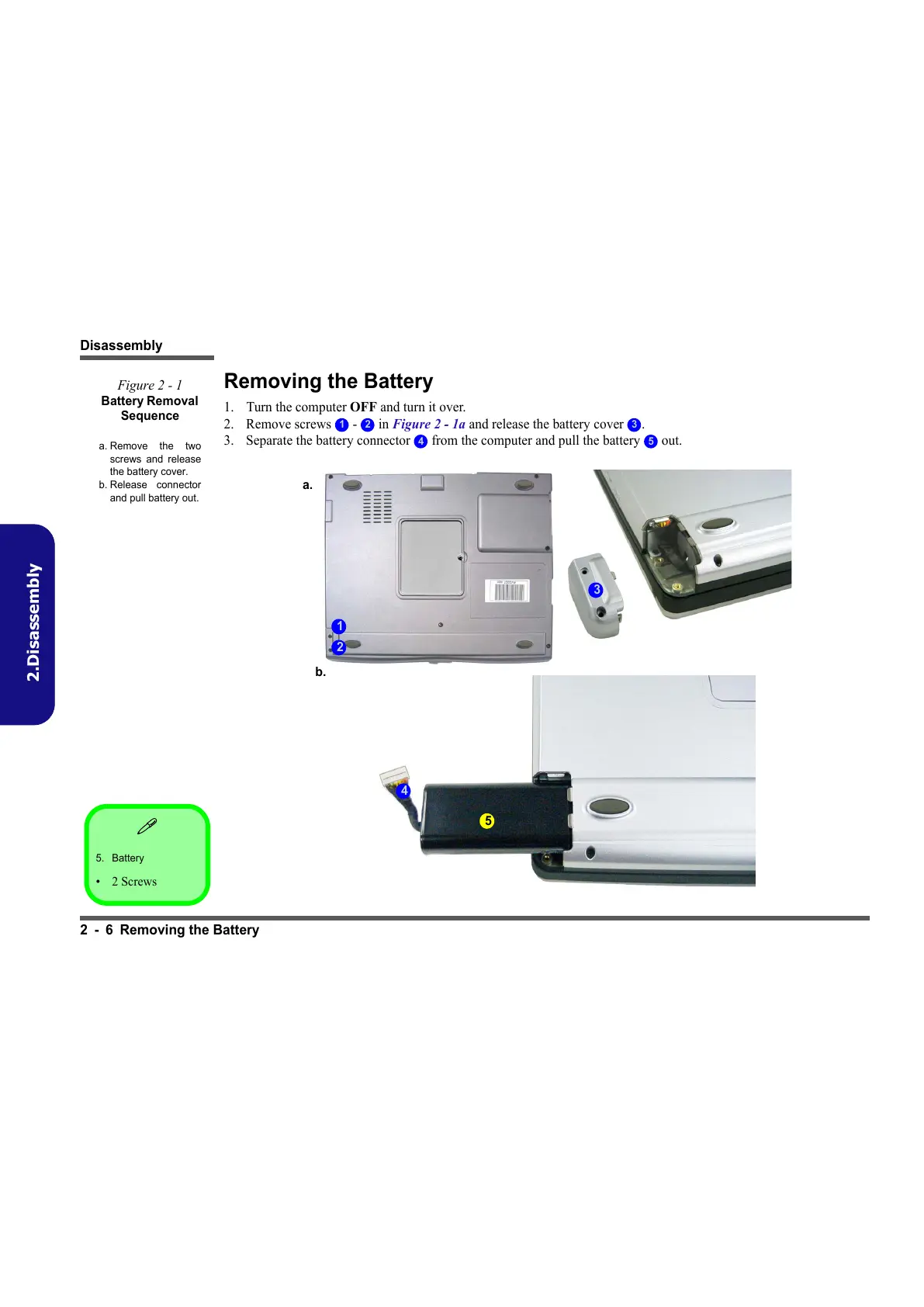

Figure 2 - 1
Battery Removal
Sequence
a. Remove the two
screws and release
the battery cover.
b. Release connector
and pull battery out.
1 2 3
4 5

5. Battery
•2 Screws
a.
b.
1
5
2
4
3
