EUROCOM M22ES - Disassembly Steps

Disassembly
2 - 4 Disassembly Steps
2.Disassembly

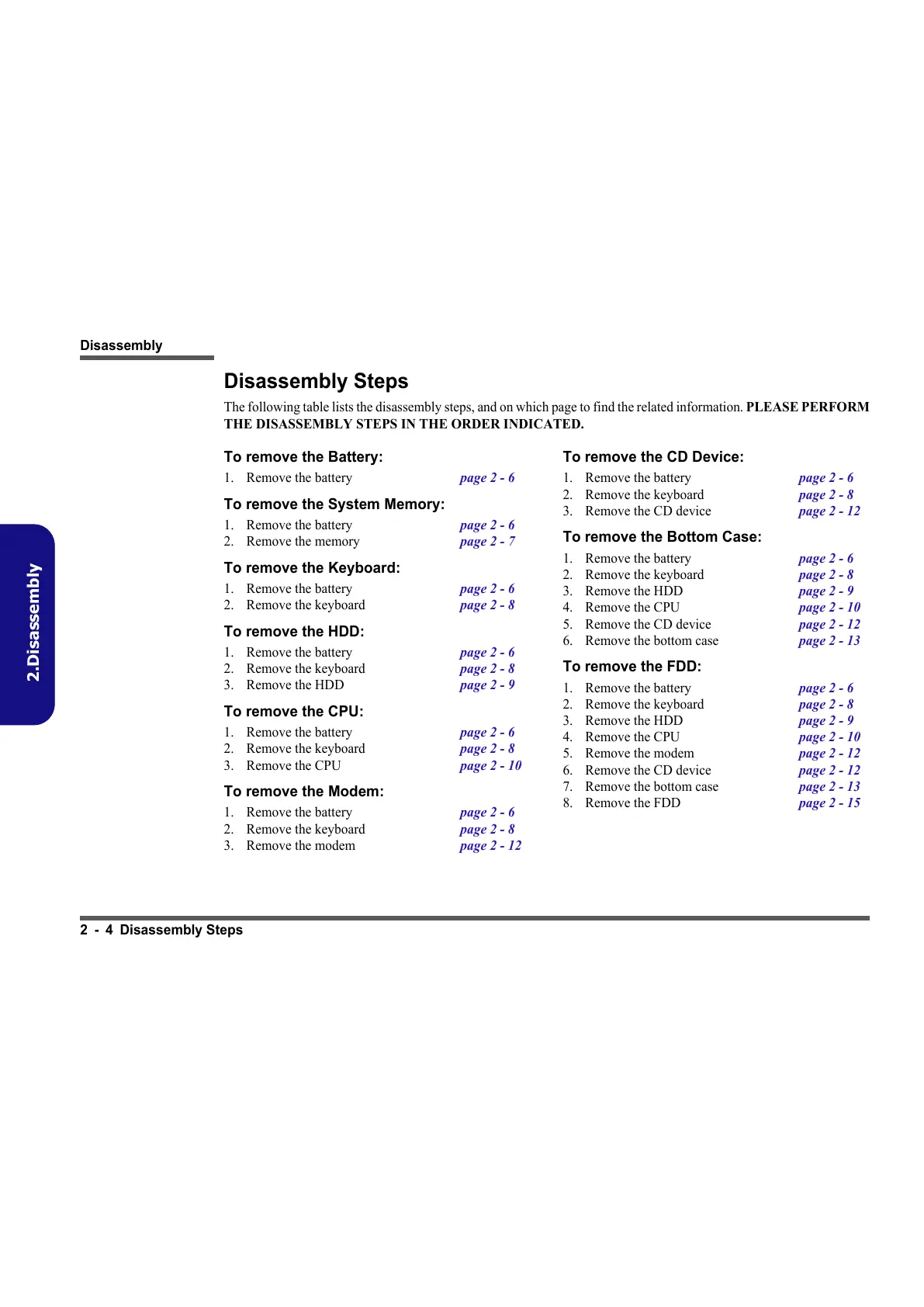

Disassembly Steps
The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM
THE DISASSEMBLY STEPS IN THE ORDER INDICATED.
To remove the Battery:
1. Remove the battery page 2 - 6
To remove the System Memory:
1. Remove the battery page 2 - 6
2. Remove the memory page 2 - 7
To remove the Keyboard:
1. Remove the battery page 2 - 6
2. Remove the keyboard page 2 - 8
To remove the HDD:
1. Remove the battery page 2 - 6
2. Remove the keyboard page 2 - 8
3. Remove the HDD page 2 - 9
To remove the CPU:
1. Remove the battery page 2 - 6
2. Remove the keyboard page 2 - 8
3. Remove the CPU page 2 - 10
To remove the Modem:
1. Remove the battery page 2 - 6
2. Remove the keyboard page 2 - 8
3. Remove the modem page 2 - 12
To remove the CD Device:
1. Remove the battery page 2 - 6
2. Remove the keyboard page 2 - 8
3. Remove the CD device page 2 - 12
To remove the Bottom Case:
1. Remove the battery page 2 - 6
2. Remove the keyboard page 2 - 8
3. Remove the HDD page 2 - 9
4. Remove the CPU page 2 - 10
5. Remove the CD device page 2 - 12
6. Remove the bottom case page 2 - 13
To remove the FDD:
1. Remove the battery page 2 - 6
2. Remove the keyboard page 2 - 8
3. Remove the HDD page 2 - 9
4. Remove the CPU page 2 - 10
5. Remove the modem page 2 - 12
6. Remove the CD device page 2 - 12
7. Remove the bottom case page 2 - 13
8. Remove the FDD page 2 - 15
